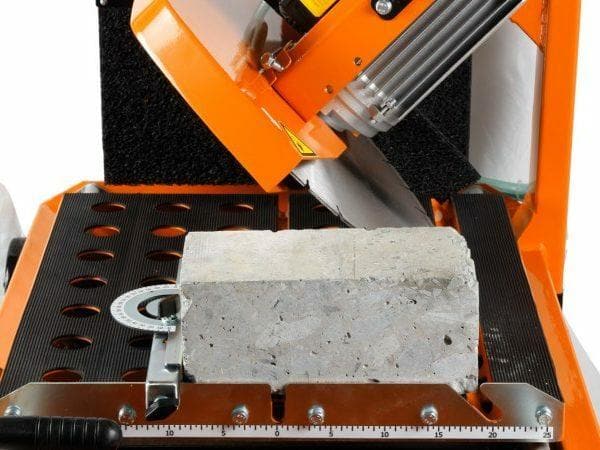

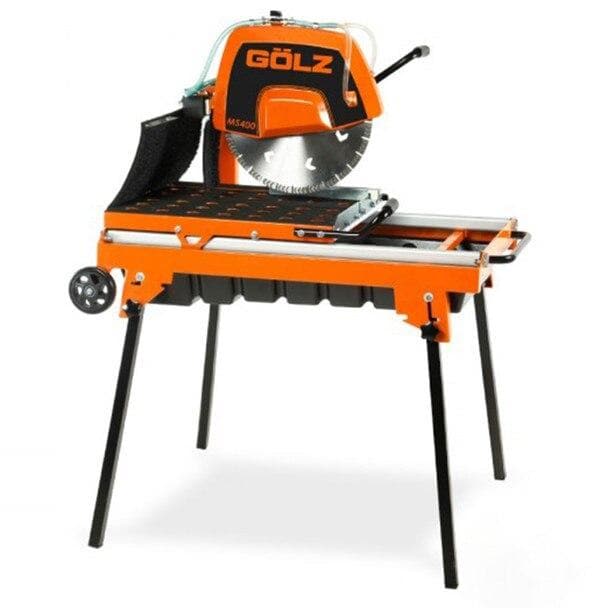

Compact and versatile masonry saw featuring a 45-degree tilting head
MS400 - Cutting length of 27 inches (700 mm). Blade size is 16 inches (400 mm), and cut depth reaches 5 3/8 inches (137 mm).
- Large cutting table: 23 5/8 inches (600 mm) in diameter and 20 7/8 inches (530 mm) wide

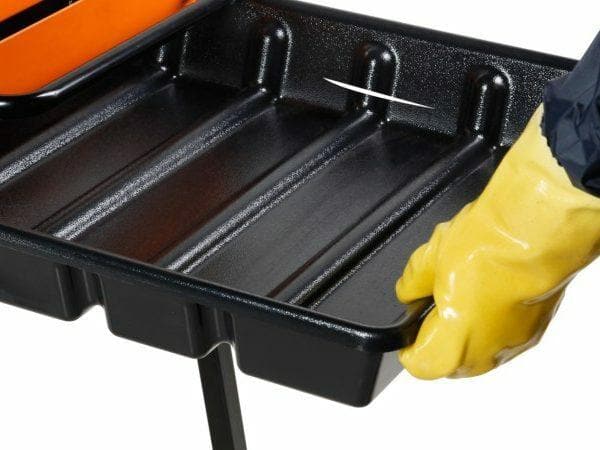

- Removable water tub for easy cleaning
- Foldable legs for convenient storage
- Electric water pump with quick coupling for easy pump replacement
- Maximum cutting length up to 31 1/2 inches (800 mm)
- Removable blade guard for hassle-free blade changes
- Special water nozzle for optimal water cooling

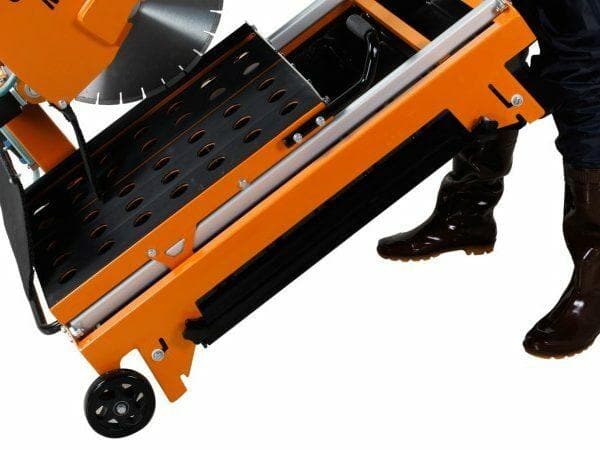

- Transport wheels for easy movement
Requires a dedicated 20 Amps power supply.
Specifications
| GÖLZ MS400 |
| Motor | Electric, 110V, 50Hz, IP54 20A |
| Power | 2.2 kW / P1 (3PS) |
| Max. cutting depth | 5 3/8 inches (137 mm) |
| Max. blade size | 16 inches (400 mm) |
| Arbor hole | 1 inch (25.4 mm) |
| Cutting length | 27 inches (700 mm) |
| Shaft speed | 2800 min-1 |
| 45° miter-cut | Built-In |
| Water pump | S2, 110V, 50 Hz, 55Watt 20A |
| Blade flange size | 5 3/8 inches (90 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 23 5/8 inches (600 mm) in diameter and 20 7/8 inches (530 mm) wide |
| Dimensions: (LxWxH) | 43 1/4 inches (1100 mm) in length, 28 3/8 inches (720 mm) in width, and 50 3/4 inches (1290 mm) in height |
| Weight | 145 lbs (66 kg) |
| Manufacturer-Nr. | 0289 400 1000 |
Accessories
| Spare water pump with connector plug | 0289 400 9002 |
| Set of Transport wheels | 0289 400 9068 |
Using the Golz MS400 Masonry Saw is straightforward. First, make sure it's connected to a dedicated 20 Amps power supply. You can then adjust the cutting length as needed, with a maximum of up to 31 1/2 inches. The 45 - degree tilting head allows for angled cuts easily. When it comes to the blade, changing it is simple thanks to the removable blade guard. Just follow the standard safety procedures when handling the blade. The water tub is removable, so after each use, take it out and clean it to keep the saw in good condition. The electric water pump has a quick - coupling feature, which makes it easy to replace if needed. The saw also has foldable legs, so you can store it conveniently when not in use. And with the transport wheels, moving it around the worksite is a breeze. Remember to regularly check the blade for wear and tear, and keep the water nozzle clean to ensure optimal water cooling. Also, always follow the safety instructions in the manual when operating this saw.
