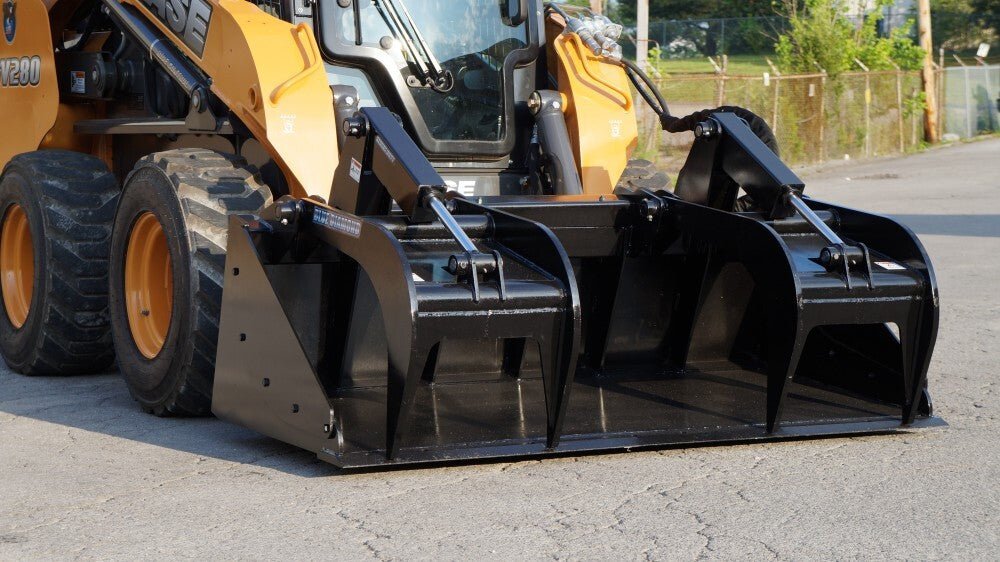

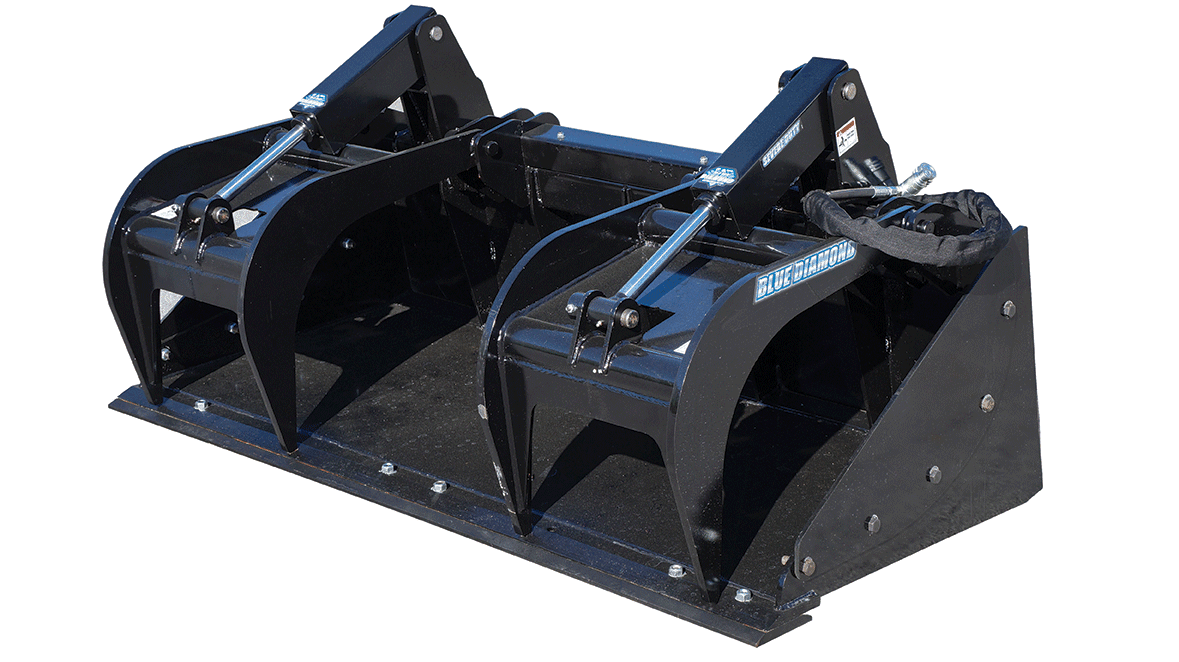

This Blue Diamond® Skid Steer Grapple Bucket is built for severe duty, based on years of feedback from demolition contractors and recyclers. The severe - duty model combines features from the demolition series, like our Extreme Duty model, with new ones, making it one of the most effective and durable grapple buckets in the industry. The bolt - on sides are handy, allowing you to hold more material or remove them when dealing with long items such as pipes or trees. It's highly recommended for rentals. Features include no - pinch hose routing, bolt - on sides, 3/4″ top tines, and heavily reinforced top clamps. Applications cover demolition, recycling, transfer stations, tree work, wood processing, and industrial use. Part numbers and specifications are as follows: 106429 (60” Grapple Bucket, Severe Duty, 10.26 CU FT, 905 lbs.), 106444 (66” Grapple Bucket, Severe Duty, 11.07 CU FT, 1139 lbs.), 106454 (72” Grapple Bucket, Severe Duty, 11.88 CU FT, 1179 lbs.), 106457 (72” Grapple Bucket, Severe Duty W/Teeth, 11.88 CU FT, 1066 lbs.), 410464 (78” Grapple Bucket, Severe Duty, 12.69 CU FT, 1210 lbs.), 106476 (84” Grapple Bucket, Severe Duty, 14.04 CU FT, 1227 lbs.). There are also a manual and spec sheet available for this severe - duty grapple bucket.
Using the Blue Diamond® Skid Steer Grapple Bucket is straightforward. First, make sure it's properly attached to your skid steer. When picking up materials, adjust the grapple according to the size and shape of the items. For small materials, keep the bolt - on sides on to contain them. When dealing with long items like pipes or trees, you can remove the sides. Be careful during operation, especially when using the teeth - equipped model. Avoid overloading the bucket as it can affect the lift capacity and cause damage. Regularly check the no - pinch hose routing to ensure there are no kinks or leaks. Inspect the 3/4″ top tines and heavily reinforced top clamps for any signs of wear or damage. Clean the bucket after each use to prevent debris from building up. If you notice any issues, refer to the severe - duty grapple bucket manual or spec sheet for further guidance.
