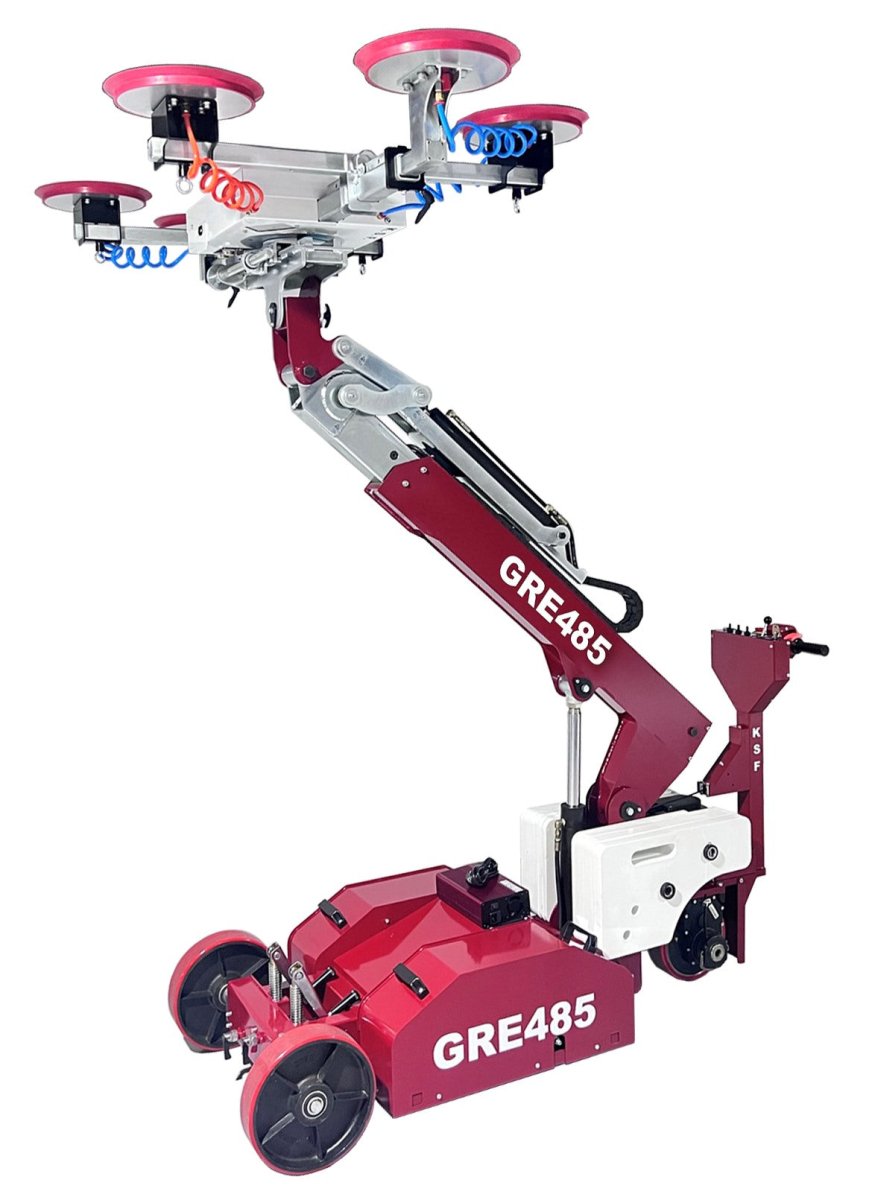

The GRE 485 electric glass robot makes moving, lifting, and installing large glass panels or windows a breeze.
| Spec/Model | GRE485 |
| Max. Load Capacity | 1100 LBS (485KG) |
| Lifting Capacity (Full Extended) | 420 LBS (190 KG) |
| Weight | 1700 LBS (770 KG) |
| Lifting Height (Vertical) | 7' 10' (328 CM) |
| Lifting Height (Overhead) | 7' 10' (328 CM) |
| Side Shift | 4.7' (120 MM) |
| Auto Drive | 3.1 MPH (5KM/H) |
| Suction Cup | 6PCS x 10' (25.4CM) |
| Vacuum System | Dual Pump System |
| Battery | 2 PCS x 12 V, 80 AMP |
1. Auto-drive speed: At 3.1mph (5 km/h), the GRE485 quickly moves glass panels around the jobsite. The safety stop detector ensures fast halts for better safety.
2. Tip-over alarm system: This key safety feature shuts off the operation automatically when a tip-over is detected.
3. Hydraulic system control: It offers precise speed control for lifting, lowering, and telescoping the boom, ideal for heavy and delicate glass.
4. Full boom extended capacity: Reaches up to 420 lbs (190 kg).
5. Suction cups: Six standard pneumatic suction cups provide a secure grip during transport and installation.
6. Adjustable base design: Extends from 30' (760mm) to 43' (1090 mm) for more stability.
7. Maneuverability: Precise angle control and speed adjustment help with positioning large, fragile glass panels and reduce damage risk.
8. Pneumatic cradle: Allows 4.7' (120 mm) of side-shift.
9. Compact design: Easily navigates through narrow spaces, perfect for confined job sites.
Using the GRE 485 electric glass robot is straightforward. First, make sure the battery is fully charged. You can then use the auto - drive feature to move it around the jobsite at a speed of 3.1mph (5 km/h). When lifting glass panels, use the hydraulic system to control the lifting, lowering, and telescoping of the boom precisely. The six suction cups will hold the glass securely. Be aware of the tip - over alarm system. If it goes off, the operation will shut off automatically for your safety. Also, the safety stop detector can halt the robot quickly when needed. For maintenance, regularly check the battery and make sure it's in good condition. Inspect the suction cups for any signs of wear and tear. Keep the hydraulic system well - lubricated. Remember, the adjustable base can be extended for more stability, and the compact design allows it to access tight spaces easily. Always adjust the maneuvering speed and angle carefully when working with large glass panels to avoid damage.
