Professional Cabinet Table Saw TS-1248P-52

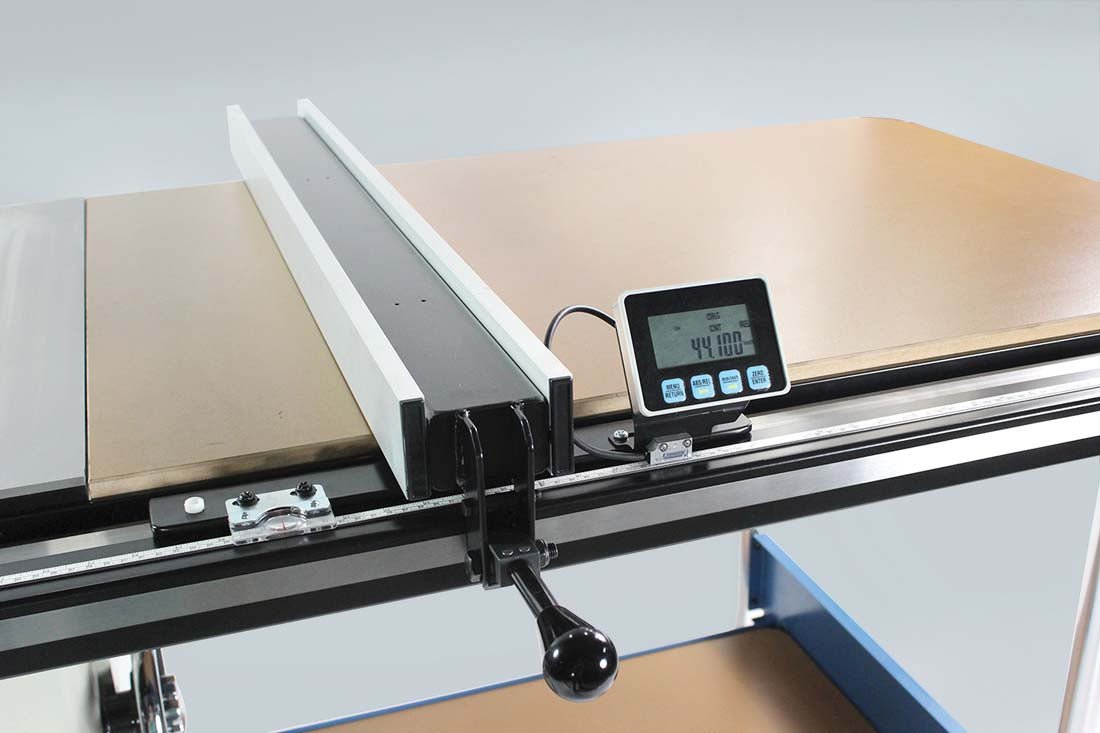

This outstanding industrial cabinet table saw is a powerhouse for your woodworking needs. It features an all - steel base attached to a large, vibration - reducing trunnion, enabling it to cut thousands of feet of board each day. You can order this high - end professional table saw from Baileigh Industrial. Key Features: - It has a 52” right - side rip capacity, perfect for handling long materials. A 36” rip capacity version is also available. - Powered by a 5 hp motor running at 3600 rpm, it's both powerful and efficient. - Accepts standard 12” blades with a 1” arbor that can tilt 45° to the left. - Runs on 220 - volt single - phase power, so it can work almost anywhere. - Comes with a 48” x 30” work table and 52” extensions. Both the saw and extensions are made of precision - ground cast iron. - The table surface stays square due to its webbed or criss - cross bottom design that meshes with the base. It won't warp from heat or moisture and has a smooth finish for easy wood sliding. - The rip fence has a digital readout (DRO) for rip capacity. Just zero it at the blade for perfect, repeatable cuts. - Steel handwheels on the base adjust blade height and miter angle. A rack and pinion mechanism makes blade movement easy. - There's a simple miter gauge on the tabletop and a DRO for the bevel angle on the base for better repeatability. - The massive steel trunnion attached to the base keeps the machine stable and within safe noise levels. The rigid all - steel base maintains alignment and minimizes vibrations. - A dust shroud inside the machine collects sawdust and funnels it to the 4” port. Just connect an extraction system. - It's CSA - approved and comes with a 4 - piece safety blade guard with anti - kickback reverse teeth, as well as a splitter and riving knife. - This professional table saw and its replacement parts are usually in stock for fast delivery. It's covered by a 1 - year parts warranty, and our experienced team offers lifetime technical support by phone. We also offer a 36 - inch capacity professional cabinet table saw. Specifications: - Item Number: TS - 1248P - 52 - Shipping Weight: 890lbs - Table Size (Length): 24.4' - Table Size (Width): 30.7' - Table Saw Working Table: 64.4' x 30.7' - Table Saw Blade Diameter: 12' - Table Saw RPM: 3600 - Table Saw Arbor: 1' - Table Saw Cutting Height @ 90°: 4' - Table Saw Cutting Height @ 45°: 2 - 3/4' - Maximum Dado Diameter: 8' - Maximum Dado Width: 13/16' - Maximum Rip Cut (Right): 52' - Power: 220V Single Phase - Horse Power: 5 - Weight (lbs): 700 - Shipping Dimensions (Inches): 60x44x54 & 98x36x13 * Specifications subject to change without notice.

Using Your Table Saw: 1. First, make sure the saw is connected to a 220 - volt single - phase power source. It can work almost anywhere, but always use a proper electrical outlet. 2. Before starting, adjust the blade height and miter angle using the steel handwheels on the base. The rack and pinion mechanism makes it easy to move the blade up and down. 3. If you need to make rip cuts, use the rip fence with the digital readout (DRO). Zero the DRO at the blade for accurate and repeatable lengths. 4. For bevel cuts, use the DRO on the base and the miter gauge on the tabletop. Safety Precautions: 1. Always wear safety goggles and ear protection when operating the saw. 2. Make sure the 4 - piece safety blade guard with anti - kickback reverse teeth is in place. Also, use the splitter and riving knife to prevent pinching or twisting of the wood. 3. Keep your hands away from the blade at all times. Maintenance Tips: 1. Regularly clean the dust shroud inside the machine. Connect an extraction system to the 4” port to collect sawdust and keep the machine clean. 2. Check the table surface for any signs of wear or damage. If it loses its shine, you can polish the cast - iron table to restore it. 3. Periodically check the alignment of the blade and the base to ensure accurate cuts. 4. If you need replacement parts, they are usually in stock for fast delivery. And remember, our team is available for lifetime technical support by phone if you have any questions.
