Mini Angle Broom – Heavy Duty Series 2

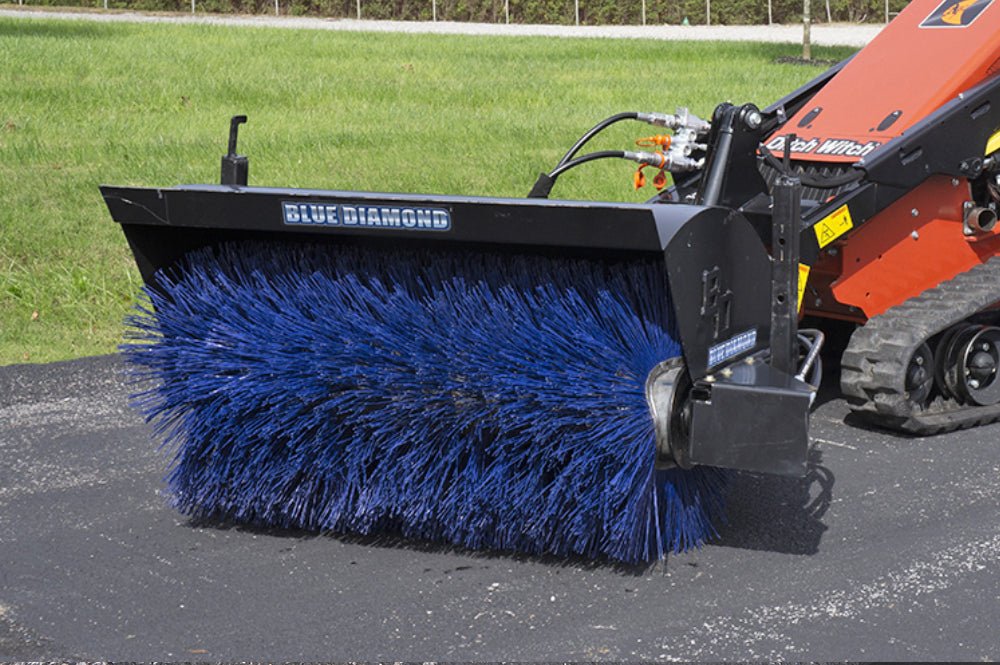

The Blue Diamond® Mini Angle Broom is a compact version of our original angle broom. It features heavy-duty bearings, frame, and motor. The bidirectional motor enables debris sweeping whether you're moving forward or in reverse. With a manual or hydraulic angle adjustment, you can precisely direct debris to where you need it.

Features

• Available in 36", 48", or 60" widths
• 26" bristles
• Choose from steel, poly, or poly/steel bristles

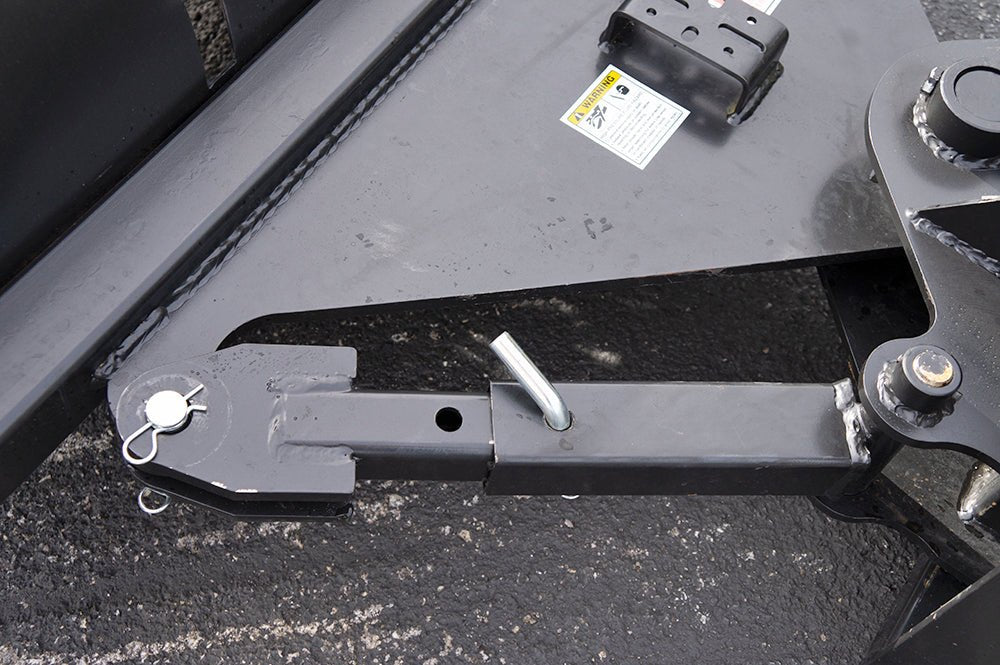

• 3 - position manual or hydraulic angle
• Stands to protect bristles when not in use
• Minimum 12 GPM flow range
• 1 - year warranty
• Mounts fit most machines

Product Specs

PART NUMBER	MODEL	WEIGHT
116180	36' Hydraulic Angle	495 lbs.
116182	36' Manual Angle	495 lbs.
116200	48' Hydraulic Angle	564 lbs.
116202	48' Manual Angle	564 lbs.
116205	60' Hydraulic Angle	760 lbs.
116207	60' Manual Angle	760 lbs.

MINI ANGLE BROOM SPEC SHEET

Using the Blue Diamond® Mini Angle Broom is easy. First, choose the right width for your needs - 36", 48", or 60". Then, select the bristle type, whether it's steel, poly, or poly/steel. When you start using it, the bidirectional motor allows you to sweep debris while moving forward or in reverse. You can adjust the angle manually or hydraulically to direct the debris where you want it. When not in use, make sure to use the stands to protect the 26" bristles. The broom requires a minimum 12 GPM flow range, so ensure your machine meets this requirement. Also, remember that it comes with a 1 - year warranty. For maintenance, regularly check the bristles for wear and tear. If any parts need replacement, refer to the product spec sheet for the correct part numbers. And since the mounts fit most machines, you can easily attach and detach it as needed.
