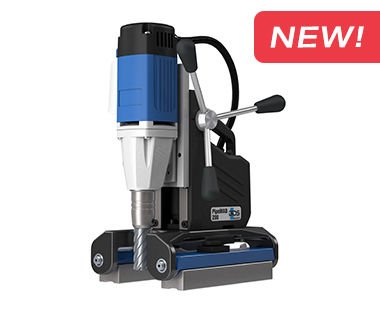

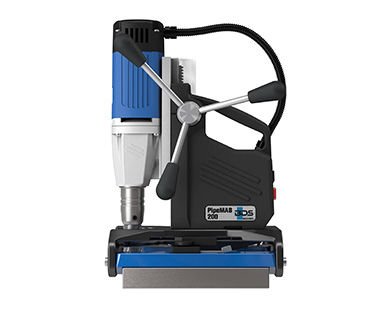

Powerful Magnetic Drill for Pipes: Drill Holes Up to 1 - 3/8 Inches in Diameter
The brand - new PipeMAB magnetic drills are a game - changer, slashing the time and effort needed to drill in pipes. Fitted with a patented swivel magnetic clamping system, PipeMAB models can drill on pipes with an outer diameter of 3 inches (85mm) and larger, inner pipe walls, as well as flat and curved surfaces. Its two permanent magnets offer a strong clamping force, allowing for excellent flexibility when adhering to ferrous materials as thin as 9/64 inches.
Features & Benefits:
- Flexibility: Perfect for drilling on pipes, flat, and curved surfaces
- Increased Safety: Highly stable, with the permanent magnet staying active even without electricity
- Strong Magnets: Can adhere to materials as thin as 9/64 inches (3 mm)
- Elongated Tool Holder: Maximizes the use of the pipe drilling machine's stroke
- Accuracy: The two - magnet system lets the magnetic drill swing away for debris clearing and hole inspection
- Maneuverability: Weighing only 35 lbs and equipped with a patented swing arm system, the PipeMAB 200 can be easily moved and adjusted
Features
| Motor Power | 8.2 Amp/110 Volt* (220 V model also available) |
|---|
| Weight | 35 lbs. |
|---|
| Stroke | 6 - 1/3 inches (3 - 1/3 inches with geared chuck) |
|---|
| Hole Capacity | 1 - 3/8 inches in diameter |
|---|
| Twist Drill Capacity | 1/2 inch in diameter |
|---|
| Speed | 450 RPM |
|---|
| Magnet Base Size | 10.5 inches L x 7.5 inches W x 3.5 inches H |
|---|
| Dimensions | 13.75 inches H x 10.5 inches L x 7.5 inches W |
|---|
| Magnetic Force (3/4 - inch Plate) | 2250 lbs. |
|---|
| Arbor Bore | 3/4 - inch Weldon Shank |
|---|
| Pipe Magnet System Equipped | Yes |
|---|
| Automatic Lubrication | Included |
|---|
More Info
PipeMAB 200 Overview (PDF)
Hydraulic Impact Wrenches Schematics (PDF)
Schematics: PipeMAB 200 (PDF)
Using the PipeMAB 200 is easy. First, find a suitable surface to drill on. It can be a pipe with an outer diameter of 3 inches or larger, an inner pipe wall, or a flat or curved surface. Make sure the surface is clean and free of debris. Then, turn on the drill and let the powerful permanent magnets hold it firmly in place. You don't have to worry about it losing power during operation because the magnets stay active even without electricity. When drilling, the elongated tool holder helps you make the most of the machine's stroke. If you need to clear debris or check the hole, just use the two - magnet system to swing the drill away. After use, clean the drill to remove any metal shavings or dirt. You can use a brush or a clean cloth. Also, keep the drill in a dry place to prevent rust. If you notice any problems or abnormal noises during operation, stop using the drill immediately and refer to the schematics or overview PDF for troubleshooting.
