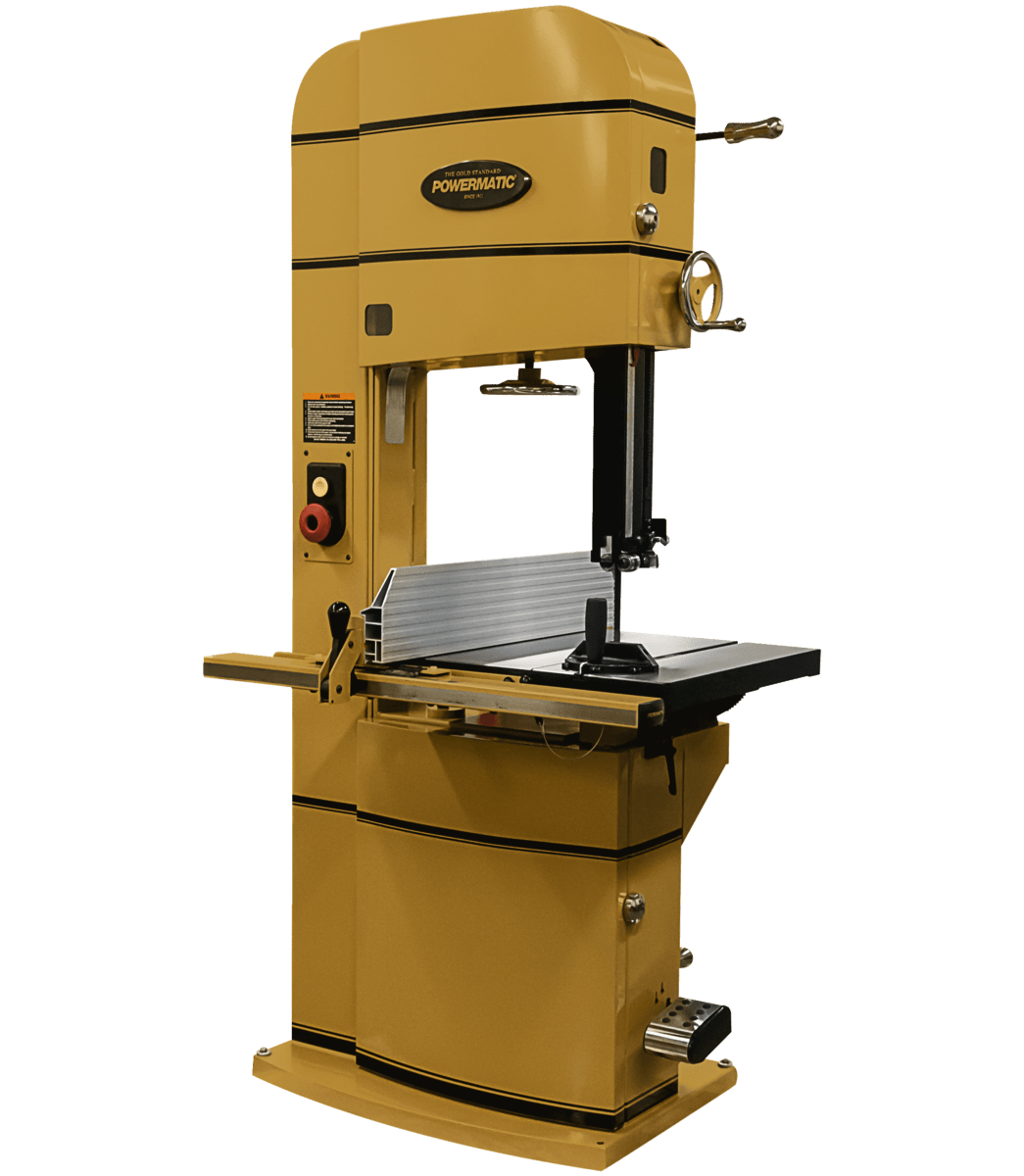

At Powermatic, we know ambition fuels progress. Every product we make aims to empower woodworkers. Craftsmen worldwide are constantly pushing their creative limits, challenging us to offer top - notch tools. When redesigning our bandsaw line, we didn't just aim to meet their goals; we aimed to surpass them. Larger projects need more power, resaw capacity, and cast iron. This bandsaw has the legendary quality, precision, and attention to detail that have been helping woodworkers for over ninety years.
### Features
- Blade tension release with electrical interlock: Prevents the bandsaw from starting when the blade is detensioned, ensuring safety.
- Exclusive Powermatic T - square style Accu - Fence®: Maximizes accuracy and safety, and is fully adjustable for blade alignment and table squaring.
- Heavy - duty upper wheel support and tracking mechanism: Enables smooth operation.
- High - end blade guides with tool - less adjustment: Provides stability and boosts cut accuracy.
- Rack and pinion table tilt system: Allows for easy and accurate adjustments.

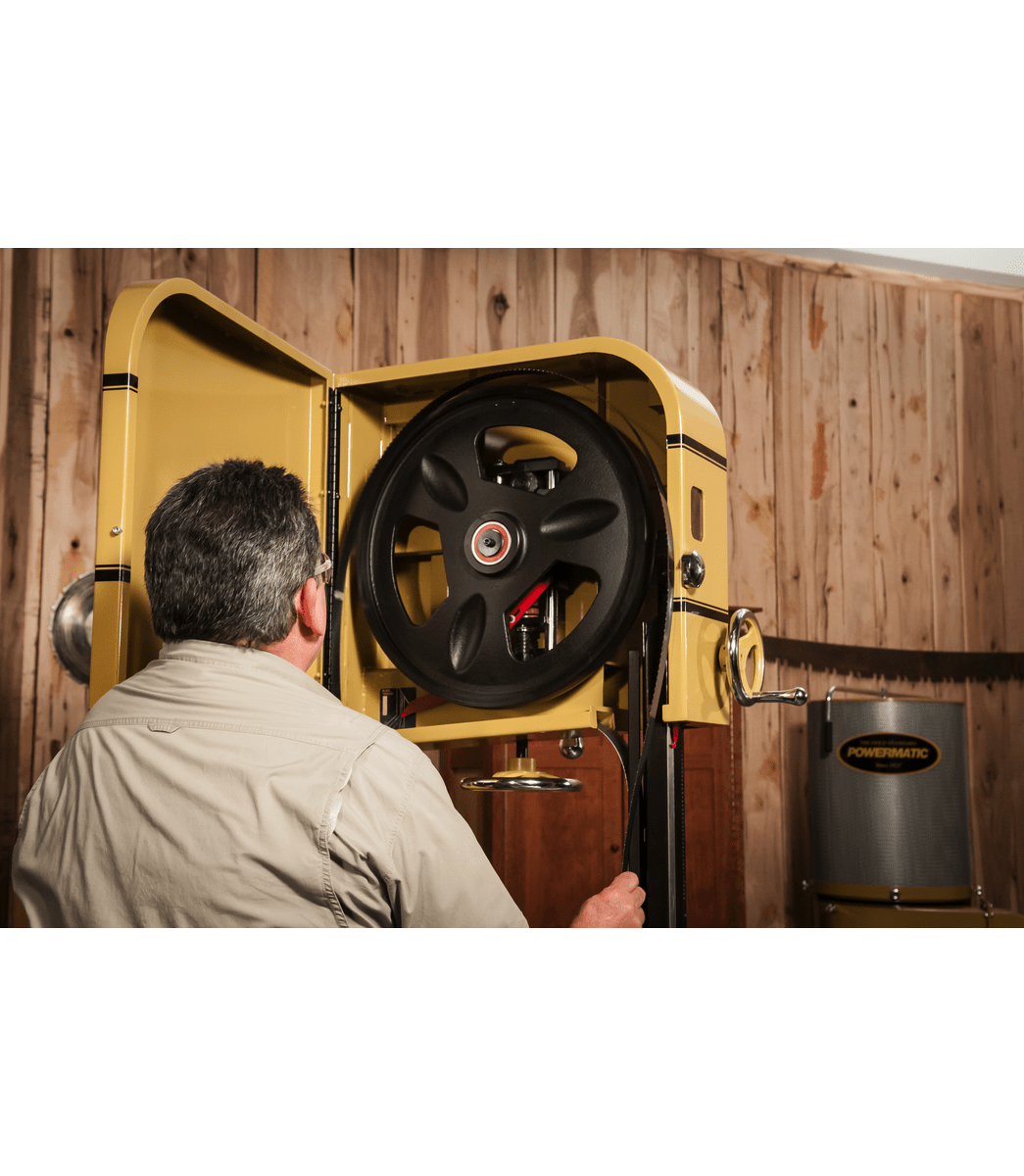

- Solid cast iron upper and lower wheels: Create the momentum needed for heavy resaw work.
- Sturdy cast iron table and trunnion assembly: Offers maximum rigidity for large workpieces.
### Specifications
| Specification | Details |
|--|--|
| Stock Number | 1791257B |
| Blade Length (In.) | 170 |
| Blade Speed (SFPM) | 2300/4400 |
| Cutting Capacity Height (In.) | 18 |
| Cutting Capacity Width (In.) | 20.0000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/4 |
| Motor Phase | 1 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Floor |
| Table Height from Floor (In.) | 36 |
| Table T - Slot (In.) | 3/4 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
Using your Powermatic PM2013B bandsaw is easy. First, make sure the blade is properly tensioned. You can use the blade tension release with electrical interlock to safely manage the blade tension. The exclusive Accu - Fence® helps you get accurate cuts. Just adjust it according to your needs for blade alignment and table squaring.
When it comes to table adjustments, the rack and pinion system makes it a breeze. You can tilt the table easily and accurately for different cutting angles.
Now, for the safety part. Always check the blade tension before starting the bandsaw. The electrical interlock is there to prevent the saw from starting when the blade is detensioned. Also, ensure your workspace has proper dust collection. With a minimum CFM of 600 required, connect a good dust collector to the 4 - inch dust port.
For maintenance, keep the wheels clean. The solid cast iron upper and lower wheels are key for heavy resaw work, so make sure they're in good condition. The high - end blade guides with tool - less adjustment should be checked regularly for stability. And don't forget to lubricate the moving parts as recommended by the manufacturer. If you follow these steps, your bandsaw will serve you well for a long time.
