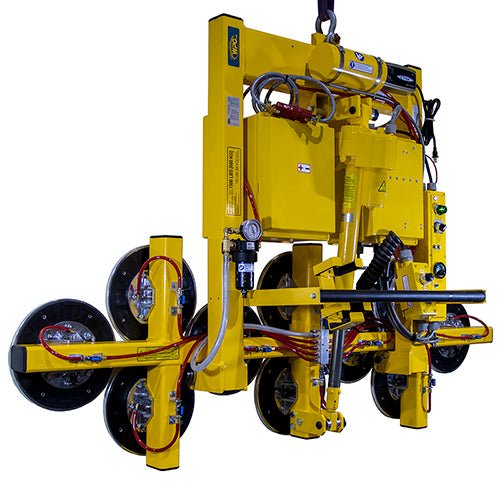

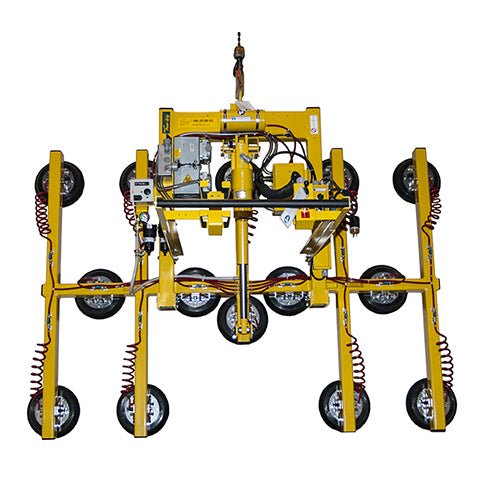

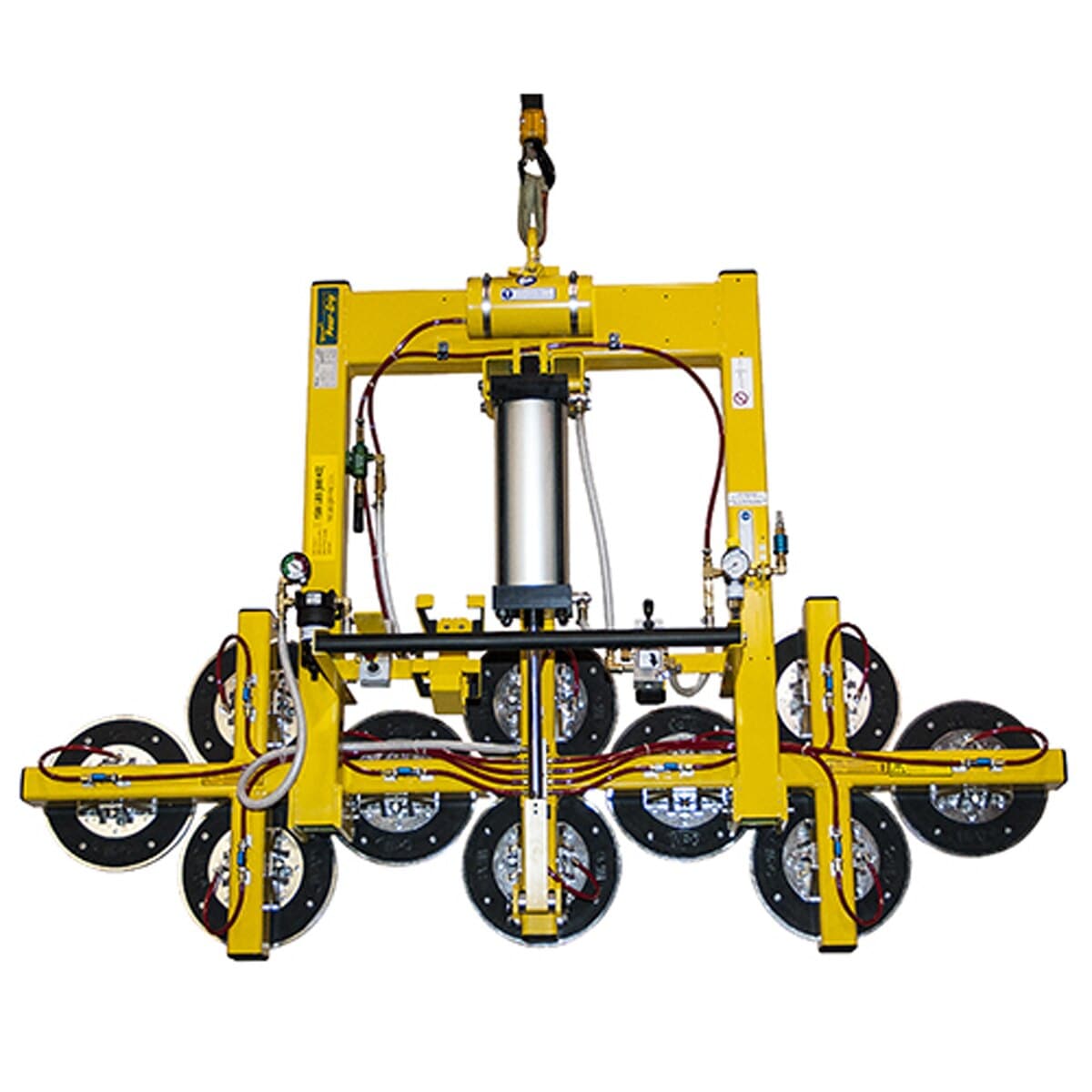

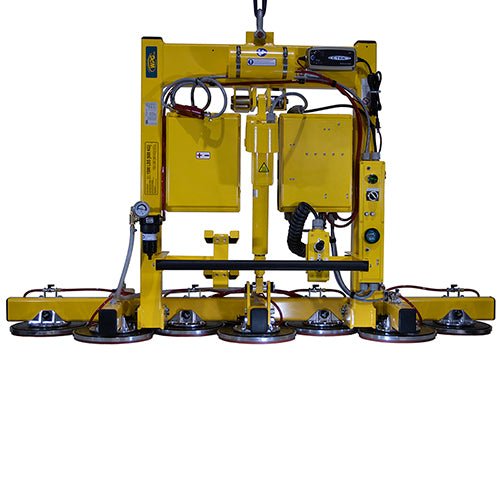

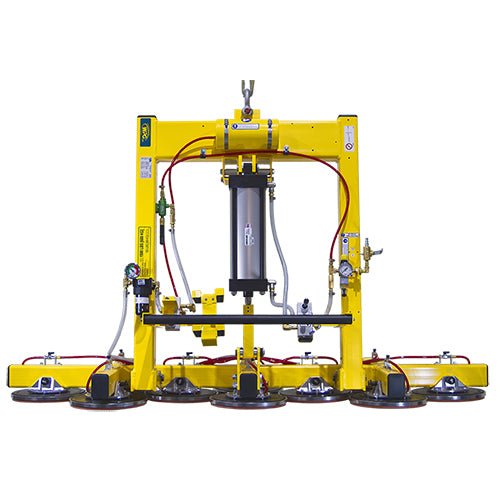

The Power Tilter, powered by air, is a great solution to lower the risk of load damage. This vacuum lifter offers easy power tilting and excellent support for stone and other high - density materials. It's made upon order. Here are the details: In the table, you can find different models. For example, the models like PT1410TAIR and PT1010TAIR are compressed - air powered with different max pad spreads. The PT1410TDC and PT1010TDC are mobile and battery - powered, while the PT1410TACS and PT1010TACS are corded and AC outlet powered (special order). The standard pad spread is 23 - 3/4' x 74 - 3/4' [60 cm x 190 cm]. There are 10 vacuum pads with a 10' [25 cm] diameter and replaceable sealing rings. The maximum load capacity is 1500 lbs [680 kg], and the lifter weighs 360 lbs [163 kg]. It operates on compressed air at 11 SCFM [311 liters/minute] @ 80 psi [552 kPa]. The apply and release times are about 10 seconds and 3 seconds respectively. It can power tilt 90° between upright and flat in about 8 seconds with continuous tilt duty. Standard features include a vacuum gauge, vacuum reserve tank, vacuum line filter, spring - mounted vacuum pads, individual shutoffs to all vacuum pads, flexible rubber pad rings, and blow - off for quick release. Warning: Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov.
Using the Power Tilter 1500 is straightforward. First, make sure the power source (air, DC, or AC depending on the model) is properly connected. When you're ready to lift, position the lifter over the load. The vacuum pads will start gripping the load in about 10 seconds. To release the load, it takes around 3 seconds. You can tilt the load 90° between upright and flat in about 8 seconds. Just keep in mind that the tilt function has continuous duty. As for maintenance, regularly check the vacuum gauge to ensure proper suction. Inspect the vacuum line filter and clean or replace it as needed. Also, check the replaceable sealing rings on the vacuum pads and change them if they're worn out. Remember, this product may cause cancer and/or reproductive harm, so follow all safety instructions on www.p65Warnings.ca.gov.
