Description

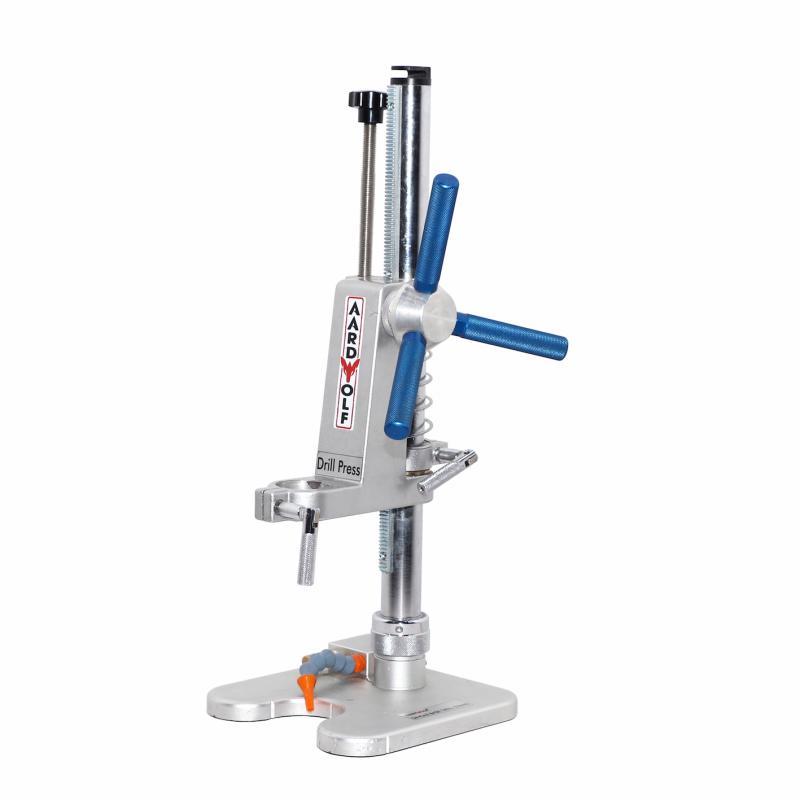

The DSA07 Drill Press is a top - notch tool for precision drilling. It offers multiple ways to apply vacuum. You can use compressed air, an optional battery - powered vacuum pump, or an electric vacuum pump. It features a sturdy 34mm round column with a 290mm long - toothed rack screwed on, ensuring stability during operation. An integrated return spring and locking button make series drilling a breeze. The adjustable scale ring allows you to set the drilling depth accurately, down to the last millimeter, and it comes with a cable holder. With a working height of 305mm and a drill support collar of ø 43mm, it's very practical. Its powerful integrated vacuum base enhances its functionality. Note that the drill stand is sold without a drill. Here are the specifications: In metric (mm - kg), the drilling bore size is 60mm, net weight is 6kg, vacuum base dimensions are 200x205mm, and packaging dimensions are 580x310x240mm. In imperial (inch - lb), the drilling bore size is 2.4', net weight is 13lb, vacuum base dimensions are 7.9'x8.1', and packaging dimensions are 22.8'x12.2'x9.4'.
Using the DSA07 Drill Press is easy. First, decide how you want to apply the vacuum - you can use compressed air, a battery - powered pump if you got the optional one, or an electric pump. Then, set up your workpiece. Use the adjustable scale ring to set the exact depth you need for drilling. The locking button helps you with series drilling, so you can drill multiple holes with the same settings. When you're done, turn off the power and any vacuum sources. Keep in mind that the drill stand doesn't come with a drill, so you'll need to use your own. For maintenance, regularly clean the drill press to remove dust and debris. Check the round column and long - toothed rack for any signs of wear. If you use the vacuum function a lot, make sure to maintain the vacuum pump according to its instructions.
