Speed Lock Ties

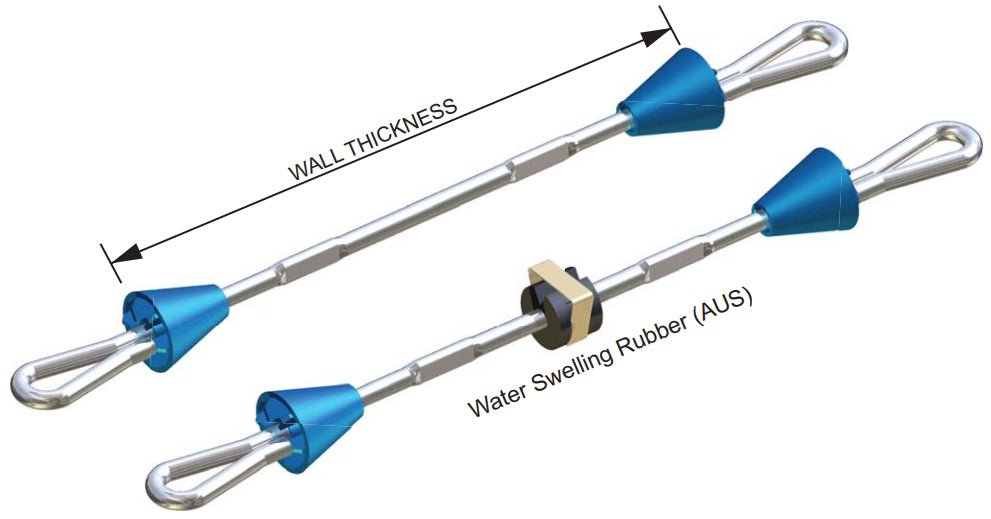

OCM Speed Lock Ties are essential for building wood forming. They work well with standard ¾” ply form, using 2x4’s for walers and stiff backs. These ties have a self - centering cone that can handle imperfect alignment and lumber size differences without affecting break - back. Available in standard and custom sizes, they have a 2250# safe working load (2:1 safety factor). You can adjust the tie pattern and pour rate as per your job needs. They only require a 13/16th hole. Compared to other wood - based hand - set systems, they use less lumber and need less nailing. They can adapt to most wall forming systems and are great for radius forming. Here are the product details: | OCM Part No. | Wall Size | Weight per each lbs. | Safe Working Load lbs. | | --- | --- | --- | --- | | SLT - 06B | 6' | 0.21 | 2,250 | | SLT - 07B | 7' | 0.22 | 2,250 | | SLT - 08B | 8' | 0.23 | 2,250 | |... |... |... |... | | SLT - 60B | 60' | 0.80 | 2,250 |

Using OCM Speed Lock Ties is easy. First, select the right size tie for your wall. The product comes in a range of standard sizes, and you can also get custom - made ones. Drill a 13/16th hole where you need to install the tie. The self - centering cone helps in quick and easy installation, even if the lumber isn't perfectly aligned. When using, adjust the tie pattern and pour rate according to your specific job requirements. Remember, the safe working load of these ties is 2250 lbs with a 2:1 safety factor. As for maintenance, keep them clean and dry when not in use. If you notice any signs of damage, don't use the tie and replace it immediately. Also, since they use less lumber and nailing, you'll save time and effort during the building process. They are adaptable to most wall forming systems, so you can use them in different projects. They are especially good for radius forming jobs.
