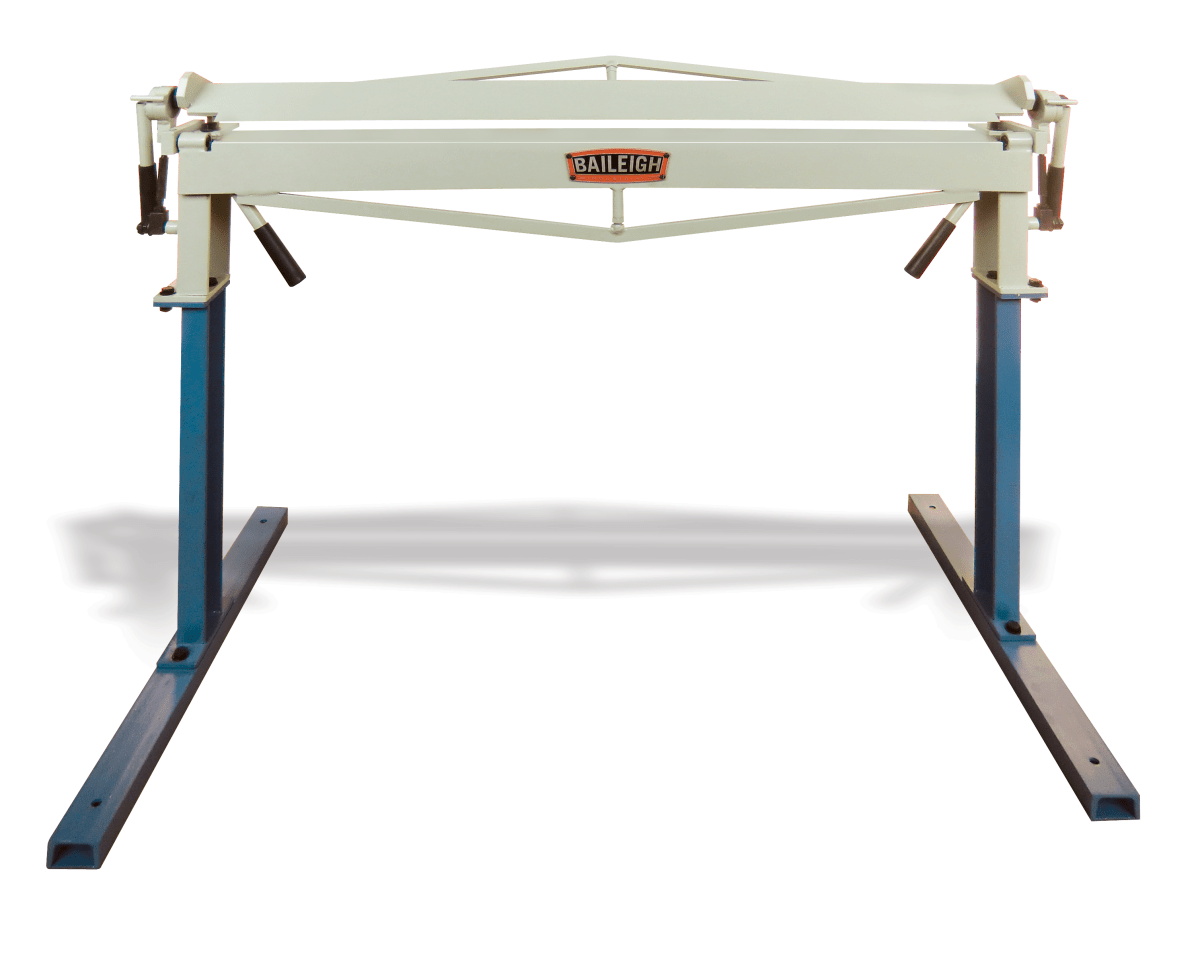

Straight Hand Brake - Hbr-4820

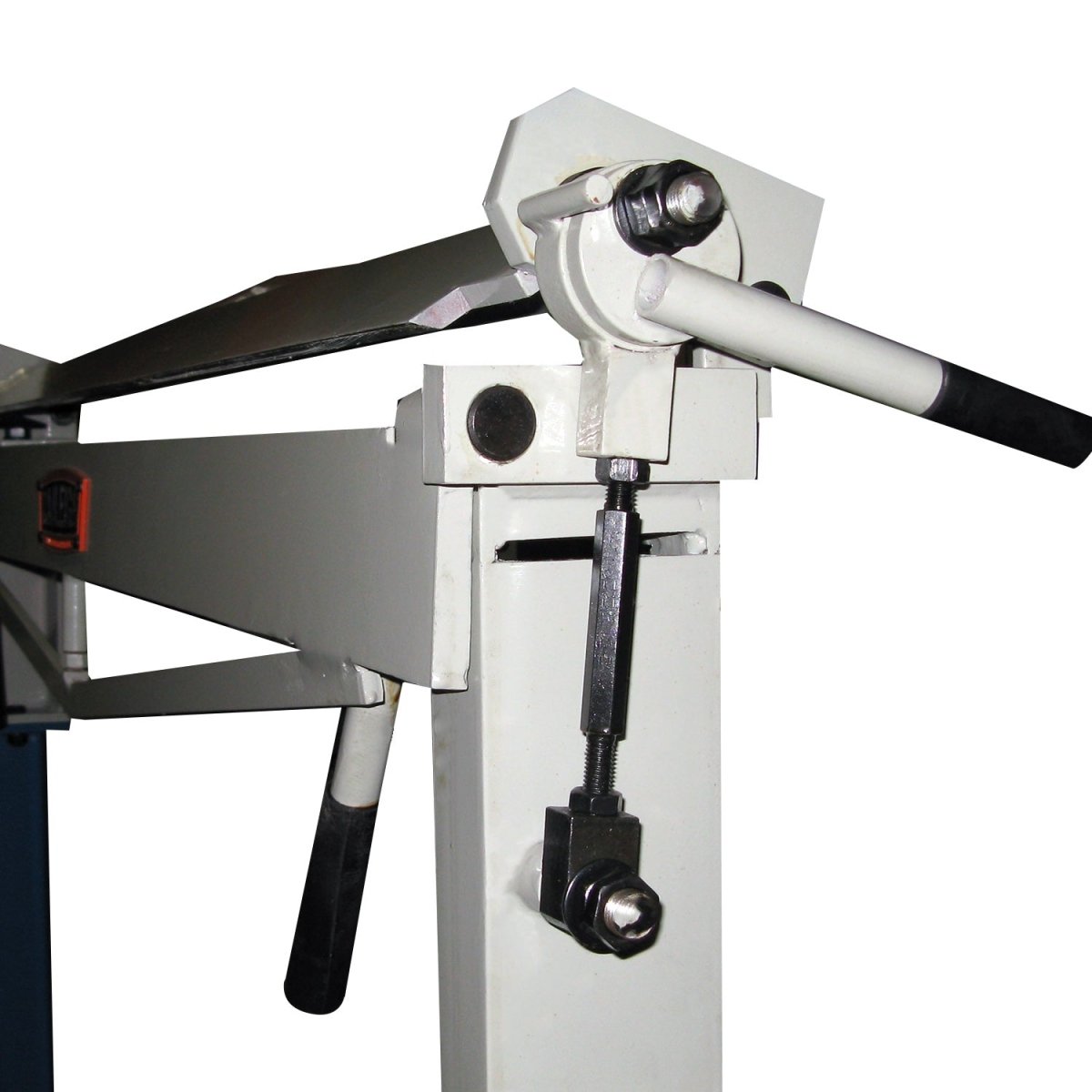

This amazing industrial sheet metal bender is perfect for bending light - gauge materials. Unlike larger metal brakes, it doesn't have that awkward length. It has a maximum capacity of 20 gauge mild steel and 18 gauge aluminum. Measuring 48 inches (4 feet) long, it can bend at full capacity across the entire length. It can achieve a bend angle of up to 120°. The right and left cam lever arms precisely clamp the material, and you can adjust the clamping pressure for more delicate jobs. With a fully - welded steel plate construction and support trusses on top and bottom, it maintains rigidity and gives accurate results for years. Baileigh offers a 1 - year parts warranty and lifetime technical support by phone. Recommended for any fabrication shop doing light - duty sheet metal bending. Item Number: HBR - 4820, Thickness (SS): 20 ga., Bend Angle: 0 - 120°, Power: Manual, Shipping Weight: 205lbs, Shipping Dimensions (Inches): 61x24x22. Note: specifications subject to change without notice.

Using this industrial straight hand brake is quite simple. First, place the light - gauge material you want to bend between the clamping arms. Use the right and left cam lever arms to precisely clamp the material. You can adjust the clamping pressure if you're working on something delicate. Once the material is securely clamped, start bending it to your desired angle, up to 120°. Remember, this brake has a maximum capacity of 20 gauge mild steel and 18 gauge aluminum, so don't try to bend materials thicker than that. When it comes to maintenance, keep the brake clean from dust and debris. Check the welded parts and support trusses regularly to ensure they're still in good condition. If you run into any problems, you can always call Baileigh for lifetime technical support, and they'll help you out. Also, be aware that the specifications of this product may change without notice.
