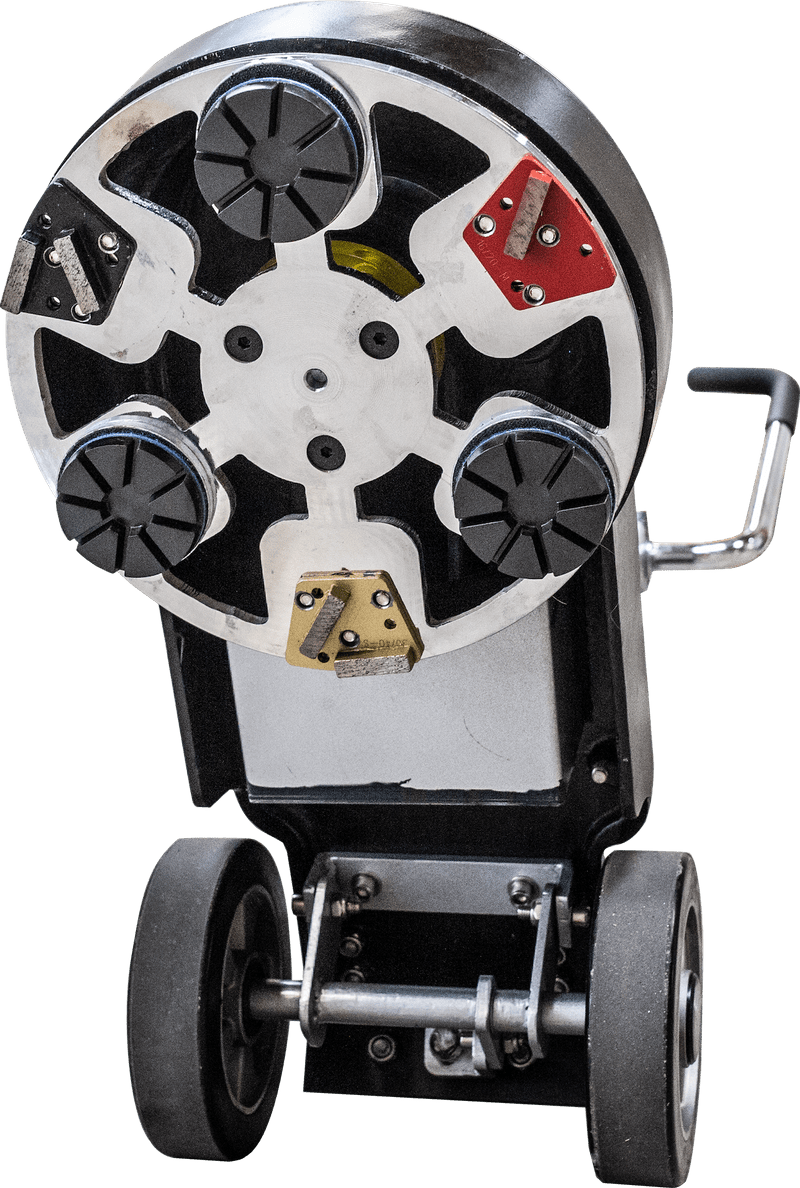

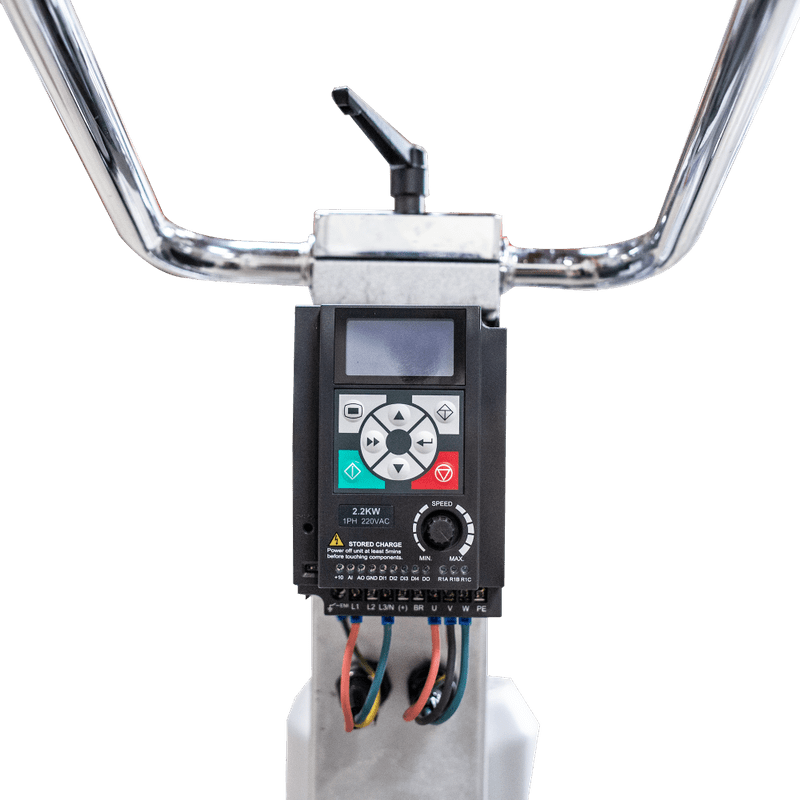

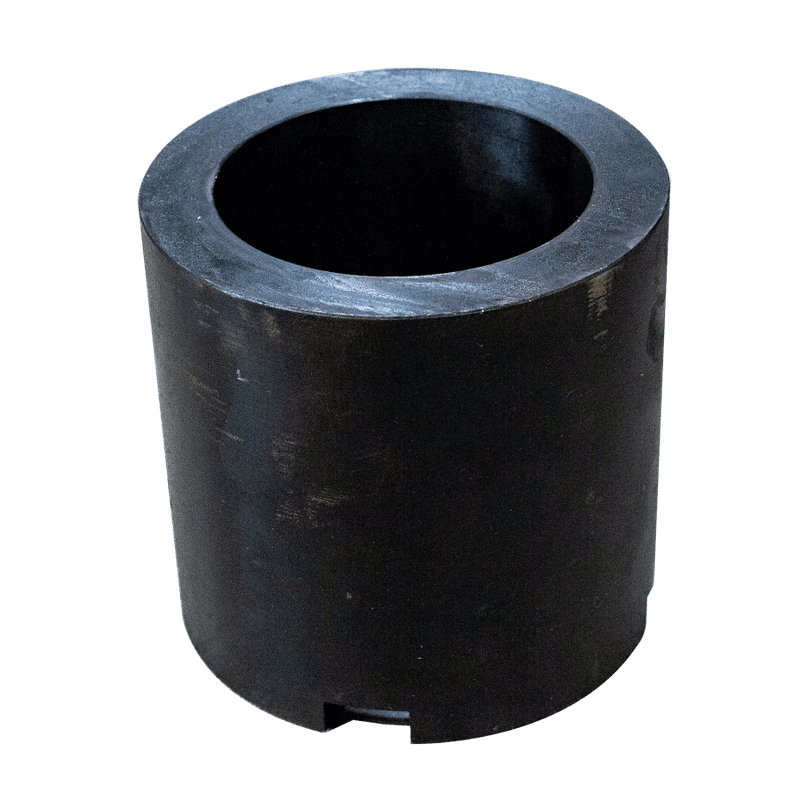

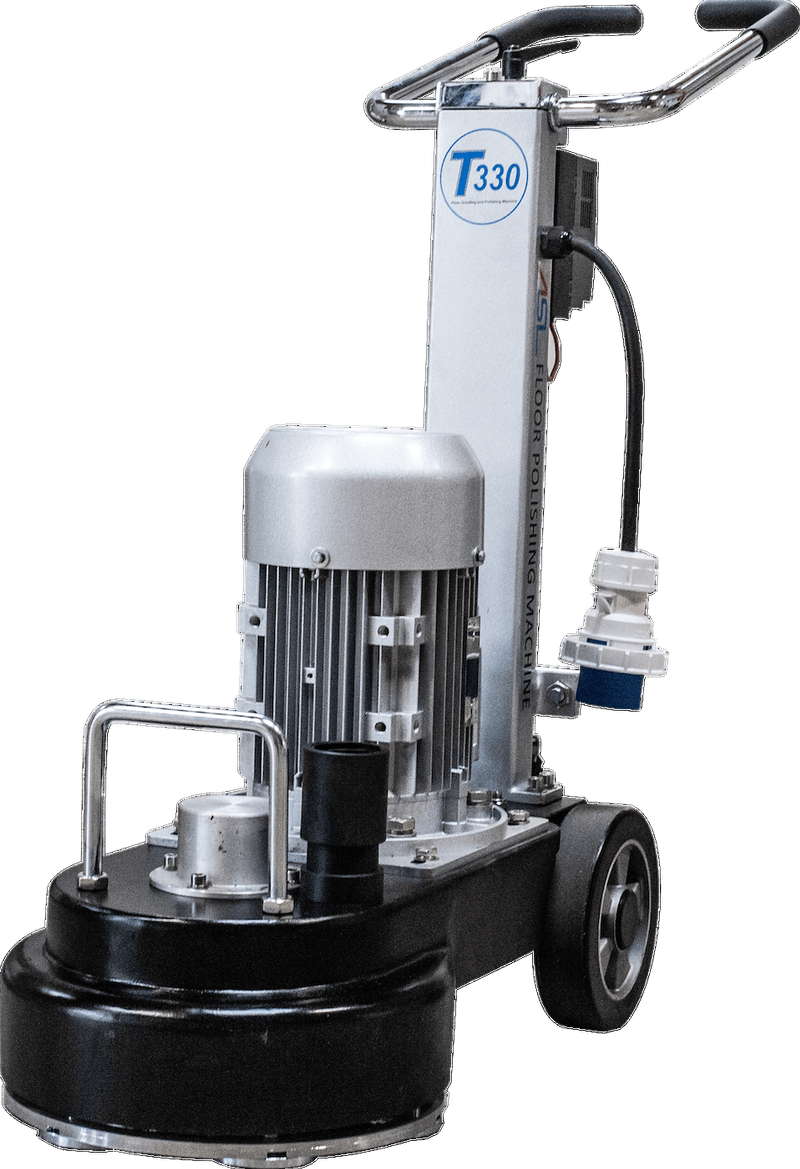

The ASL T330 is a high - powered grinder ideal for small - scale jobs and edges. It features a variable speed drive, allowing you to adjust the speed according to the grinding tools you use. The 360 - degree rotatable handle provides a comfortable operating position for every user. Comes with a level, dust shroud, 33 - foot cable, weight, and resin holders. This machine can hold 3 to 6 tools, suitable for both wet and dry applications, and can grind as close as 1/4 inch from the wall. Specifications: Model T330, 220V Single Phase power, 17A current, 3 HP motor and inverter, 50/60 Hz frequency, 300 - 1400 RPM disc speed, 13 inches (330 MM) grinding width, and weighs 140 lbs + 10 lbs weight.
Using the ASL T330 is quite straightforward. First, make sure the power supply matches the machine's requirements (220V single - phase). Then, select the appropriate grinding tool and adjust the speed using the variable speed drive according to the job. You can rotate the handle to a comfortable position for easy operation. When using it, keep in mind that it can work with both wet and dry applications. For wet applications, ensure proper water supply and drainage. When grinding near the wall, it can get as close as 1/4 inch. As for maintenance, regularly check the cable for any damage. Clean the dust shroud after each use to ensure good dust collection. Periodically inspect the motor and inverter for proper functioning. Also, check the level to make sure accurate grinding. If you need to change the tools, follow the safety procedures and make sure the machine is turned off.
