Description

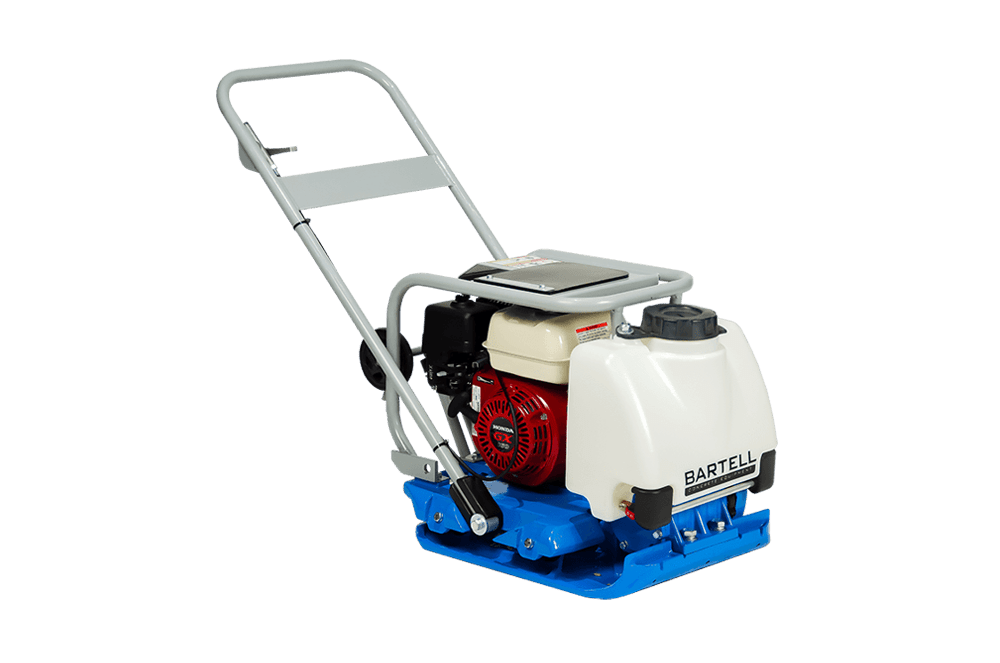

The Bartell BCF 1570 Forward Plate Compactor is a top - choice for general compaction. With over 3000 lbs. of compaction force, it's perfect for various applications. Its built - in water tank allows it to be used on asphalt, adding to its versatility. This compactor is innovative, hard - hitting, and low - maintenance. Key features include robust throttle controls for easy operation, retractable wheel kits for effortless movement to the site, lifting bales for tough - to - reach work areas, a straight - edge plate design for compacting close to edges, sealed belt guards to protect the belt from rocks, and standard water tanks. It is powered by a Honda GX160 engine with a performance of 4.8 (3.6) HP. The compactor measures 44' (1100mm) in length, 20' (500mm) in width, and 33' (825mm) in height. The plate size is 20' x 21' (500 x 525m). It has a centrifugal force of 3461 lbf, 15 kN, 1570 kgf and a travel speed of 60 - 82 ft/min, 20 - 25 m/min.
Using the Bartell BCF 1570 Forward Plate Compactor is easy. First, make sure the engine is properly fueled and the water tank is filled if you're working on asphalt. Start the engine using the standard throttle controls, which are conveniently mounted for easy access. To move the compactor to the site, you can flip down the retractable wheel kits and roll it there. If the work area is hard to reach, use the lifting bales to transport it. When compacting, get as close to the edge as you need with the straight - edge plate design. Be careful to avoid large rocks that could damage the belt, but thanks to the sealed belt guards, you're well - protected. After use, turn off the engine. For maintenance, regularly check the engine oil, clean the air filter, and make sure the water tank is empty when not in use. Keep the compactor in a dry place to prevent rust and damage.
