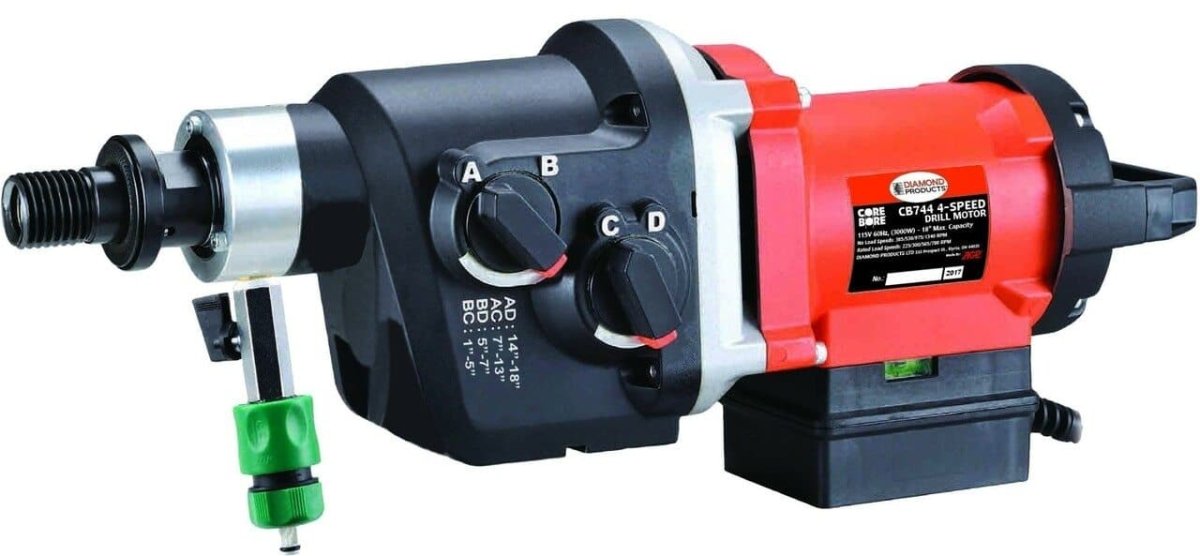

CB744 Bore Mounted Motor

The CB744 is a powerful bore-mounted motor. It offers an 18' bit capacity, suitable for various drilling tasks. Both motors come with an Amp Warning Light, ensuring safety. It has an on/off switch, eliminating the need for a control panel. This 4-speed electric drill motor runs at 25 amp and 115 volts. It features a built-in LED amp meter, also no control panel needed. There's a water hose connection for cooling. It has a 1.250'-7 threaded spindle, a slip clutch, and a bubble level for accurate drilling. A carrying handle makes it easy to move around. It includes an on/off switch/amp meter, an extra-long cord, and an open-end wrench. The CB744 motor by Core Bore has RPMs of 385/530/975/1340, with a part number of 4244125 and catalog number 78699. There's also a CB733 motor with 20 amp, 120V or 230V, RPMs of 345/630/1000, part number 4244126, and catalog number 83983.

Using the CB744 motor is easy. First, connect the power cord to a suitable 115-volt outlet. You can turn the motor on and off using the on/off switch, and keep an eye on the amp meter to ensure safe operation. If you're drilling, make sure to connect the water hose for cooling. Use the bubble level to position the motor accurately. When you're done, turn off the motor and unplug it. For maintenance, keep the motor clean and dry. Check the slip clutch regularly to make sure it's working properly. Store the motor in a cool, dry place. Remember, don't overload the motor. If you notice any problems, like strange noises or the amp warning light staying on, stop using the motor and have it checked by a professional.
