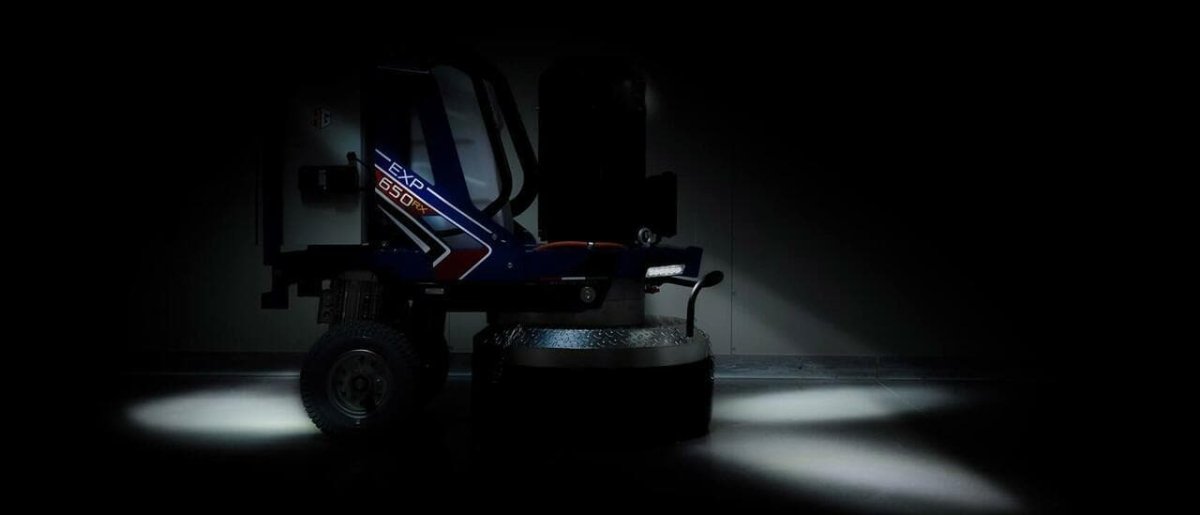

The EXP 650 RX/AT is a remarkable remote-controlled planetary grinding and polishing machine designed for large surfaces. It features variable speed, allowing you to adjust according to different tasks. The adjustable working pressure ensures efficient and precise operations. With on-board batteries, the machine can move by itself, and the autopilot system makes it even more user - friendly.
**Main technical features**:
- Adjustable working pressure for customized performance.
- Tempered stainless steel planetary and gear box with fully geared transmission for durability.
- A third wheel for easy transportation and large - scale operations.
- Compact and handy design for convenient use.
- Automatic planetary lifting simplifies loading and unloading from vehicles.
- All functions can be controlled via remote.
- On - board batteries enable self - displacement.
- A quick - attachment system for diamond tools without the need for utensils.
**Applications**:
- Smooth and prepare all types of floors.
- Remove unevenness on concrete.
- Eliminate resins, glues, paints, and other residues.
- Achieve a high - glossy mirror look on marble and granite.
- Polish industrial concrete floors to a high - gloss finish.
**Model Specifications**:
| Model | EXP 650 RX | EXP 650 AT |
|--|--|--|
| Motor | 15 HP | 15 HP |
| Drive Inverter | 11 kW | 11 kW |
| Volt | 380 - 480 | 380 - 480 |
| Hertz | 50/60 | 50/60 |
| Amp | 25 | 25 |
| Tools Speed | 300 - 1300 rpm | 300 - 1300 rpm |
| Work Diameter | 650mm | 650mm |
| Tools Size | 3x240mm | 3x240mm |
| Water Tank | 46 lt | 46 lt |
| Size LxAxP cm | 140x145x68 | 140x145x68 |
| Weight | 370 Kg | 370 Kg |
**ESTIMATED PRODUCTION**:
| Task | Production |
|--|--|
| Concrete Polishing 7 step | 20 - 25m2/h |
| Concrete Grinding 1 step | 50 - 100m2/h |
| Terrazzo Polishing 5 step | 20 - 30m2/h |
| Resin Removal 1 step | 80 - 120m2/h |
| Paint Removal 1 step | 80 - 120m2/h |
| Marble Polishing 5 step | 12 - 25m2/h |
| Granite Polishing 7 step | 8 - 10m2/h |
Please note that data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
**Model EXP 650**:
| Specification | Details |
|--|--|
| Volume | 1.80 m3 |
| Size | 150x145x85 cm |
| Weight | 385 Kg |
Using the EXP 650 RX/AT is a breeze. First, make sure the on - board batteries are fully charged if you plan to use the self - displacement feature. When you're ready to start, use the remote control to turn on the machine. You can adjust the speed and working pressure according to the type of surface you're working on. For example, if you're polishing marble, you might want a lower speed and a gentle pressure.
When it comes to moving the machine, the third wheel makes it easy to transport, especially for large - scale jobs. And when you need to load or unload it from a vehicle, just use the automatic planetary lifting function.
As for the tools, use the quick - attachment system to connect the diamond tools without any hassle.
**Note**: Always wear appropriate safety gear, like goggles and gloves, when operating the machine. Also, keep in mind that the production data can change based on various factors, so don't be surprised if the actual results vary a bit.
**Maintenance**: Regularly check the tempered stainless steel planetary and gear box for any signs of wear. Clean the water tank after each use to prevent clogs. And if you're not going to use the machine for a while, store it in a dry place to avoid rust and damage.
