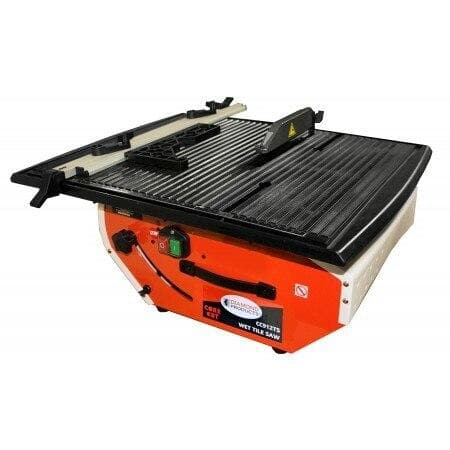

The CC912TS Tile Saw is a lightweight and compact powerhouse for high-performance cutting. It has a 9' blade capacity with a 1' arbor and is powered by an 800-watt, 120-volt, single-phase electric motor. Key features include a heavy-duty table with a measuring guide, an angle guide plate for various cutting angles, an easily-adjustable cutting guide that stays parallel, an easy-mounting water tray, a safety relay switch, a quick-release tool-free table mount for easy cleaning and blade replacement, and an easy adjustment miter up to 45 degrees. Specifications are as follows: power is 800 watt, 120 volt single phase electric motor; arbor is 1'; bevel ranges from 0 - 45 degrees; max cutting depth is 1-7/8' and 1-7/16' at 45 degrees; weight is 34 lbs. It comes with a parallel cutting guide, an angle guide plate, an M8 combination wrench, and an M19 combination wrench. Model # is CC912TS, Part # is 5801608, and Cat # is 46904.
Using the CC912TS Tile Saw is easy. First, make sure the saw is properly connected to a 120-volt power source. Place your tile on the heavy-duty table and use the measuring guide to get the right position. Adjust the cutting angle with the angle guide plate or the miter up to 45 degrees as needed. The easily-adjustable cutting guide will keep your cuts straight. Don't forget to fill the water tray to keep the blade cool during cutting. When you're done using the saw, use the quick-release, tool-free table mount to open it up for easy cleaning. Also, make sure to turn off the saw using the safety relay switch. For maintenance, regularly check the blade for wear and tear and replace it when necessary. Keep the saw clean and dry to prevent rust and damage. Use the included wrenches for any adjustments or part replacements.
