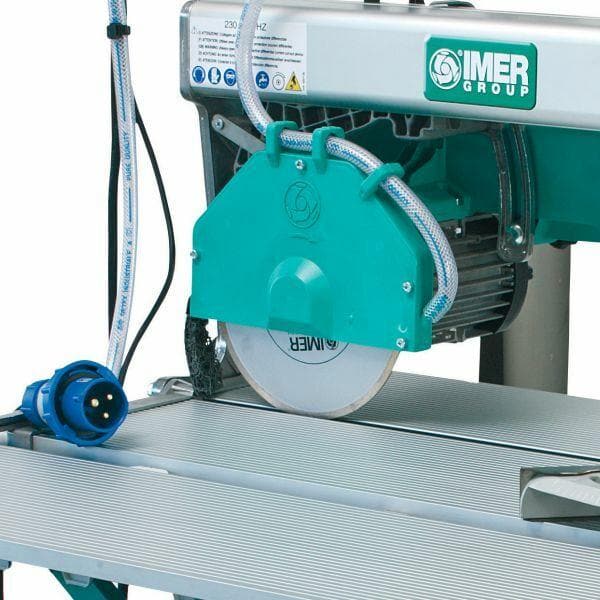

Combicut 200VA Tile Saw

This water-cooled tile saw features a 200 mm blade. It's a small, portable powerhouse that's lightweight, compact, and easy to use - perfect for installers!

STANDARD EQUIPMENT

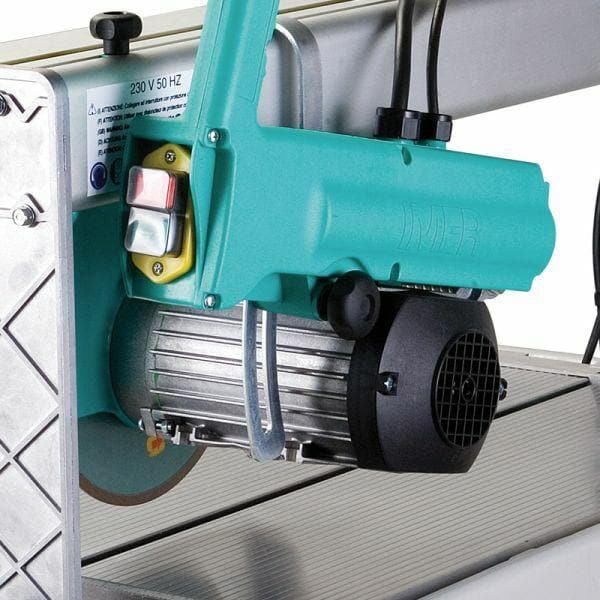

• Single-phase 230V/50Hz electric motor, 1.5 kW with thermal protection and minimum voltage coil
• IP 55 switch
• IP 67 plug
• Cutting guide
• 200 mm continuous rim blade for tiles
• Protractor with large support surface
• 240 mm anodized extruded aluminum cutting surface
• Shatter-resistant plastic tray for water containment and recovery
• Stand

OPTIONAL ACCESSORIES AND RECOMMENDED BLADES

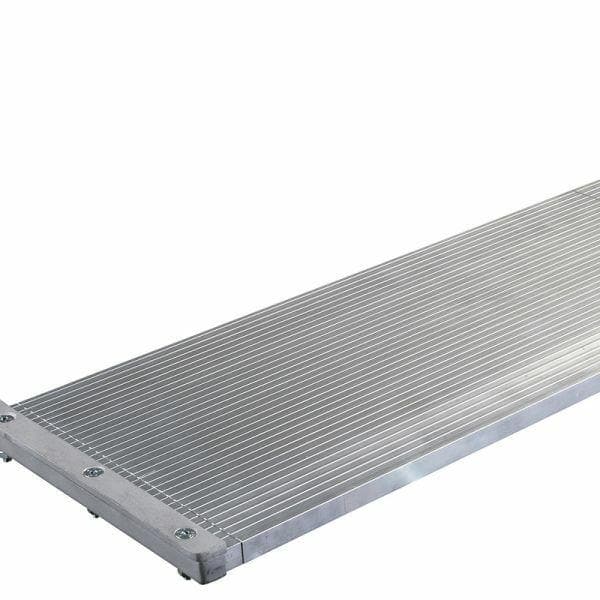

• Side cutting surface
• 200 mm continuous rim diamond blade for tiles
• 200 mm continuous rim SUPER diamond blade for hard tiles

APPLICATIONS

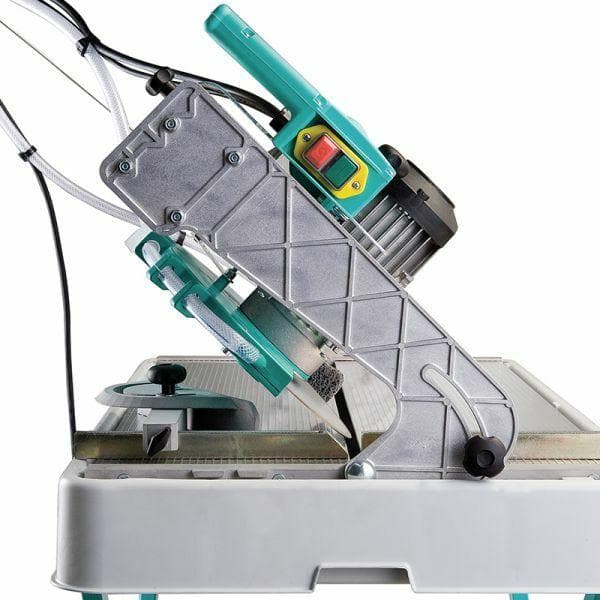

This high-powered, portable tile saw is a great choice for installers. It has high cutting capacity and the blade suits all materials. You can make 90° vertical cuts or tilted cuts between 90° and 45°. An optional side cutting surface extends the cutting by 240 mm while keeping the saw stable.

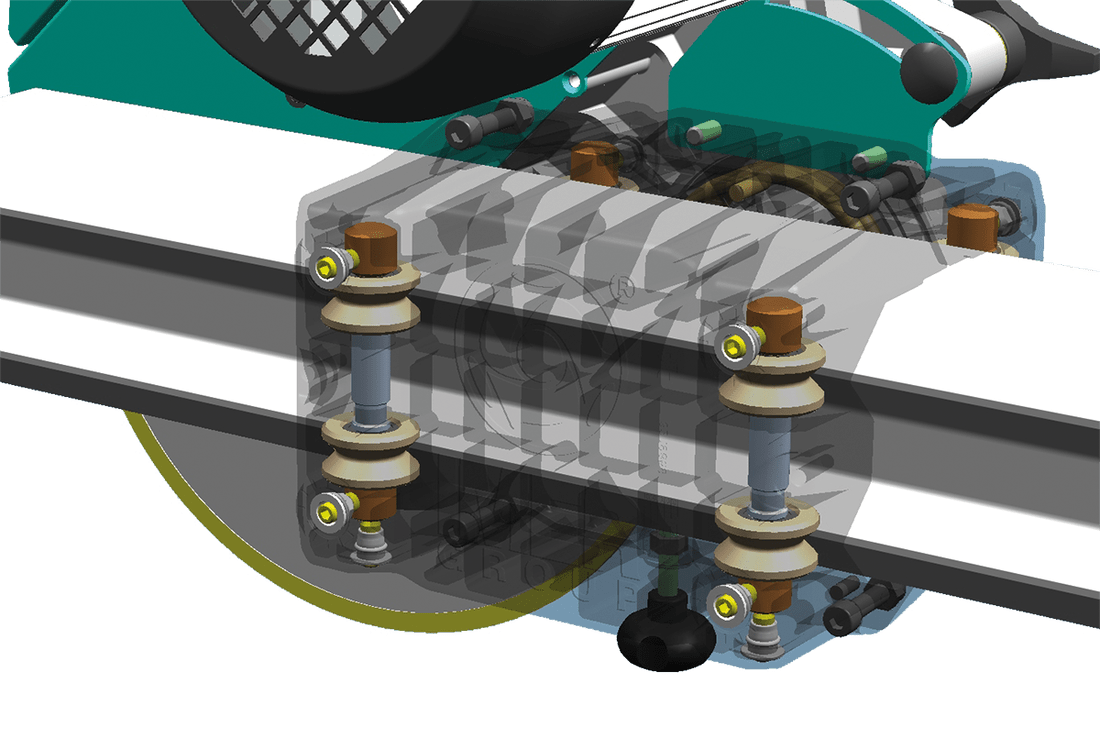

Using this tile saw is easy. First, make sure it's properly plugged in using the IP 67 plug and the IP 55 switch is working. Place your tile on the 240 mm anodized extruded aluminum cutting surface. You can use the cutting guide and protractor for accurate cuts. For vertical cuts, set the blade at 90°. If you need a tilted cut, adjust the angle between 90° and 45°. The water-cooled system helps keep the blade cool, and the shatter-resistant plastic tray collects the water. Remember to use the right blade for the type of tile you're cutting. For regular tiles, the standard 200 mm continuous rim blade works well. For hard tiles, use the SUPER diamond blade. As for maintenance, after each use, clean the saw and the tray. Check the motor's thermal protection regularly. If you're using the optional side cutting surface, make sure the bracket is bolted tightly to the stand for stability.
