Description

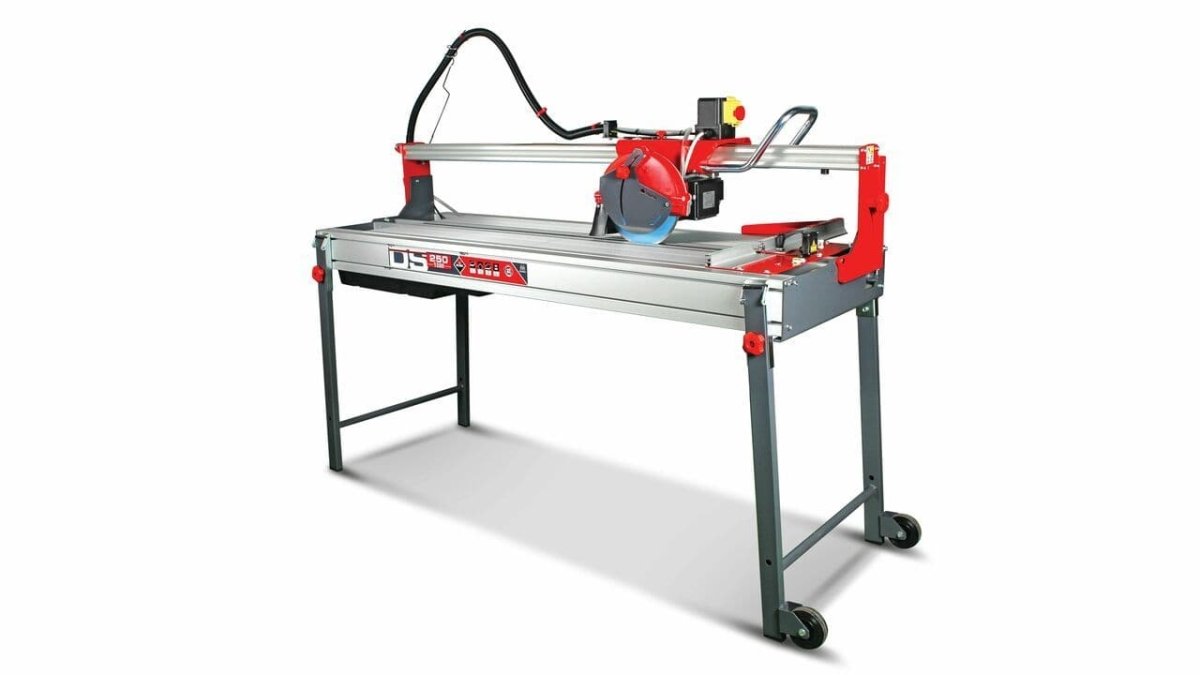

RUBI presents its professional - grade DS - 250 - N Laser & Level tile saw series. These cutters feature highly accurate mobile heads, perfect for miter cuts. The robust 3 HP motor makes them ideal for cutting all types of ceramic tiles, especially porcelain tiles, as well as natural stones like marble, granite, and slate. The motor assembly, mounted on sliding bearings, ensures maximum precision and high - quality cuts. Its aluminum structure is light yet highly resistant to construction work conditions. The cutting head protector allows the use of various blade types, such as continuous rim, turbo, and segmented blades. It comes with 10 - inch diameter blades. The retractable legs offer extra protection during transport and storage, and the built - in wheels make short - distance movement easy. Maintenance is minimal thanks to the aluminum chassis, and daily cleaning is a breeze with removable tables and trays. The saw includes a 2mW power laser tracer (Class 2) for better cutting visibility and positioning, along with a spirit level system for on - site installation. Available in 1000, 1300, and 1500 models with cutting lengths of 40.16, 51.97, and 59.84 inches respectively. With a global presence in over 120 countries, RUBI makes it easy for users worldwide to find tools and spare parts. Key features include a motor assembly on sliding bearings for precision, an aluminum structure for lightness and durability, wheels and handle for easy transport, a ZERO DUST system certified by TNO, extruded aluminum removable tables, thermic and overload security switches (except three - phase motors), blade cooling by water pump with regulating tap, a double set of flanges for miter cuts, a safety protector for segmented blades, a lateral stop for repetitive cuts, retractile legs with'shield' function and wheels, a removable water tank system, a 2mW line laser, a circular level for easy installation, and it comes with a new ZERO DUST system and a second set of standard splash skirt. Technical details: Ref. - 52934, EAN - 13 - 8413797529340, Cutting length - 51.96 inches, Diagonal cutting length - 3.68 x 3.68', Cutting height - 2', Mitre cutting length - 52', Miter Thickness cut - 1', Power supply - 120V - 60Hz, Revolutions per minute - 3400 RPM, Outside diameter - 10', Inside diameter - 1', Length Width Height (machine overall dimensions) - 78 - 5⁄8 x 28 - 5⁄8 x 50', Net weight without packaging - 212.74 lbs, Gross weight - 264.5 lb., Units per box - 1, Units per pallet - 1, Points: 500.
Using your RUBI DS - 250 - N tile saw is easy. First, make sure to install the saw on a flat surface using the circular level for proper alignment. Then, connect the power supply (remember to include the cable in your order). You can select the appropriate blade for your material, whether it's wall tiles, floor tiles, porcelain tiles, marble, or granite. The double - set of flanges allows for miter cuts easily. When cutting, use the lateral stop for repetitive cuts and the laser tracer to guide your cuts. During operation, the water pump will cool the blade, and you can adjust the water flow with the regulating tap. After use, turn off the power. For maintenance, remove the removable tables and trays for easy cleaning. The aluminum chassis means minimal long - term maintenance. Keep the retractable legs retracted during transport and storage to protect the saw. And always follow safety instructions when handling the saw, especially when dealing with the blade and power supply.
