DS250S Full Core Rig Setup

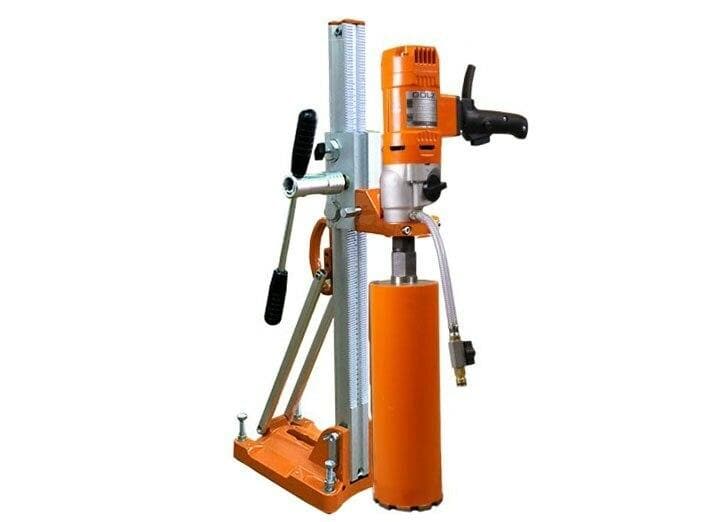

The DS250S Core Rig Setup is an outstanding lightweight aluminum drill stand equipped with an anchor - or vacuum base. It weighs only 26.5 lbs (12 kg), making it easy to move around. With a travel length of 26 in. (650 mm) and a maximum diameter of 10 in. (250 mm), it offers great flexibility. The angle drilling device can reach up to 45°, and bubble levels ensure a precise setup. It supports both left - and right - handed operation, and a laser pointer helps with accurate positioning. The aluminum anchor - or vacuum base provides stability. There are three motor options: FB23P, FB20P, and FB33P, all operating at 110V, 20A, 50 - 60 Hz. Power input/output varies from 2.2 - 2.7 kW (1.5 - 1.75 kW), and RPM ranges from 450 - 2900 min - 1. Drilling diameter is 7/8 in. (20 mm) - 4 in. (110 mm) handheld and 7/8 in. (20 mm) - 8 in. (200 mm) on the stand. It has a 1є in. UNC drill bit connection and PRCD safety feature. Weights range from 11 - 14.5 lbs (5.9 - 6.7 kg), and order numbers are 0295 007 5080 and 0295 007 5082.

Using the DS250S Core Rig Setup is easy. First, choose the appropriate motor according to your needs and connect it properly. Then, set up the drill stand on a flat surface. If you're using the anchor base, make sure it's firmly fixed; if it's the vacuum base, ensure a good seal. Adjust the bubble levels and use the laser pointer to get an accurate setup. You can operate it with either your left or right hand. When drilling, select the right RPM and power based on the material and diameter of the hole. Remember to wear safety gear at all times. For maintenance, keep the drill stand clean and lubricate the moving parts regularly. Check the safety features like PRCD often to ensure they're working properly. If you have any problems, refer to the order number for technical support.
