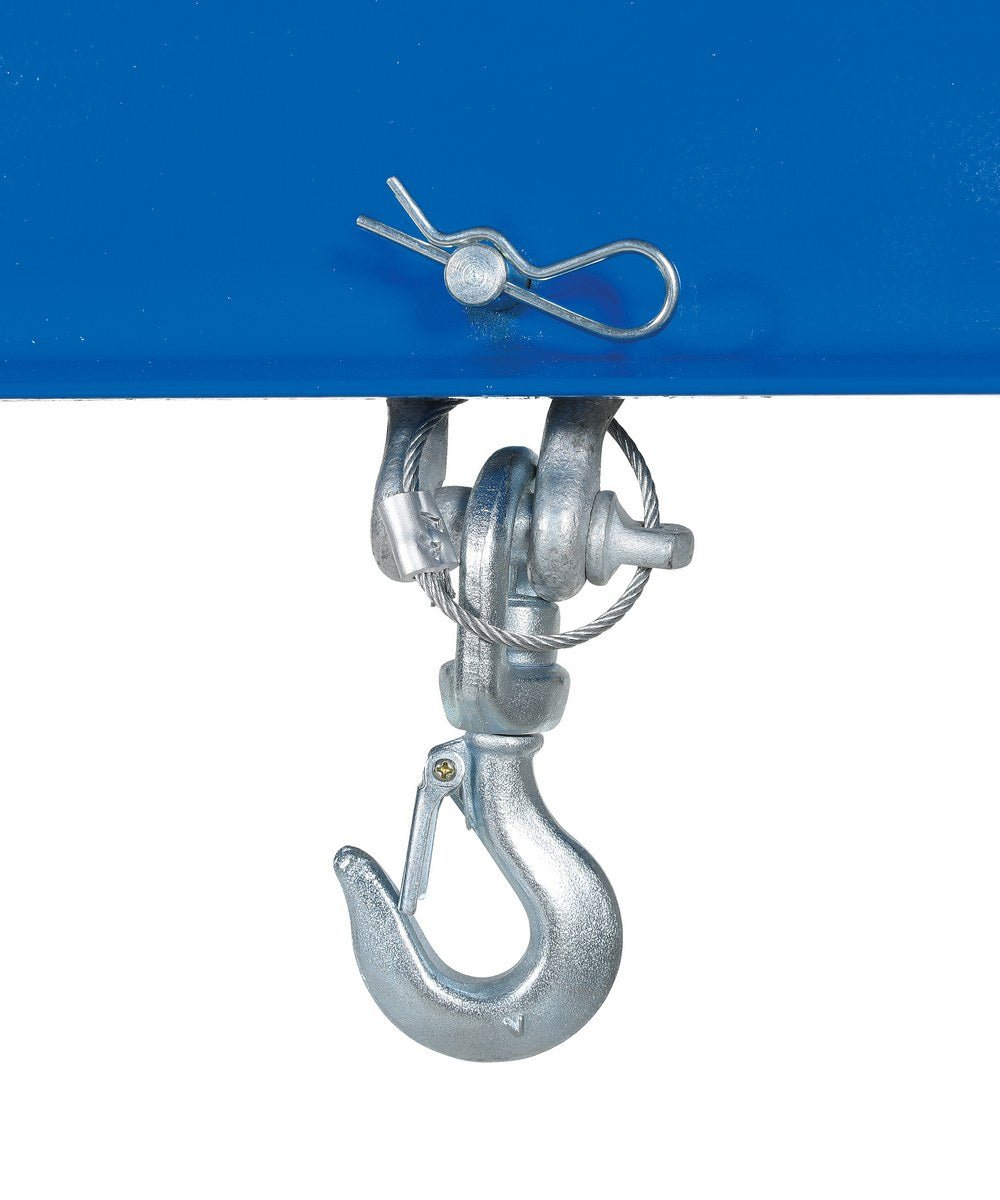

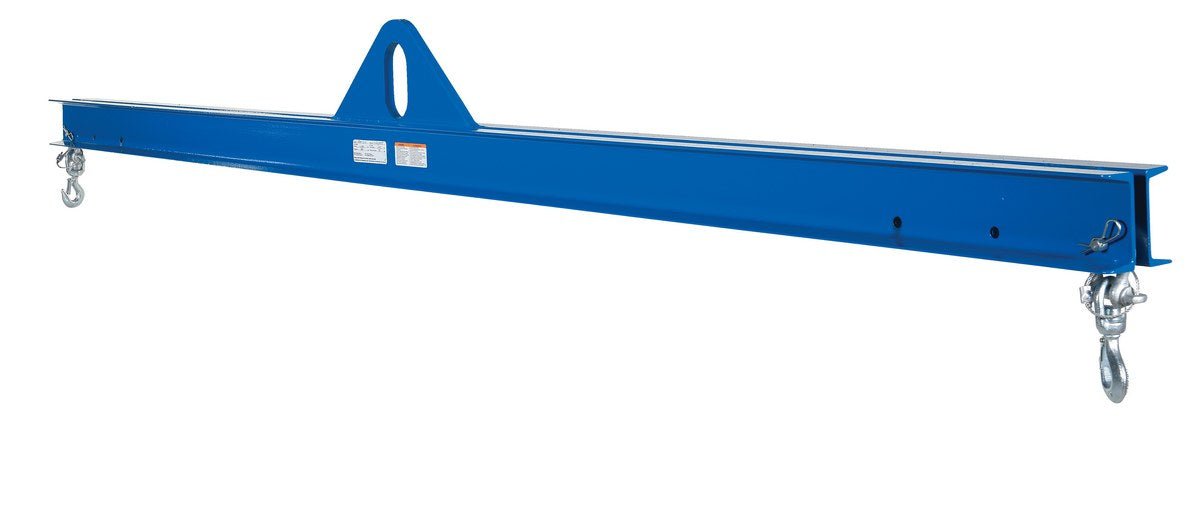

These spreader beams are incredibly versatile lifters, perfect for lifting various loads in spaces with limited headroom. They comply with OSHA and ANSI B30.20 standards, ensuring safety and reliability. The usable bail measures 3 feet wide and 5 feet high. Equipped with two safety swivel hooks and a tough baked - in powder - coat finish, they are built to last. The heavy - duty welded steel construction provides excellent durability. All measurements are approximate, and slight variations, tolerances, or changes may occur. The weights shown are approximate shipping weights. Check out the detailed specifications below:
| Model | PDF's | Min./Max. Spread | Headroom | Capacity (lbs) | Wt. (lbs) |
| --- | --- | --- | --- | --- | --- |
| SBM - 10 - 3 | | 21'/33' | 14' | 1,000 | 67 |
| SBM - 10 - 4 | | 33'/45' | 14' | 1,000 | 75 |
| SBM - 10 - 6 | | 45/69' | 14' | 1,000 | 93 |
| SBM - 10 - 8 | | 69'/93' | 14' | 1,000 | 105 |
| SBM - 10 - 10 | | 93'/117' | 14' | 1,000 | 141 |
| SBM - 10 - 12 | | 117'/141' | 14' | 1,000 | 212 |
| SBM - 20 - 3 | | 21'/33' | 14' | 2,000 | 54 |
| SBM - 20 - 4 | | 33'/45' | 14' | 2,000 | 61 |
| SBM - 20 - 6 | | 45'/69'' | 14' | 2,000 | 103 |
| SBM - 20 - 8 | | 69'/93' | 14' | 2,000 | 159 |
| SBM - 20 - 10 | | 93'/117' | 15' | 2,000 | 188 |
| SBM - 20 - 12 | | 117'/141' | 15' | 2,000 | 268 |
| SBM - 40 - 3 | | 21'/33' | 14 - 3/8' | 4,000 | 79 |
| SBM - 40 - 4 | | 33'/45' | 14 - 3/8' | 4,000 | 112 |
| SBM - 40 - 6 | | 45'/69' | 15 - 3/8' | 4,000 | 147 |
| SBM - 40 - 8 | | 69'/93' | 18 - 3/8' | 4,000 | 222 |
| SBM - 40 - 10 | | 93'/117' | 18 - 3/8' | 4,000 | 275 |
| SBM - 40 - 12 | | 117'/141' | 18 - 3/8' | 4,000 | 295 |
| SBM - 60 - 3 | | 21'/33' | 15 - 11/16' | 6,000 | 78 |
| SBM - 60 - 4 | | 33'/45' | 15 - 11/16' | 6,000 | 146 |
| SBM - 60 - 6 | | 45'/69' | 18 - 11/16' | 6,000 | 187 |
| SBM - 60 - 8 | | 69'/93' | 18 - 11/16' | 6,000 | 247 |
| SBM - 60 - 10 | | 93'/117' | 18 - 11/16' | 6,000 | 305 |
| SBM - 60 - 12 | | 117'/141' | 18 - 11/16' | 6,000 | 393 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Using these spreader beams is quite straightforward. First, make sure the lifting area has enough space and that the headroom meets the requirements specified in the product's details. Attach the safety swivel hooks to the load properly. When selecting a model, consider the minimum and maximum spread needed for your load and the weight capacity. Remember, all measurements are approximate, so there might be slight differences. As for maintenance, keep the beams clean and dry. Check the powder - coat finish regularly for any signs of chipping or damage. If you notice any issues with the hooks or the welded construction, stop using the beam immediately and contact the manufacturer. Also, since these beams comply with OSHA and ANSI B30.20 standards, always follow those safety guidelines during use.
