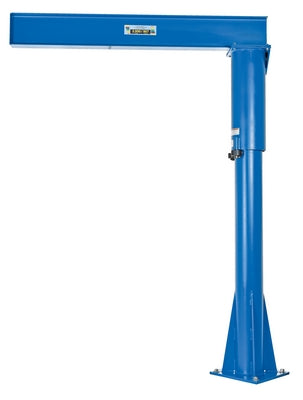

This fixed - height floor - mounted jib crane is a versatile solution for multiple applications. It offers a full 360 - degree rotation, enabling personnel to fully utilize their workstations. Its solid steel construction helps workers lift awkward materials with ease. The overall I - beam length is generally 80', except for model JIB - FM - 40 which has an I - beam length of 80 - 3/8'. Installation requires a reinforced concrete pad. The hoist and trolley can be ordered separately. All measurements are approximate, and slight variations, tolerances or changes may occur. The weights shown are approximate shipping weights. Here are the details of different models: Model JIB - FM - 3 has an under - I - beam floor of 99 - 1/4', an I - BEAM of 2 - 11/16'x 4', an overall height of 103 - 1/4', a capacity of 300 lbs and a weight of 428 lbs. Model JIB - FM - 6 has an under - I - beam floor of 99 - 1/4', an I - BEAM of 4'x 6', an overall height of 105 - 1/4', a capacity of 600 lbs and a weight of 458 lbs. Model JIB - FM - 10 has an under - I - beam floor of 99 - 1/2', an I - BEAM of 4'x 6', an overall height of 105 - 1/2', a capacity of 1,000 lbs and a weight of 610 lbs. Model JIB - FM - 20 has an under - I - beam floor of 99 - 1/2', an I - BEAM of 4'x 10 - 1/8', an overall height of 109 - 5/8', a capacity of 2,000 lbs and a weight of 651 lbs. Model JIB - FM - 40 has an under - I - beam floor of 99 - 1/4', an I - BEAM of 6 - 1/2'x 12 - 1/4', an overall height of 111 - 1/2', a capacity of 4,000 lbs and a weight of 783 lbs.
Using the floor - mounted jib crane is easy. First, make sure you have installed it on a reinforced concrete pad as required. Then, if you've ordered the hoist and trolley separately, install them properly. When using, rotate the jib to the desired position and start lifting the awkward materials. Remember, all the measurements are approximate, so don't be too strict about the exact dimensions. For maintenance, regularly check the solid steel construction for any signs of wear or damage. If you notice any problems, stop using the crane immediately and get it repaired. Also, keep in mind that the weights shown are for shipping, and the actual working weight might vary a bit. That way, you can make the most of your floor - mounted jib crane.
