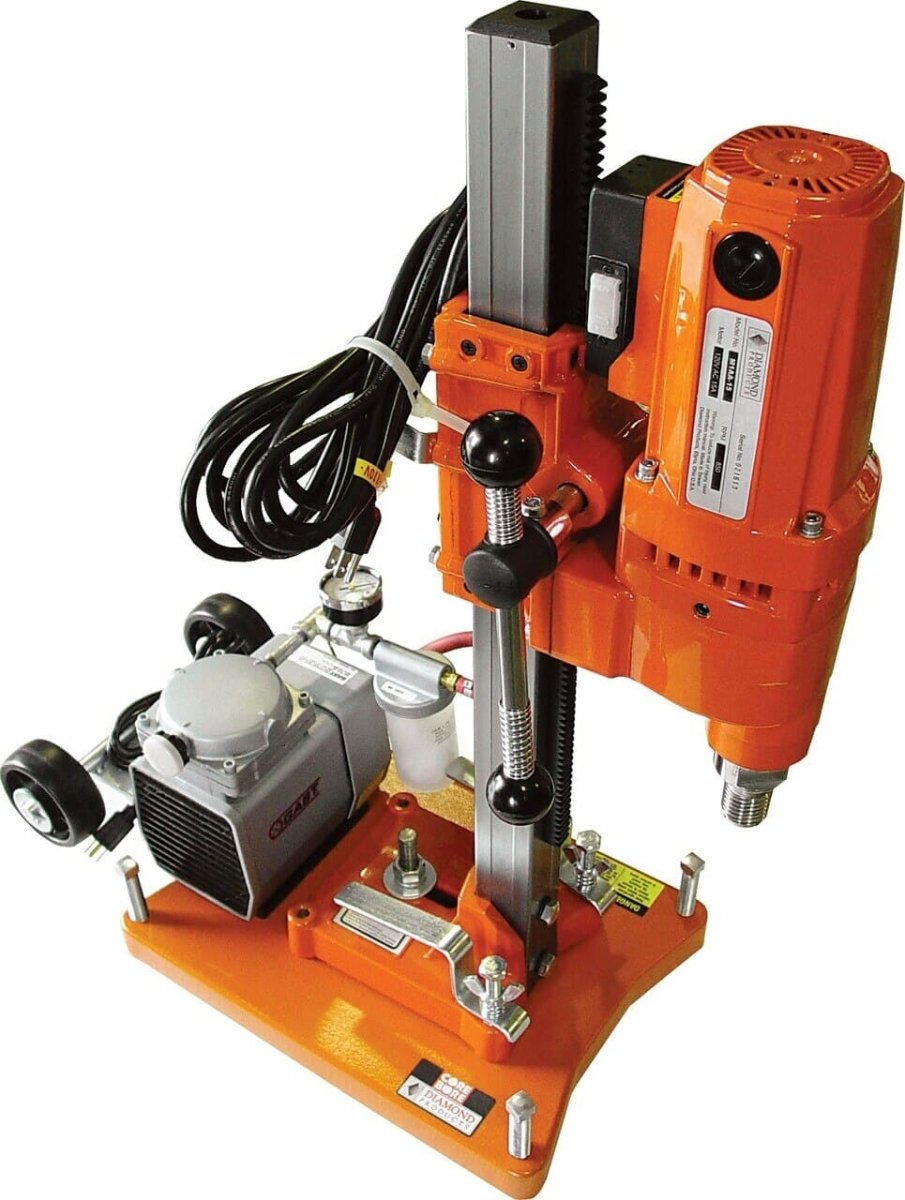

The M1AA Portable Core Rig offers a 6' bit capacity and comes with a host of great features. It weighs just 35 lbs, making it incredibly light and easy to carry around. With a single - speed of 800 RPM, it gets the job done efficiently. The spring - loaded slide handle simplifies the coring process. There's a convenient carrying handle on the carriage. It uses standard power outlets, so you don't have to worry about special power sources. This small and compact unit allows for precise coring. It doesn't have a separate amp meter box, which reduces complexity. The included trap ring keeps water contained. And it's a lower - cost alternative to larger rigs. Here are the details of different models:
| Motor/Engine Power | Rig Type | Part Number | Catalog Number |
|---|
| 15 amp, 110 volt | Anchor rig | 4220050 | 85986 |
| 12 amp, 110 volt | Anchor rig | 4220049 | 24024 |
| 15 amp, 110 volt | Complete rig with add - on vacuum base and vacuum pump | 4220058 | 87078 |
| 12 amp, 220 volt | Complete rig with add - on vacuum base and vacuum pump | 4220048 | 42687 |
Using the M1AA Portable Core Rig is a breeze. First, find a suitable location with a standard power outlet. Plug in the rig according to its power requirements (either 110 or 220 volts). If you're using the model with an add - on vacuum base and vacuum pump, set them up properly. Then, use the convenient carrying handle to place the rig where you need to do the coring. The spring - loaded slide handle makes it easy to start the coring process. Keep in mind that the rig has a single speed of 800 RPM, so adjust your work accordingly. The trap ring is there to keep water from spilling, so make sure it's in place. As for maintenance, keep the rig clean after each use. Check the power cord for any damages. If there are any issues with the motor or other parts, refer to the product manual or contact customer service. And because it's light and portable, store it in a dry and safe place when not in use.
