Description

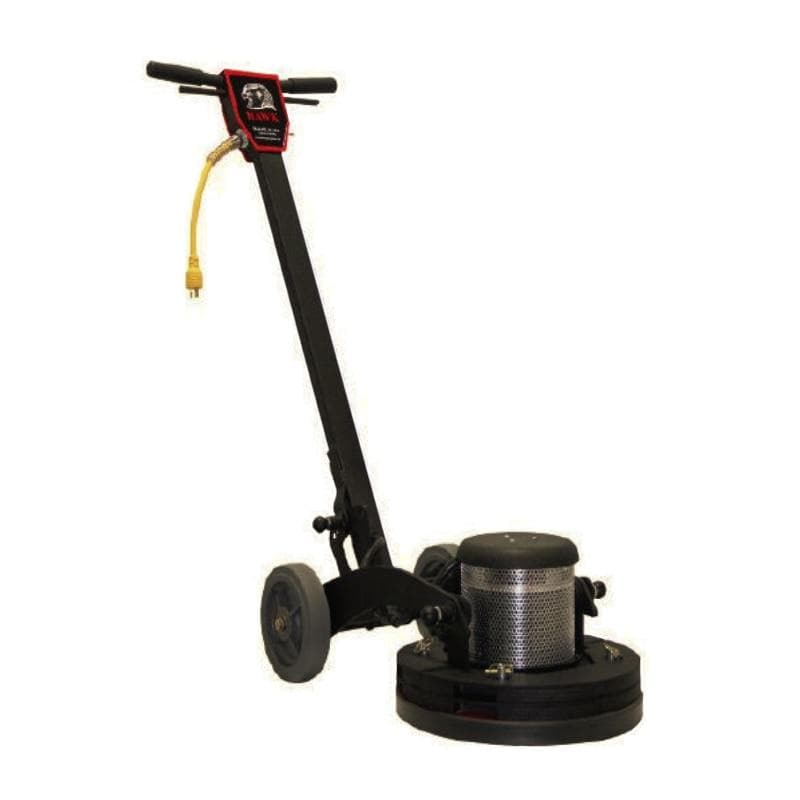

The Hawk Merlin 2-Speed WD Industrial Floor Machine is a top - notch cleaning tool that combines cutting - edge engineering and contemporary design. It offers outstanding performance and user safety. Unlike traditional side - to - side swing buffers, its unique “Floating Head” WDTM Wheels Down handle carriage provides 100% floor contact and enables both forward and backward movement. With two - speed operation (165 RPM for stripping and scrubbing, 300 RPM for buffing and polishing), it's highly versatile and efficient. It can support diamond tools, Claw, Scraper, and Orbitec tools.
**Key Features**
- A 1.5 HP, 2 - speed rectified DC motor delivers powerful performance.
- An easy - to - use Hi - Lo 2 - speed toggle switch on the motor allows for quick speed adjustment.
- It runs on 115V, 50/60 Hz power (230V is an option), comes with a 50 ft., 2 - piece (12 - 3) industrial power cord and cord lock.
- A triple planetary XHD 11:1 helical - cut industrial gear ensures smooth operation at 165 RPM or 300 RPM.
- The WDTM Wheels Down, 5 - position pin - lock handle can be disassembled in 60 seconds for easy transport and storage.
- Its all - steel construction with a welded, powder - coated frame guarantees durability.
- 17” and 20” brush covers with 360 - degree wraparound bumpers protect the machine.
- Thumb - operated safety switch and negative pressure on/off switch ensure user safety.
- Dual steel operating triggers make it easy to use.
- 2” x 8” non - marking load - bearing ball bearing wheels ensure smooth movement.
- It includes an 80 lb. weight kit for extra stability.
- Optional dust pickup kits (17” and 20”) and solution tanks (4 - gallon or 6 - gallon) are available.
- It operates quietly: 62 dB (low speed), 69 dB (high speed) and meets GS42 requirements.
- Built with UL/CUL listed components for safety.
**Specifications**
| Category | 17 - inch Model | 20 - inch Model |
|--|--|--|
| Model # | HP1517 - MER - 2SXHD | HP1520 - MER - 2SXHD |
| Part # | F0040 - 17 - 1.5TE - 2S | F0040 - 20 - 1.5TE - 2S |
| Machine Size | 17 - inch | 20 - inch |
| Pad Size | 16 - inch | 19 - inch |
| Pad Speed | 165 / 300 RPM | 165 / 300 RPM |
| Amp Draw (Low/High Speed) | 8.5 / 9.1 Amp | 9.2 / 9.6 Amp |
| Motor | 1.5 HP, 66 frame, DC rectified 2 - speed motor | |
| Power | 115V, 50/60 Hz (230V optional) | |
| Drive System | Triple - planetary XHD 11:1 helical - cut industrial gear | |
| Power Cord | 50 ft. 12 - 3 SJTOW, 2 - piece yellow power cord with twist lock plug | |
| Noise Level | 66 dB (low speed) - 72 dB (high speed). Meets GS42 standard. | |
Using the Hawk Merlin 2 - Speed Industrial Floor Machine is quite straightforward. First, choose the right speed for the job. If you're stripping or scrubbing the floor, set it to 165 RPM. For buffing and polishing, switch to 300 RPM. You can easily adjust the speed using the Hi - Lo toggle switch on the motor.
When you're ready to start, make sure the power cord is properly plugged in and locked. The all - steel construction of the machine is durable, but be careful when moving it around. Use the dual steel operating triggers to control the movement. The non - marking ball - bearing wheels will help the machine glide smoothly.
For transport and storage, you can disassemble the 5 - position pin - lock handle in just 60 seconds. If you need extra stability, add the 80 lb. weight kit.
Remember to use the thumb - operated safety switch and negative pressure on/off switch to ensure your safety. And if you want to pick up dust or use a cleaning solution, you can attach the optional dust pickup kit or solution tank.
As for maintenance, keep the machine clean after each use. Check the power cord regularly for any damage. Also, since it's built with UL/CUL listed components, you can be assured of its safety, but still follow basic electrical safety rules.
