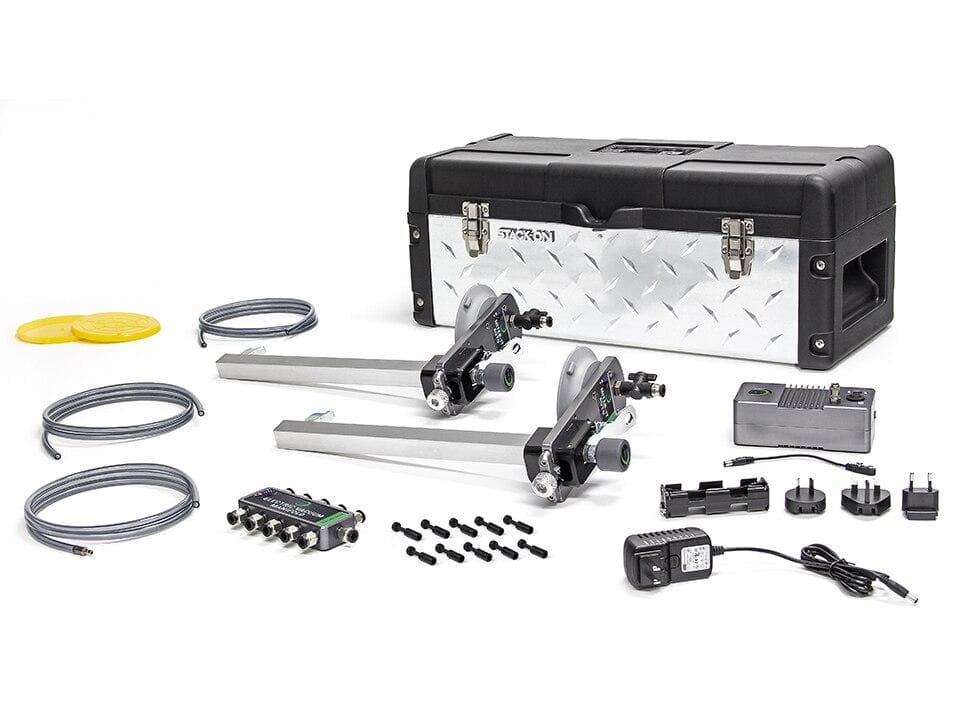

Save your time and money with the Electric Miter-It Auto! This amazing system allows for vacuum-powered mitered laminations wherever you are. No need for a helper anymore. Just place a Miter-It Auto clamp wherever you'd usually need a hand to hold the material. The electric model features a powerful and compact vacuum pump that can run on AC or battery power, making it perfect for any jobsite. Its user-friendly clamps hold heavy, drop-down edges firmly at 90°, enabling finished-side-up laminations with better results than taping. Finishing the seam on the right side enhances worker safety and reduces the risk of material damage as there's no need to flip the material for gluing. You can also keep an eye on the seam for perfect joints and enjoy fast, easy clean-up. The 10-port Electric Vacuum Manifold lets you add eight more clamps to cover more surface. Usually, one clamp every 3 to 4 feet is enough, but you can use more for extra-long or heavy aprons. Key features include on-the-go mitered laminations, labor savings, finished-side-up mitering for safety, a compact pump with dual power options, reliable 90° edge holding, a coarse adjustment lever, horizontal and vertical fine-tuning knobs, non-marking synthetic rubber cups with FTS technology, and the ability to accommodate edges up to 12” tall and 3 cm thick. The Miter-It Auto clamp can expand your system, and the Venturi Vacuum Generator is a highly efficient vacuum source. This product comes with two miter clamp units with 5” gray cups, two cup covers, a vacuum pump, an international power adapter, an AA battery holder, a battery power adapter, a 10-port Vacuum Manifold, ten port plugs, 20’ air tubing, a quick-connect male coupler, and a storage case. Product dimensions are 28' x 14' x 14' (all components in case), and it weighs 25.4 lbs. Package dimensions are 29' x 15' x 15', and shipping weight is 26 lbs. The clamping range is 50 mm to 304 mm (2 in. to 12 in.), and it's made of anodized aluminum, aluminum, stainless steel, silicone, zinc plated steel, and polyurethane air tubing.
Using the Electric Miter-It Auto is easy. First, decide where you need to hold the material. Instead of using a helper, place the Miter-It Auto clamp there. If you want to cover more surface area, you can connect additional clamps to the 10-port Electric Vacuum Manifold. Make sure the vacuum pump is powered, either by AC or battery. The coarse adjustment lever helps you quickly place the apron, and then you can use the horizontal and vertical fine-tuning knobs for perfect seam control. When it comes to safety, always finish the seam on the right side to protect yourself and the material. Don't forget to keep an eye on the seam while working. For maintenance, after each use, clean the non-marking synthetic rubber cups. Check the air tubing for any damage or blockages. Store the product in the provided storage case to keep all components organized. If you need to expand your system, you can use the Miter-It Auto clamp. And if you want to run the system on compressed air, the Venturi Vacuum Generator is a great option.
