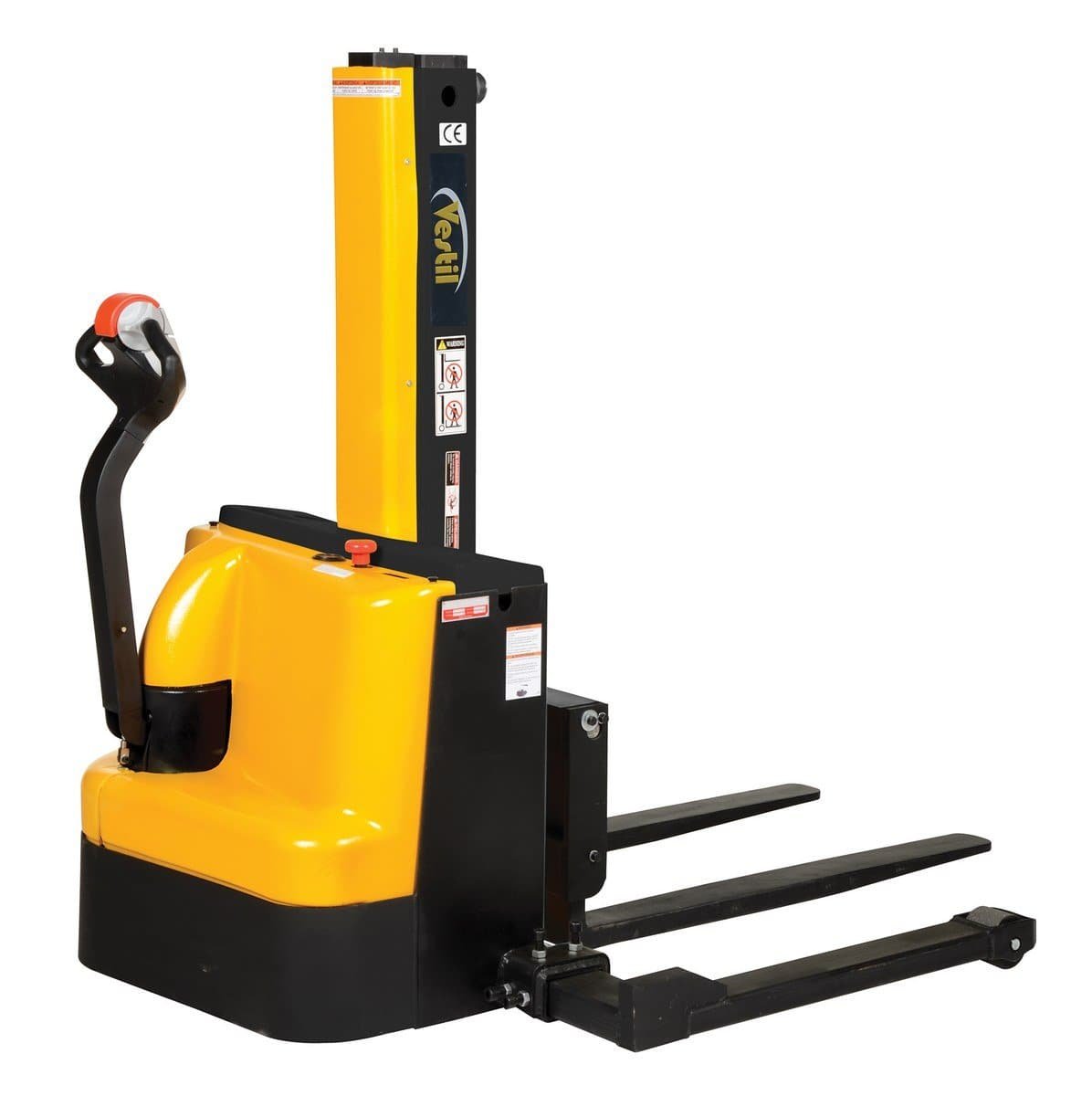

Narrow Mast Fully Powered Electric Stackers are a game - changer for warehouse facilities. They can transport loads quickly and with minimal effort. The high - torque 24VDC drive and lift motor is built to handle heavy - duty tasks. The ergonomic handle comes with an easy - to - operate throttle, allowing for infinite adjustment of forward and reverse speeds. It also has lift/lower controls, a unique safety - enhancing emergency reverse function, and a horn. There's an electromagnetic disc brake with an automatic dead - man feature that activates as soon as the user releases the handle. The powered lifter is equipped with two 12V batteries, an integral battery charger, and a battery level gauge. The stacker rolls smoothly on poly - on - steel steer and load wheels. It can operate for 3 - 4 hours at full charge and up to 8 hours when used intermittently. The proprietary emergency reverse function is a standout safety feature. When the emergency reverse belly switch is actuated, the unit instantly reverses direction and moves forward (away from the operator) until the switch is released or five seconds have passed. If the switch is activated for more than 5 seconds, the built - in safety circuit will automatically disable the entire unit, and it must be reset to return to normal operation. This advanced safety device offers a high level of protection for the operator. All measurements are approximate, and slight variations may occur. The weights shown are approximate shipping weights.
Using your Narrow Mast Fully Powered Electric Stacker is straightforward. First, make sure the batteries are charged. You can check the battery level using the battery level gauge. Once charged, hold the ergonomic handle. Use the throttle on the handle to control the forward and reverse speeds, and adjust them as needed for your task. To lift or lower the load, use the dedicated lift/lower controls. When you need to stop, just release the handle, and the electromagnetic disc brake will engage automatically. There's a special emergency reverse belly switch. If you're in a dangerous situation, press this switch, and the stacker will move forward away from you. But remember, if you hold it for more than 5 seconds, the stacker will shut down, and you'll need to reset it. For maintenance, keep the stacker clean, especially the wheels. Check the battery regularly and charge it as required. If you notice any issues with the motor, handle controls, or the safety features, stop using the stacker immediately and contact our support team.
