Easily tilt and rotate loads with our long - lasting Portable Pallet Inverter
Minimum Lead Time: 2 - 3 Months

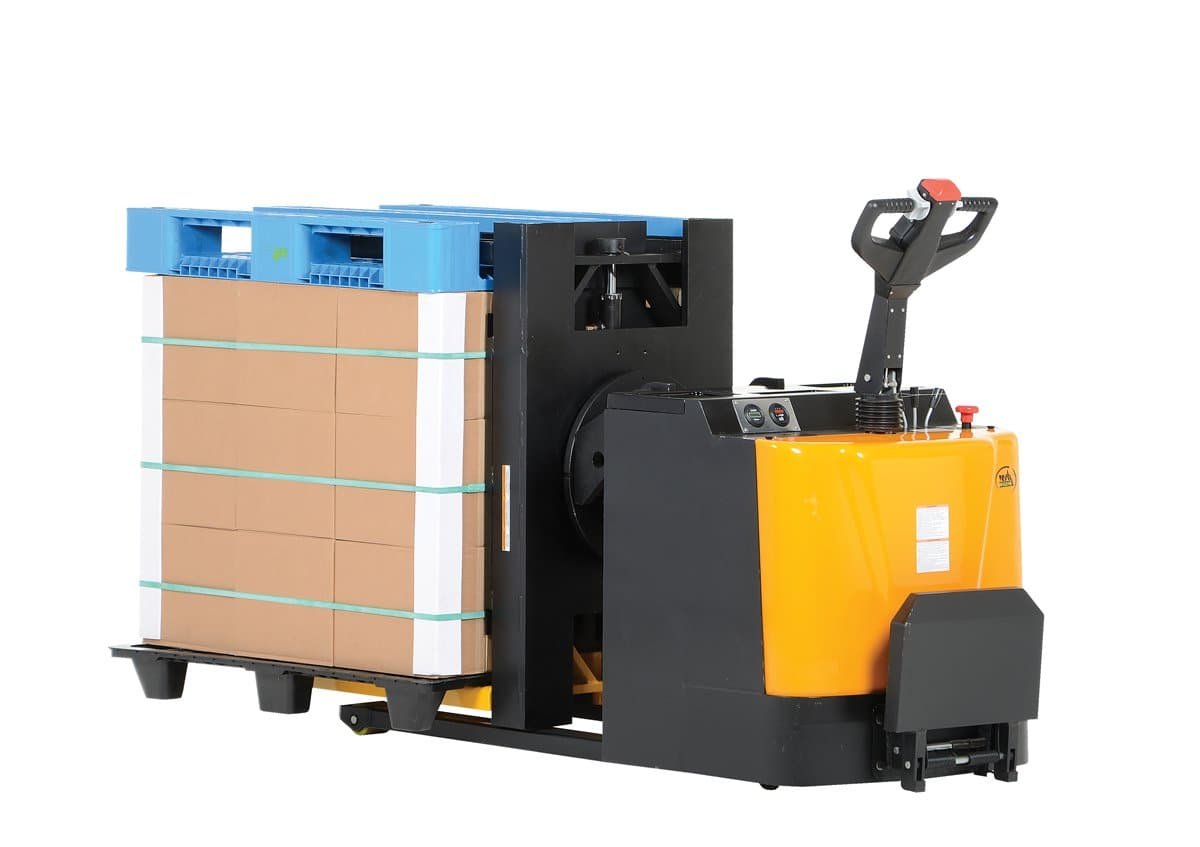

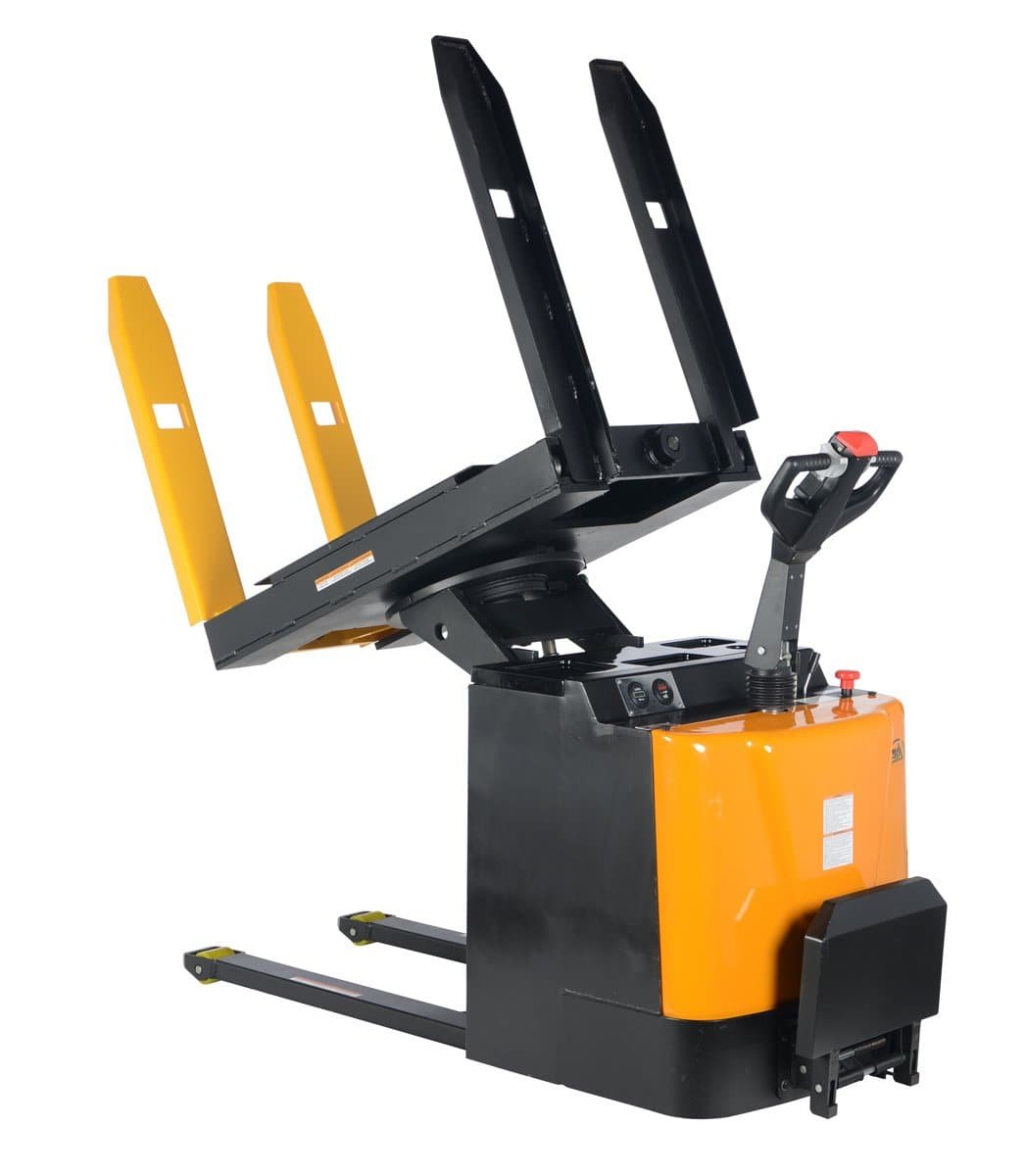

Our durable Pallet Inverter enables both powered tilt and manual rotation of loads. Its low - profile design allows operators to stand on the rider platform and smoothly move loads between workstations. The DC power lift and drive ensure safe and efficient operation. The ergonomic handle comes with an easy - to - use throttle offering infinite forward and reverse speeds, tilt/lower controls, a safety belly reverse button, and a horn. It features an electromagnetic disc brake with an automatic dead - man function that activates when the user releases the handle. The package includes (4) 6V batteries, an on - board battery charger, a battery level gauge, an emergency battery disconnect, and a horn. Ideal for loading dock areas, it can function as a powered pallet truck, a powered pallet tilter, or a manual turntable. It rolls smoothly on polyurethane steer and load wheels.
| Model # | Images | Description | Attributes | Net Wt.
(lbs) |
|---|
| PI - P - 3000 - 3254 | | Steel Portable Pallet Inverter with Low Profile, 32 In. to 54 In. Fork Opening, 3000 Lb. Capacity, Yellow/Black | Load Capacity (lb.): 3000
Fork Opening (in.): 32 to 54 | 2304 |
| PI - P - SL - 3000 - 3276 | | Steel Portable Pallet Inverter with 32 In. to 76 In Fork Opening, 3000 Lb. Capacity, Yellow/Black | Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76 | 3004 |
Using this portable pallet inverter is easy. First, make sure the batteries are charged. Stand on the rider platform and use the ergonomic handle to control the movement. You can tilt the load with the powered function and rotate it manually. To move between workstations, use the throttle for forward or reverse motion. When you need to stop, just release the handle, and the electromagnetic disc brake will activate automatically. As for maintenance, regularly check the battery level using the gauge. If the battery is low, use the on - board charger to recharge it. Keep the polyurethane wheels clean to ensure smooth rolling. Also, don't forget to check the emergency battery disconnect to make sure it's working properly. Always follow the lead time when ordering to avoid delays.
