Tie Rod Jibs

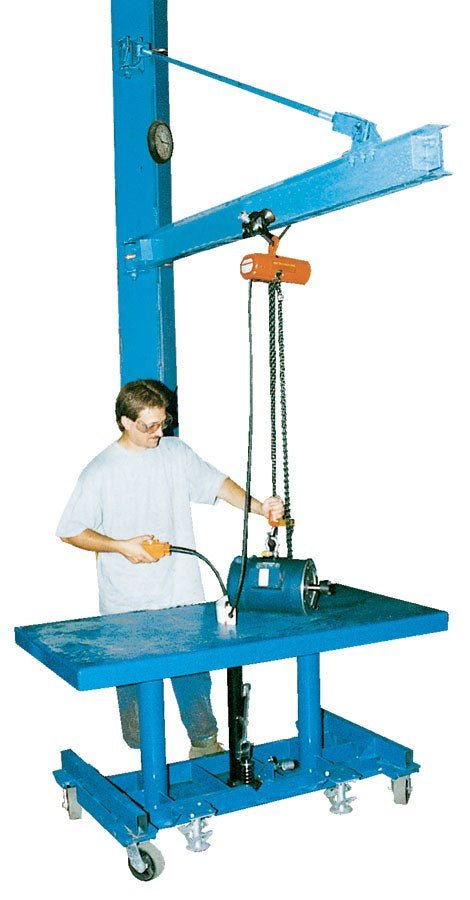

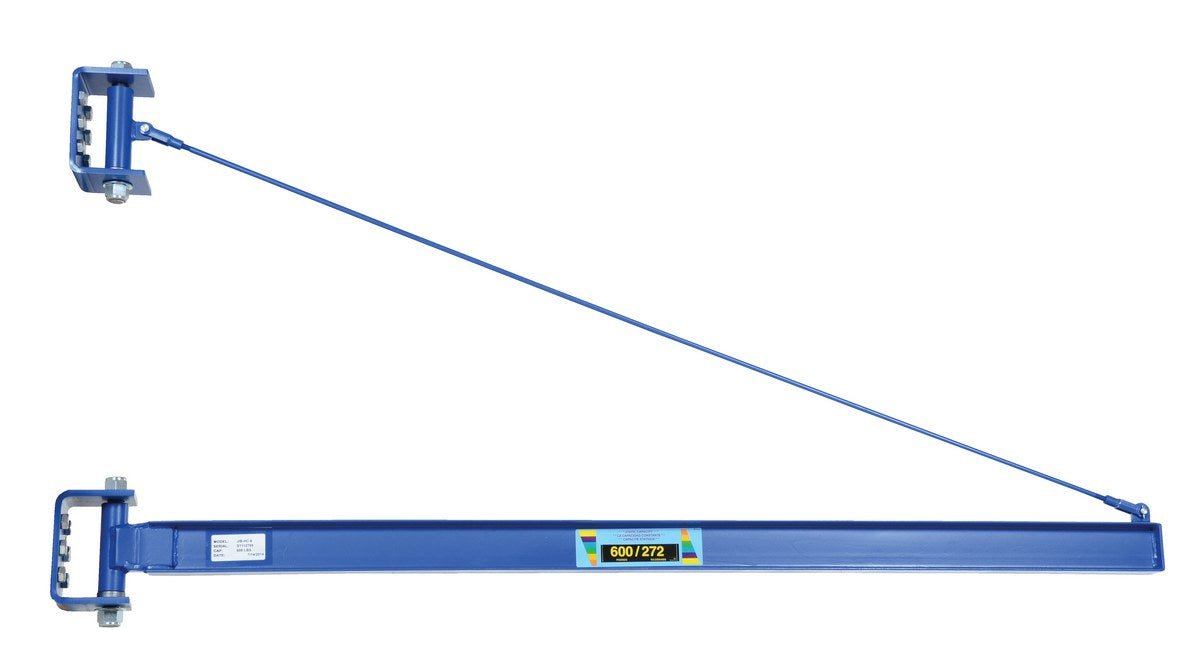

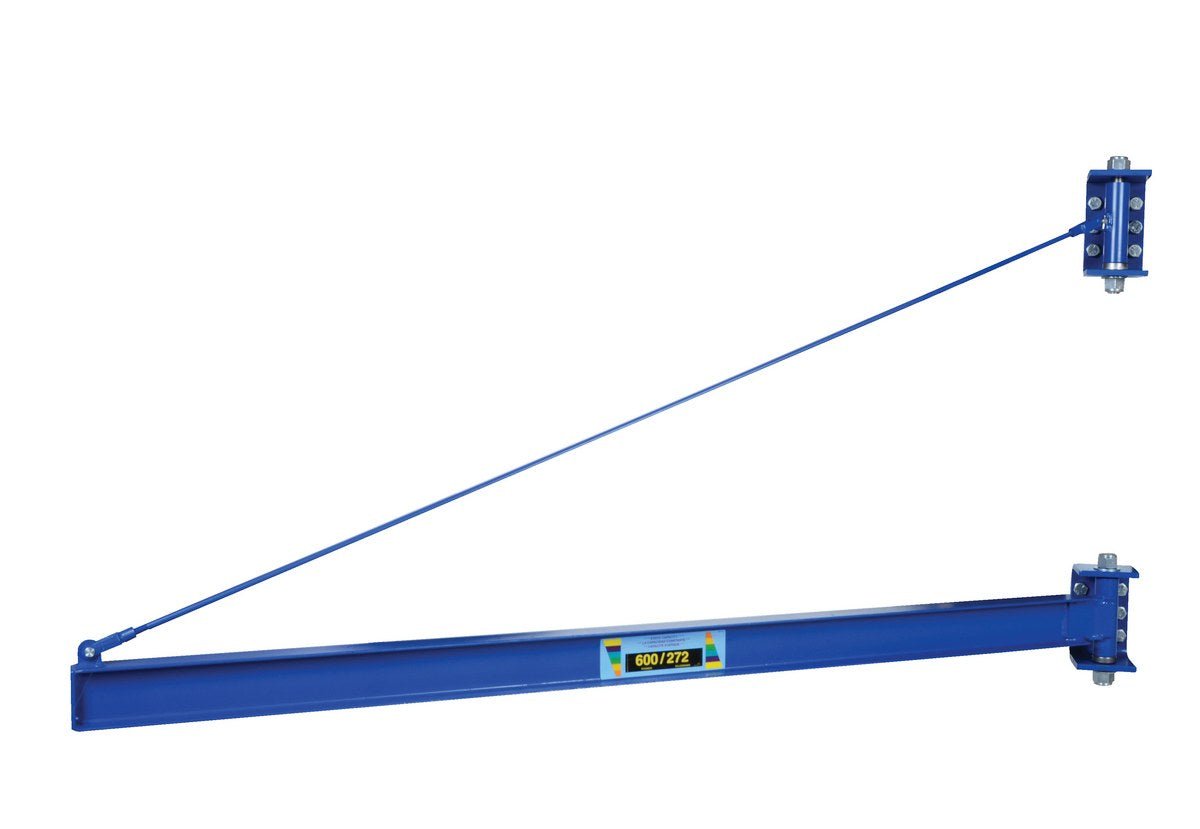

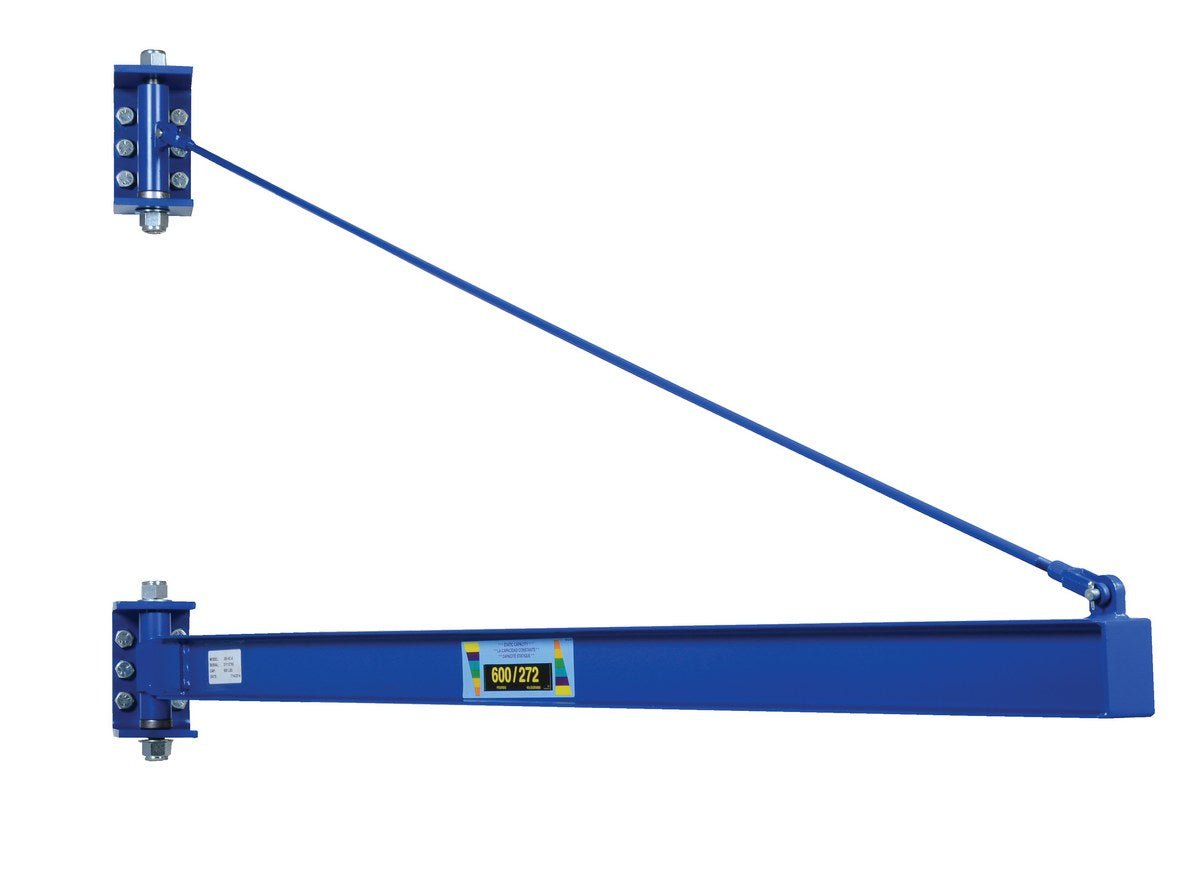

Tie Rod Jibs are ideal for achieving maximum floor space and making use of wasted air space. They can be mounted to walls or columns to increase hook coverage over workstations. The unit rotates 180 degrees, and the usable I - beam length is 79 - 3/4'. Constructed entirely of steel with a painted blue finish, these jibs offer years of reliable service. The hoist and trolley can be ordered separately. All measurements are approximate, and slight variations, tolerances or changes may occur at any time. Shown weights are approximate shipping weights. We have models like JIB - HC - 3 with a 300 - lb capacity, JIB - HC - 6 with a 600 - lb capacity, JIB - HC - 10 with a 1,000 - lb capacity, and JIB - HC - 20 with a 2,000 - lb capacity.

Using these Tie Rod Jibs is easy. First, find a suitable wall or column to mount the jib. Make sure the surface is strong enough to support the weight of the jib and the load it will carry. Once mounted, you can rotate the unit 180 degrees to reach different areas over the workstation. The hoist and trolley, which can be ordered separately, should be installed according to their respective instructions. When using the jib, always check the load capacity. Do not exceed the rated capacity of the specific model you are using. For example, if you have the JIB - HC - 3, do not lift more than 300 lbs. Regularly inspect the jib for any signs of wear and tear, such as cracks in the steel or damage to the painted finish. Clean the jib occasionally to keep it in good condition. If you notice any issues, stop using the jib immediately and contact the manufacturer for advice.
