14 Bandsaw with Stand and Riser Block | PWBS-14CS

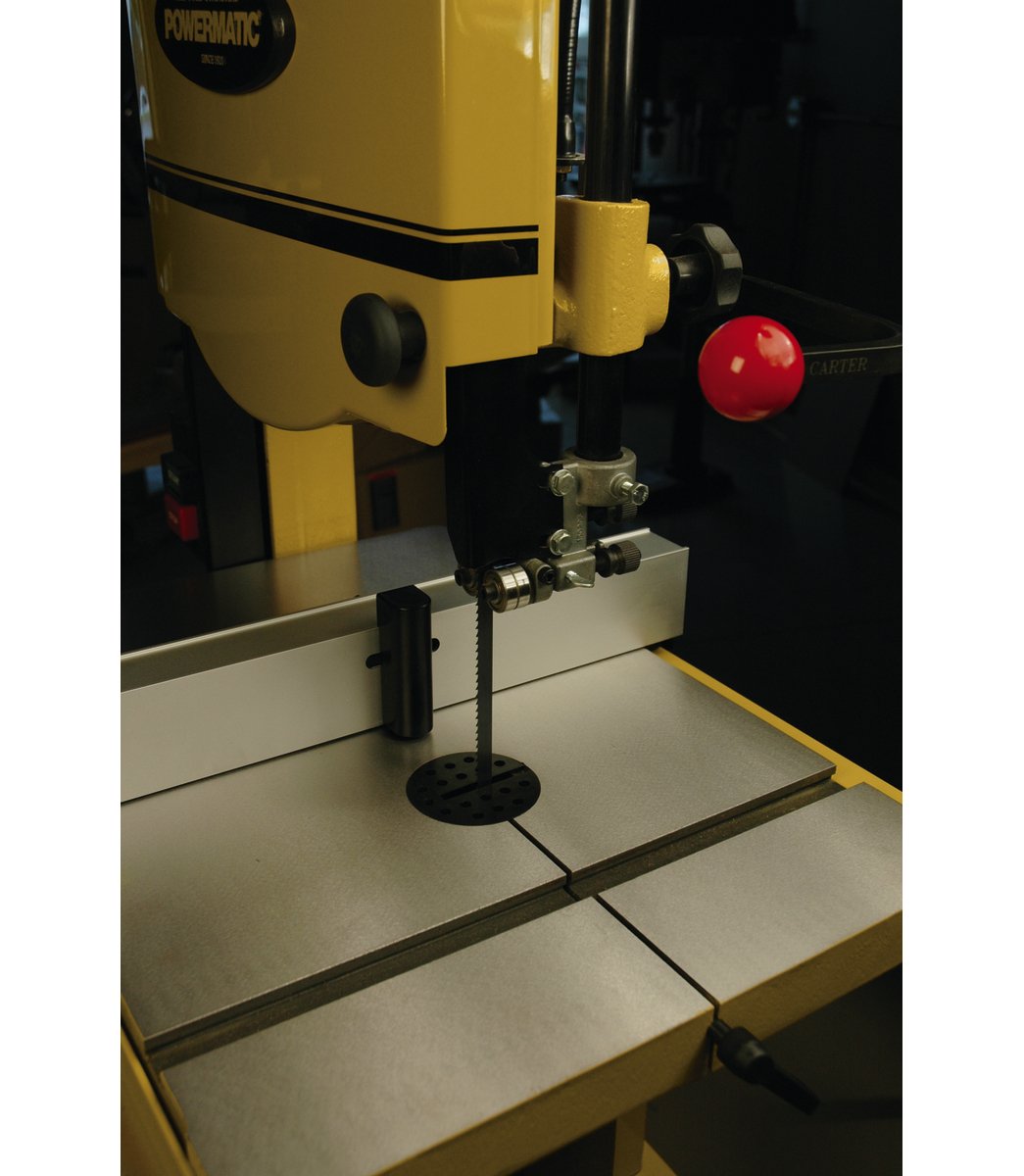

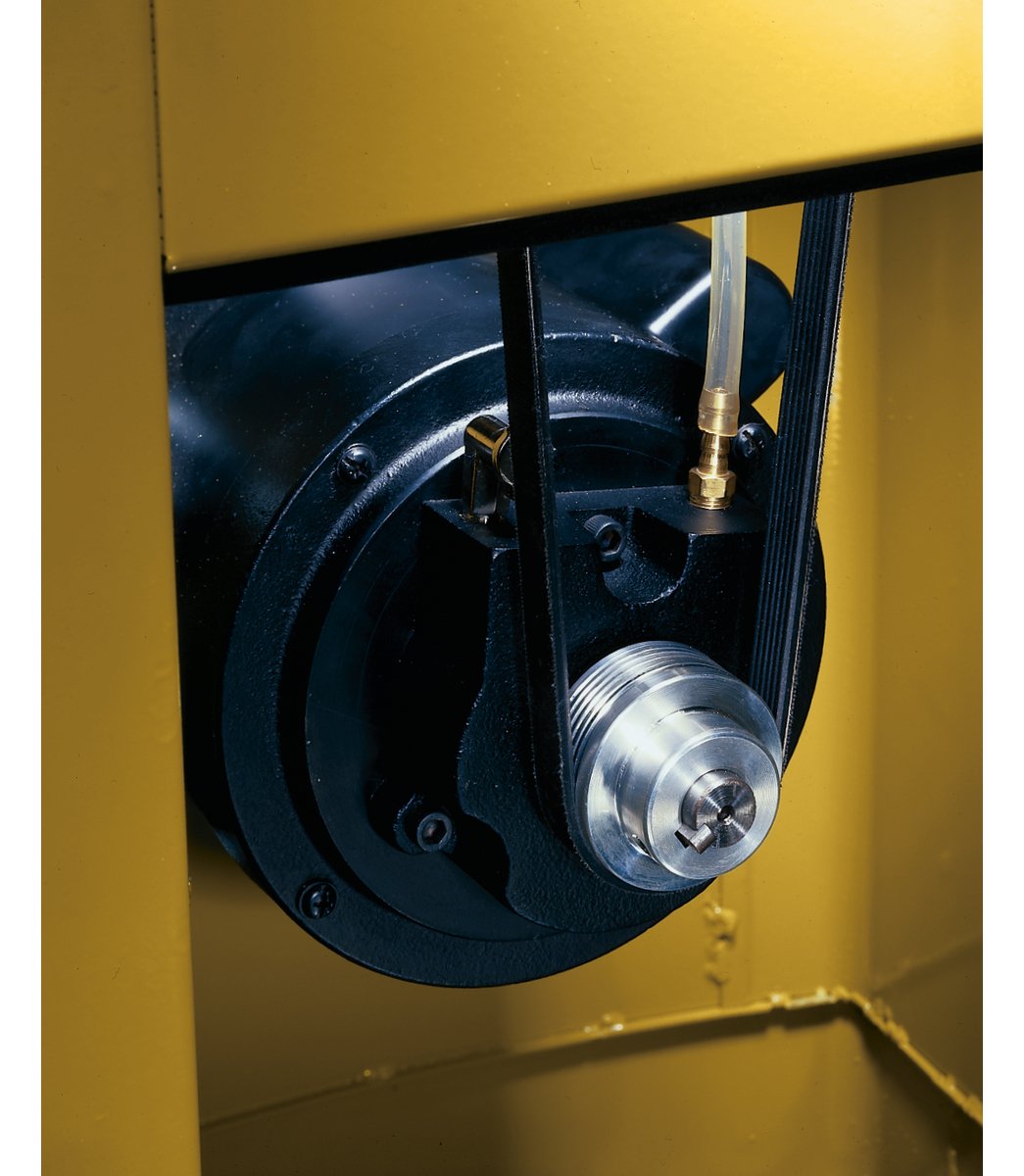

Introducing the PWBS-14CS Bandsaw, a top - notch woodworking tool. It features an extra - large two - piece cast iron table. The table has a 15' x 15' tilting section and a 15' x 5' fixed extension, offering a total working surface of 15' x 20'. The balanced nine - spoke cast iron wheel ensures smooth blade travel, and the Carter™ quick tension release lever simplifies blade changing. There's a micro - adjustable dual bearing blade guide system above and below the table, along with a work lamp and chip blower. The Poly - V belt maximizes power transmission while reducing noise and vibration. It has a 6' under - guide capacity and 13 - 1/2' frame - to - blade clearance. The aluminum rip fence comes with a resaw attachment. Features: - A 60 - watt adjustable lamp (bulb not included) in the body provides direct light on the blade and workpiece during cutting. - The Carter™ quick tension lever speeds up blade changes, and the detension setting extends blade life when not in use. - The chip blower keeps the cut line clean and visible. - The durable micro - adjustable dual bearing blade guide system above and below the table allows for close blade control with less friction. - The tensioning gauge has easy - to - read settings in 'blade width' increments. - It has an exclusively designed, quick - release precision T - square style rip fence with a 4' resaw attachment. - Comes with a 6' riser block. - Precision - balanced nine - spoke cast iron wheels reduce vibration and ensure smoother blade travel. - The rigid one - piece welded stand requires no assembly. - Upper and lower dual ball bearing guides ensure accurate cuts. Specifications: - Stock Number: 1791216K - Band Saw Size/Wheel Diameter (In.): 14 - Blade Length (In.): 93 - 1/2 - Blade Speed (SFPM): 3000 - Dust Collection Minimum CFM Required (CFM): 600 - Dust Port Outside Diameter (In.): 4 - Minimum Saw Blade Width (In.): 1/8 - Motor Phase: 1 - Motor Power (HP): 1.5 - Motor Voltage (V.): 115/230 - Prewired Voltage (V.): 115 - Prop 65: None - Recommended Circuit Size (Amps.): 30/20 - Table Height from Floor (In.): 44 - Table Tilt (Deg.): 45 Right / 10 Left

Using your PWBS - 14CS Bandsaw is easy. First, make sure it's plugged into the right voltage (it's pre - wired for 115V, but can also use 230V). Check the blade tension using the easy - to - read gauge. You can change the blade quickly with the Carter™ quick tension release lever. Before you start cutting, adjust the table tilt according to your needs, it can tilt 45 degrees to the right and 10 degrees to the left. Turn on the 60 - watt adjustable lamp (you'll need to get the bulb) to have good light on your workpiece. The chip blower will keep the cut line clear. When it comes to maintenance, keep the blade clean. After each use, turn off the saw and let it cool down. Check the Poly - V belt regularly for any signs of wear. The dual ball bearing guides don't need much, but make sure they are in good condition. If you're not using the saw for a while, use the detension setting on the Carter™ lever to extend the blade life. Safety first! Always wear safety goggles and ear protection. Don't wear loose clothing that could get caught in the saw. Make sure the stand is on a flat, stable surface. And never touch the blade when the saw is running.
