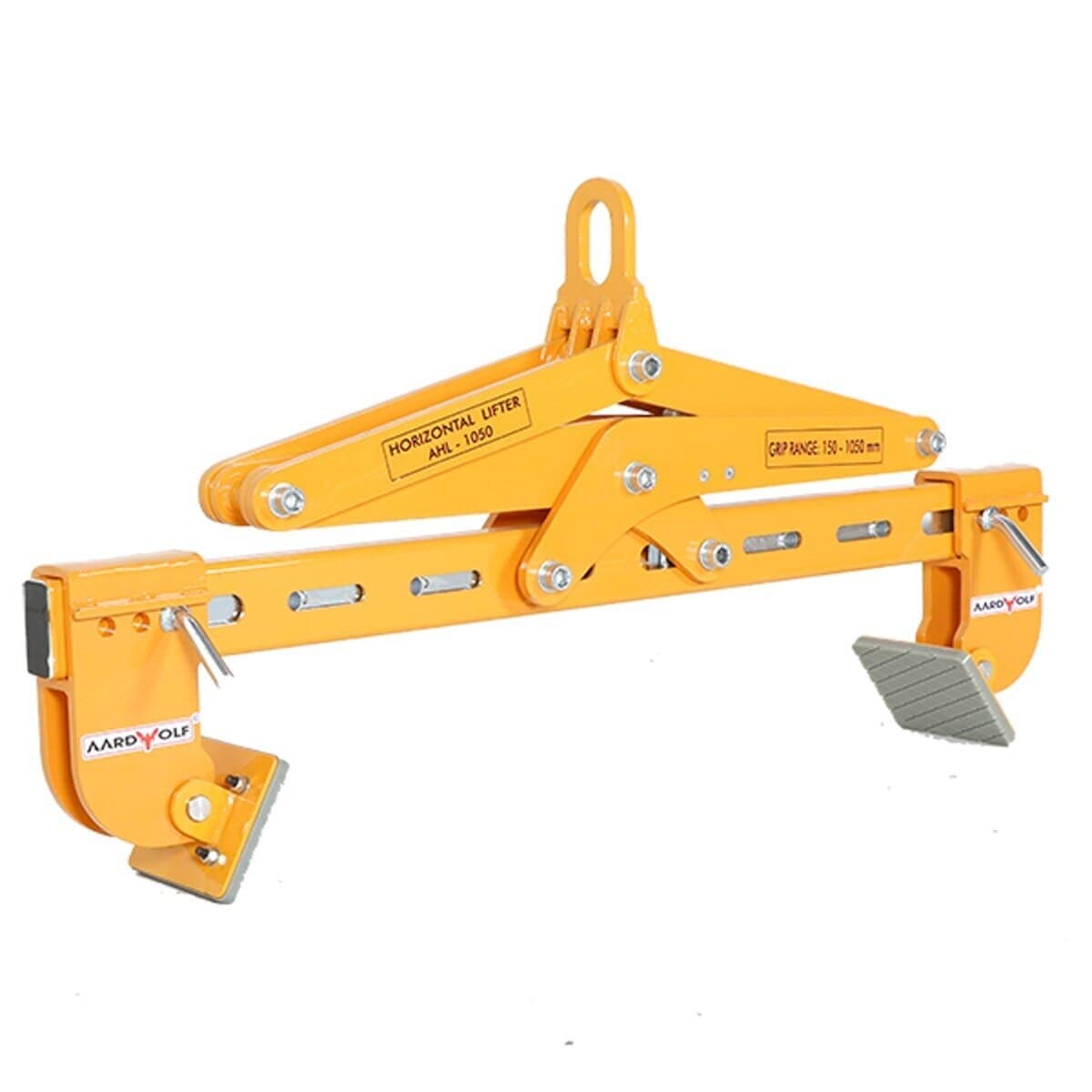

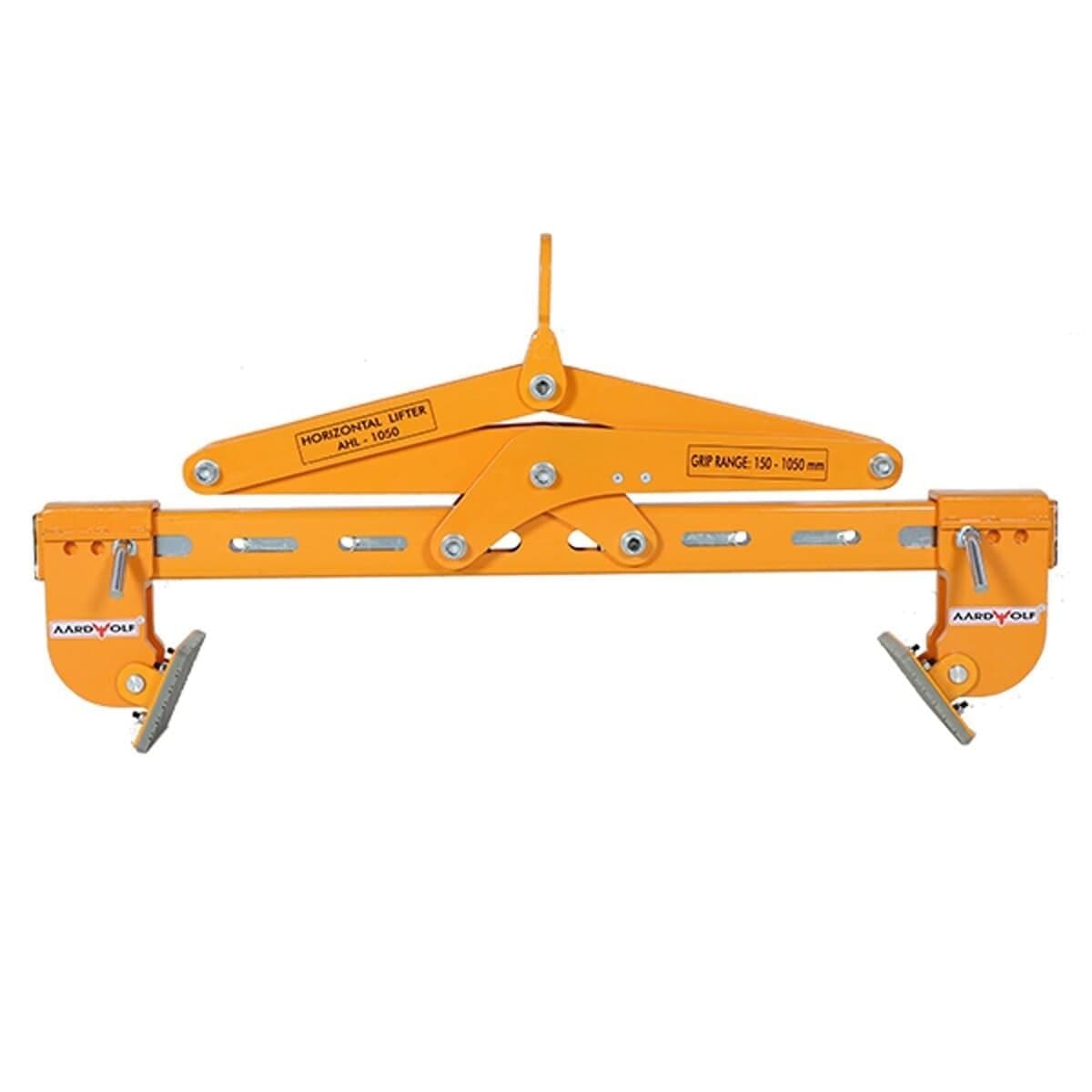

The Horizontal Stone Lifting Clamp is an adjustable scissor - type clamp. It has a wide gripping range and can lift concrete and stone horizontally with ease.
Designed for horizontal lifting of concrete and natural stone, the Aardwolf Horizontal Stone Lifting Clamp - 1050 features an auto - release latch. Once the load is fully lowered to the ground, the lifter is automatically released from the load.
Key Features
- Adjustable opening width for versatile use
- Large gripping range suitable for various applications
- Long - lasting, high - friction replaceable polyurethane gripping pads
- Lifting eye for easy attachment to crane hooks
- Auto - locking and unlocking of the load
- Vulcanized rubber pads for better grip
Specifications

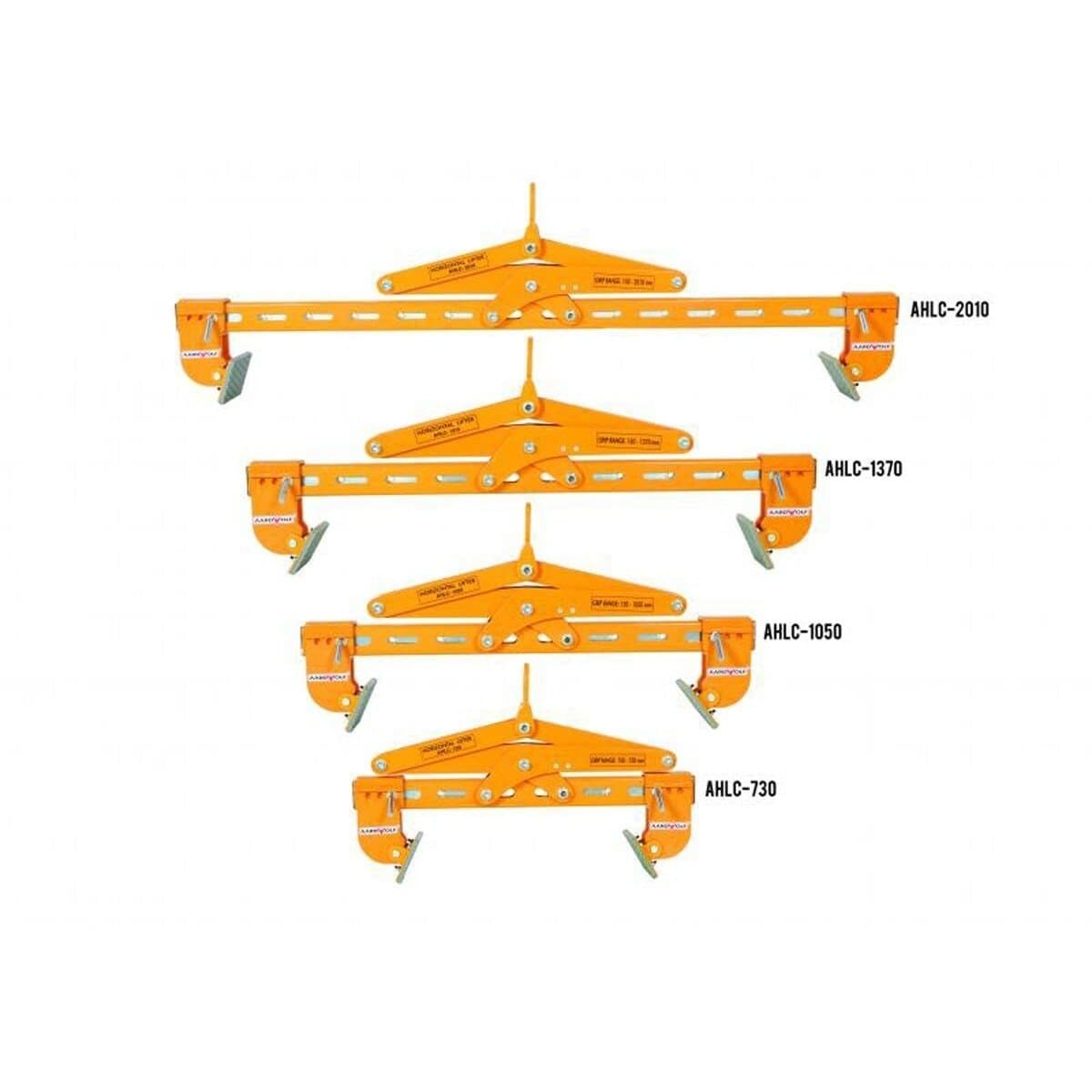

| Model | Grip Range | Lifting Capacity | Weight of Lifter |
| AHLC - 730 | 11' - 28' | 3307 | 247 |
| AHLC - 1050 | 11' - 41' | 3307 | 267 |
| AHLC - 1370 | 11' - 54' | 3307 | 273 |
| AHLC - 2010 | 11'' - 79'' | 3307 | 302 |
| AHLC - 2010 - 4 | 12'' - 79'' | 8818 | 503 |
Using the Aardwolf Horizontal Stone Lifting Clamp is easy. First, adjust the opening width according to the size of the stone or concrete you want to lift. Then, attach the lifting eye to the crane hook. Place the clamp on the load and let it auto - lock. Once the load is in position, lower it to the ground, and the auto - release latch will free the clamp from the load. When using, make sure the load is within the specified lifting capacity. Check the gripping pads regularly for wear and tear, and replace them when necessary. Keep the clamp clean and dry to prevent rust and extend its lifespan.
