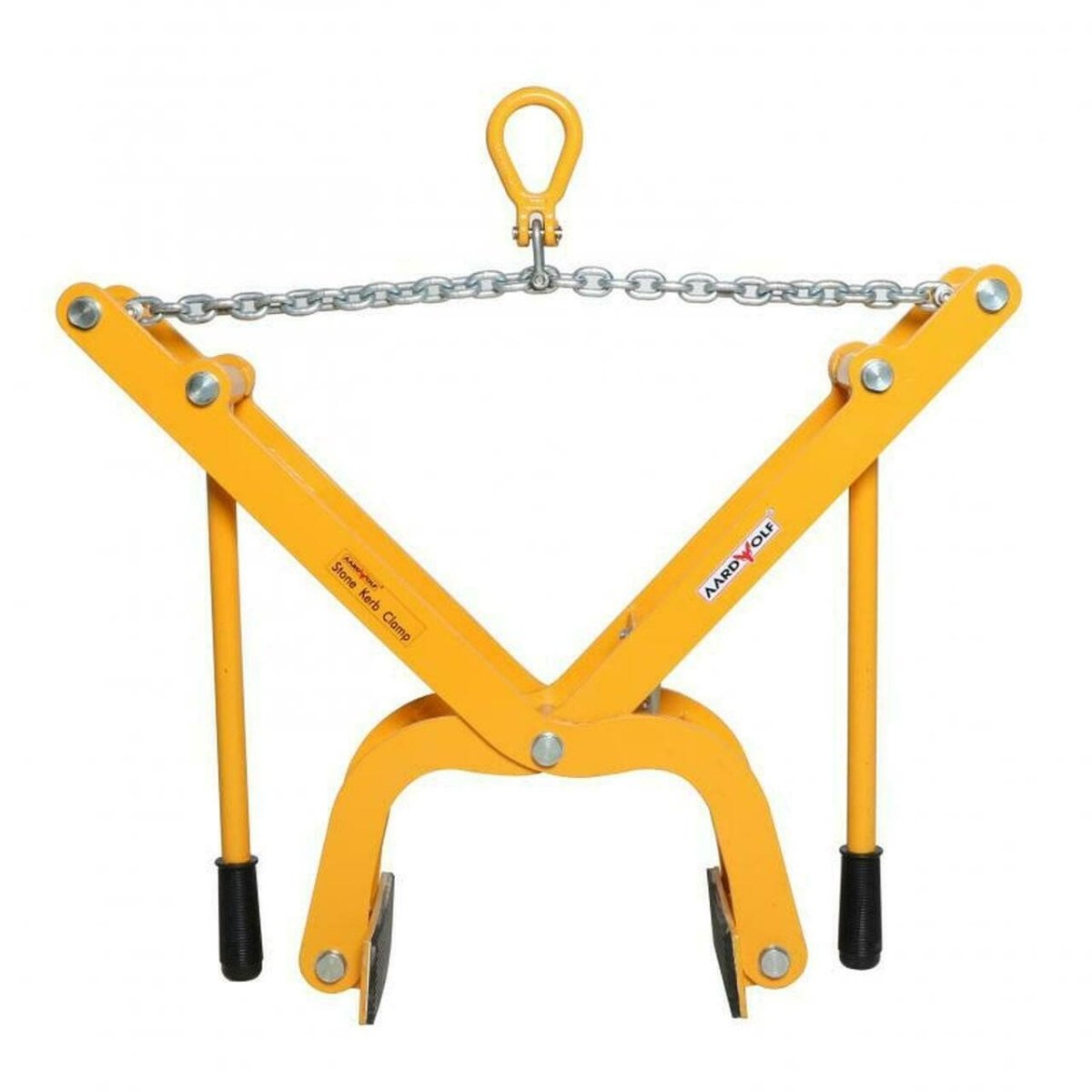

Versatile Kerb Clamp for Effortless Concrete and Stone Lifting
General

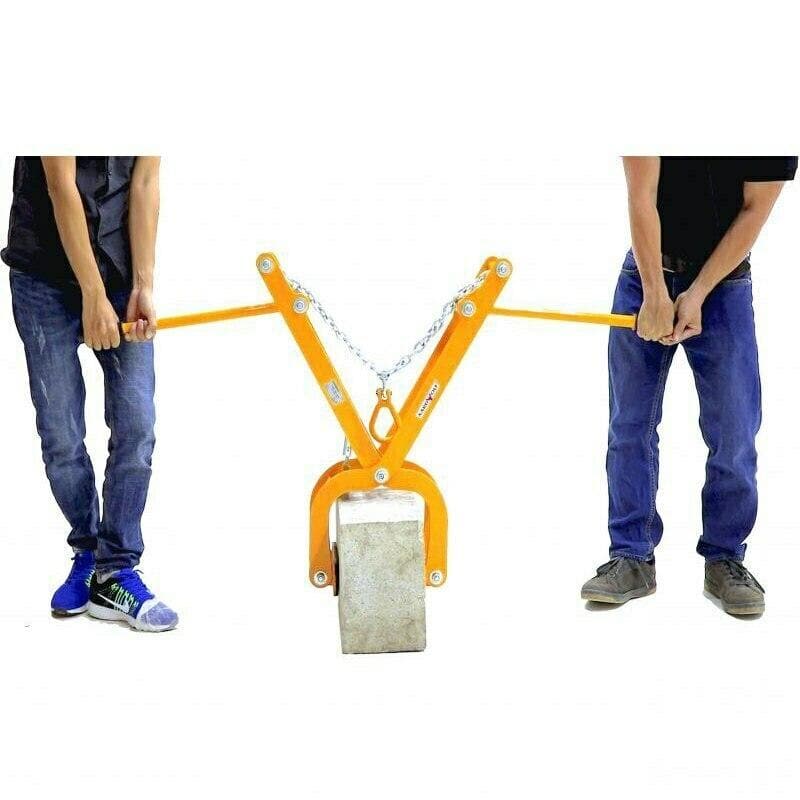

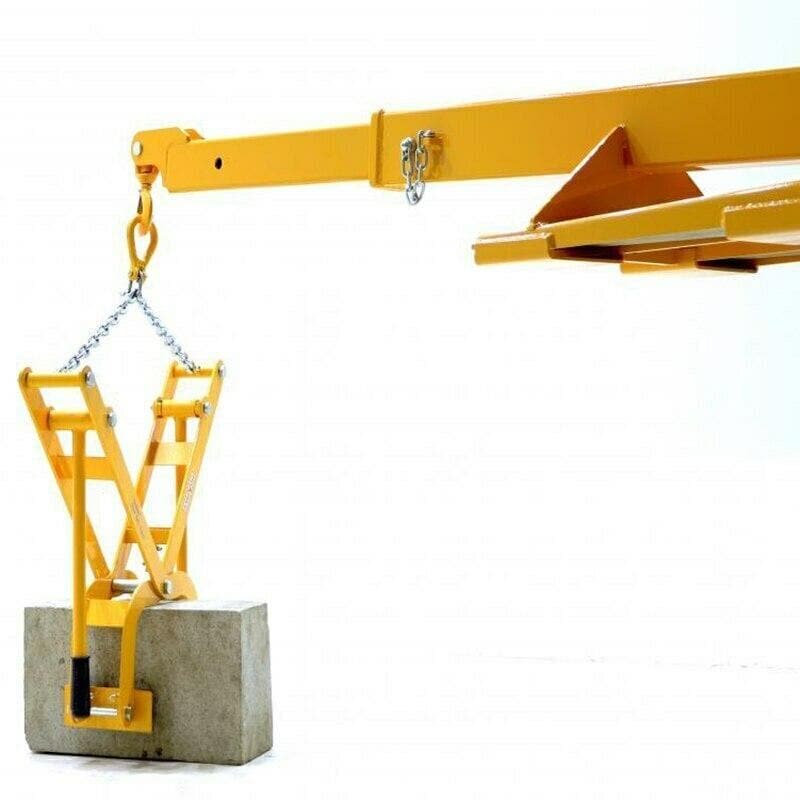

This two - person block clamp is perfect for a wide variety of handling jobs. It's great for lifting and moving concrete and granite kerb stones used in road construction, as well as heavy building blocks. You can attach the center chain to heavy - lifting machines for more power.
Features
- The powder - coated frame effectively resists corrosion and rust, ensuring long - term durability.
- Tilting pads provide maximum grip, making your lifting tasks safer and easier.
Specifications
| | |
| Grip range | 0 - 260 | 0 - 10'' |
| Working load limit | 200 | 441 |
| Net weight | 23 | 51 |
| Gross weight | 24 | 53 |
| Packaging dimension | 860x390x210 | 33.9''x15.4''x8.3'' |
Using the Aardwolf Stone Kerb Clamp is easy. First, make sure the object you're lifting is within the grip range of 0 - 260 mm (0 - 10 inches). Then, position the clamp on the stone or concrete block and adjust the tilting pads for a good grip. Attach the center chain to your lifting machine. When using, don't exceed the working load limit of 200 kg (441 lb). For maintenance, regularly check the powder - coated frame for any signs of damage. If there are scratches, you can touch up the coating to prevent rust. Store the clamp in a dry place when not in use to keep it in good condition.
