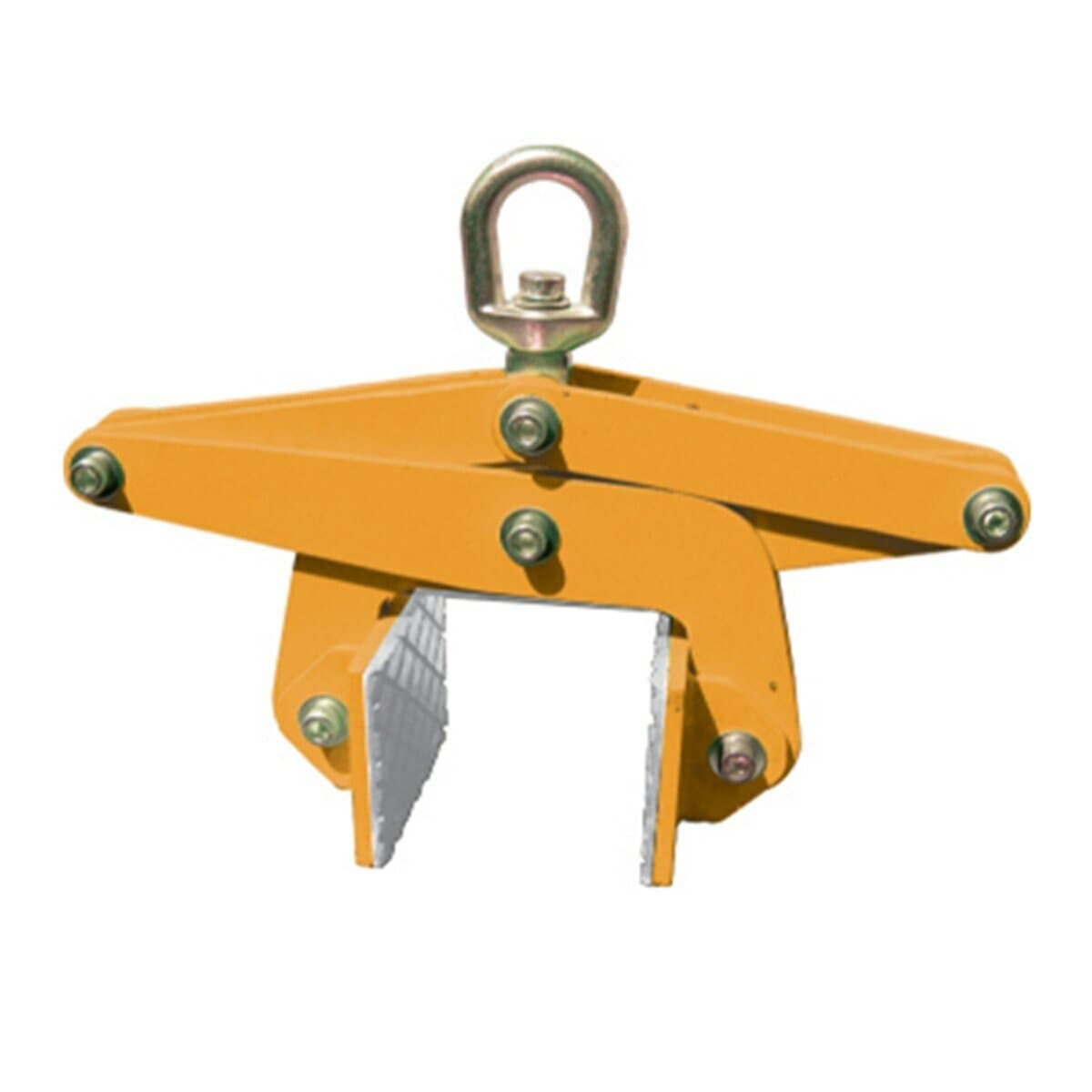

The Abaco SC100AL-M2 Scissor Clamp is an essential tool for lifting slabs, curbs, median walls, barriers, and tomb stones. Its jaws are lined with long - lasting and fully vulcanized natural rubber pads, which ensure a safe and non - marking grip. This scissor clamp offers a reliable solution for construction and related industries. Here is a comparison chart of different Abaco Scissor Clamp models:
Model | SC100AL-M2 | SC100 | SC150 | SC350 | SC400 |
Length (In (mm)) | 21 1/4 (540) | 21 5/16 (542) | 23 1/4 (590) | 22 5/8 (575) | 28 1/8 (715) |
Width (In (mm)) | 7 1/16 (180) | 7 1/16 (180) | 9 13/16 (250) | 9 13/16 (250) | 7 1/16 (180) |
Height (In (mm)) | 15 3/4 (400) | 15 3/4 (400) | 17 5/16 (440) | 20 1/2 (520) | 18 7/8 (480) |
Grip Range (In (mm)) | (3/8 ~ 3 15/16) (10 ~100) | (3/8 - 3 15/16) (10 - 100) | (1 3/16 - 5 7/8) (30 - 150) | (5 7/8 - 13 3/4) (150 - 350) | (7 7/8 - 15 3/4) (200 - 400) |
Net Weight (lbs (kg)) | 46.2 (21) | 46.2 (21) | 70.4 (32) | 125.4 (51) | 103.4 (38) |
W.L.L. (lbs (kg)) | 2860 (1300) | 2800 (1300) | 3300 (1500) | 3520 (1600) | 2420 (1100) |
Using the Abaco SC100AL - M2 Scissor Clamp is quite simple. First, check the object you want to lift to make sure its thickness falls within the grip range of the clamp. Then, open the jaws of the clamp and place them around the object. Make sure the rubber - lined jaws are firmly in contact with the surface of the object. Once it's in place, you can start the lifting process. As for maintenance, regularly check the rubber pads on the jaws. If they show signs of excessive wear, consider replacing them. Also, keep the clamp clean and dry to prevent rust. And always make sure not to exceed the W.L.L. (Working Load Limit) of the clamp. This will ensure safe and efficient use of the scissor clamp.
