Effortlessly Drill Holes Up to 4' Diameter in Concrete or Stone, Wet or Dry!

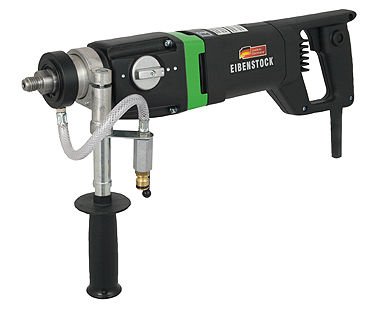

A high-torque heavy-duty diamond core drill for both wet and dry use
- Designed with a mechanical slip clutch
- Two load speeds: 0 - 800/0 - 1570 RPM
- Perfect for hand-held drilling in brick, block, stone, concrete, reinforced concrete, and asphalt
- Quickly drill blind anchor holes or thru holes
- Drill up to 3' diameter by hand, and up to 4' diameter when rig-mounted
Key Features
- Mechanical safety slip clutch for protection
- Thermal overload switch to prevent overheating
- Water swivel collar for efficient water flow
- Two-speed oil bath gearbox for optimal lubrication
- Water supply on the gearbox extension
- Temperature control, GFCI overcurrent cut-off, and optical overload indication
- Adjustable side handle for comfortable use
- Comes with a metal carrying case for easy transport
- 5/8' x 11 UNC and 1 - 1/4 x 7 UNC connecting threads
Using the ETN 2001 P is straightforward. First, choose the appropriate speed according to your drilling task - 0 - 800 RPM or 0 - 1570 RPM. If you're doing wet drilling, connect the water supply to the water swivel collar and the water supply on the gearbox extension. You can use it handheld for holes up to 3' in diameter, or mount it on a rig for larger holes up to 4' in diameter. When drilling, make sure to keep the drill steady and let the bit do the work. For safety, the drill has a mechanical safety slip clutch and a thermal overload switch. If the drill overheats or experiences an overload, the thermal overload switch will cut off the power and the optical overload indication will show. After use, clean the drill and store it in the provided metal carrying case. Regularly check the oil level in the two - speed oil bath gearbox for optimal lubrication. Keep the drill in a dry place to prevent rust and damage.
