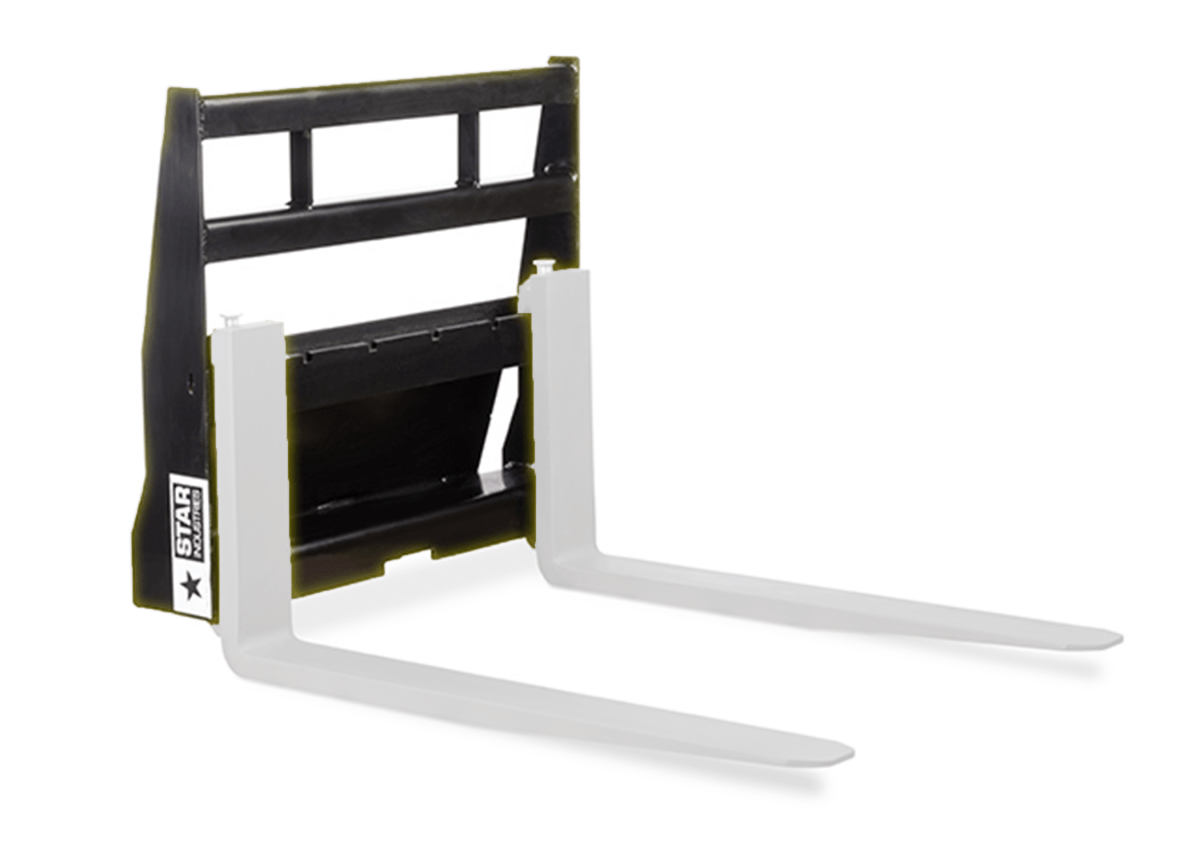

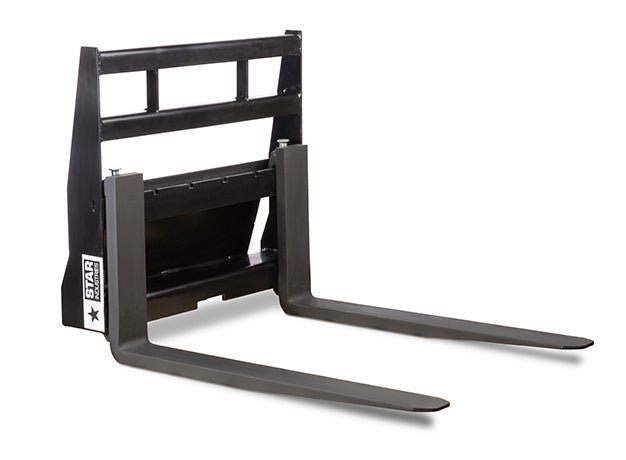

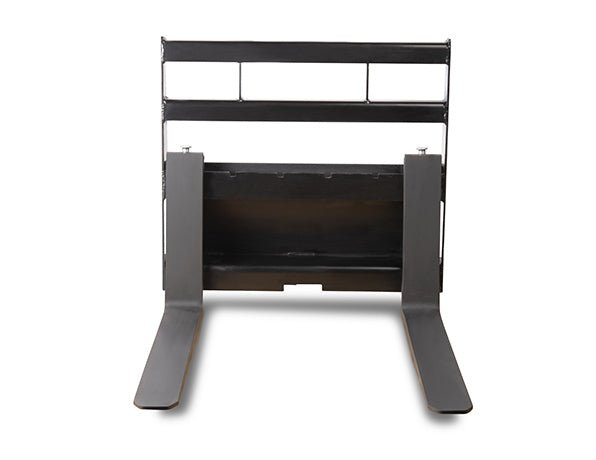

ITA - style Captive Fork Frame Design
Transform your mini skid - steer into a powerful forklift using Star Industries' Mini Fork Frame. We offer ITA - style fork frames that are compatible with all well - known mini - skid steer brands. These fork frames come with big load capacities, making them ideal for heavy - duty tasks. They are constructed with all - welded steel, ensuring long - lasting durability. The ITA - style locking mechanism prevents the forks from swinging out when dumping loads, providing enhanced safety and stability.
Frames
| Model | Fits | Capacity | Class | Width | Height | Empty Weight |
|---|
| 110 - MINI - ITA | Dingo, Ditchwitch, Vermeer, Boxer, Ramrod | 2,800 lbs | ITA Class 1 | 30.5” | 27.5” | 119 lbs |
| 110 - MINIBC - ITA | Mini Bobcat | 2,800 lbs | ITA Class 1 | 30.5” | 27.5” | 119 lbs |

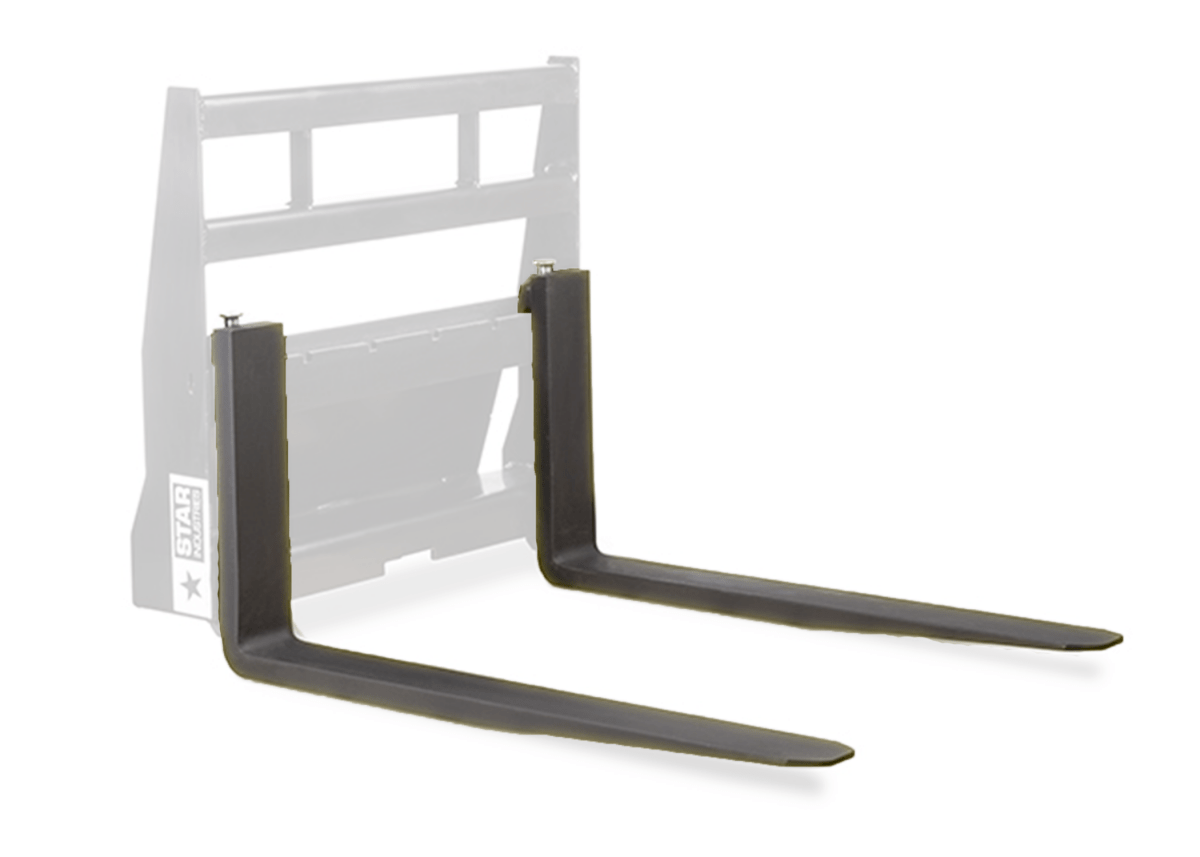

Forks
| Fork Model | Fork Size | Capacity | Class | Load Center |
|---|
| F136x4x36CL1 | 1.36”x4”x36” | 3,740 lbs per pair | ITA Class 1 | 24” load center |
| F136x4x42CL1 | 1.36”x4”x42” | 3,740 lbs per pair | ITA Class 1 | 24” load center |
Using these mini skid - steer forks and frames is easy. First, make sure your mini skid - steer is compatible with the frame model. Attach the frame securely to your skid - steer according to the manufacturer's instructions. Then, insert the forks into the frame. When loading, be careful not to exceed the load capacity of the forks and frame. Keep the load centered at the specified load center for safe operation. When not in use, store the forks and frame in a dry place to prevent rust. Regularly check the welded joints for any signs of damage or wear. If you notice any issues, stop using the equipment immediately and have it inspected or repaired.
