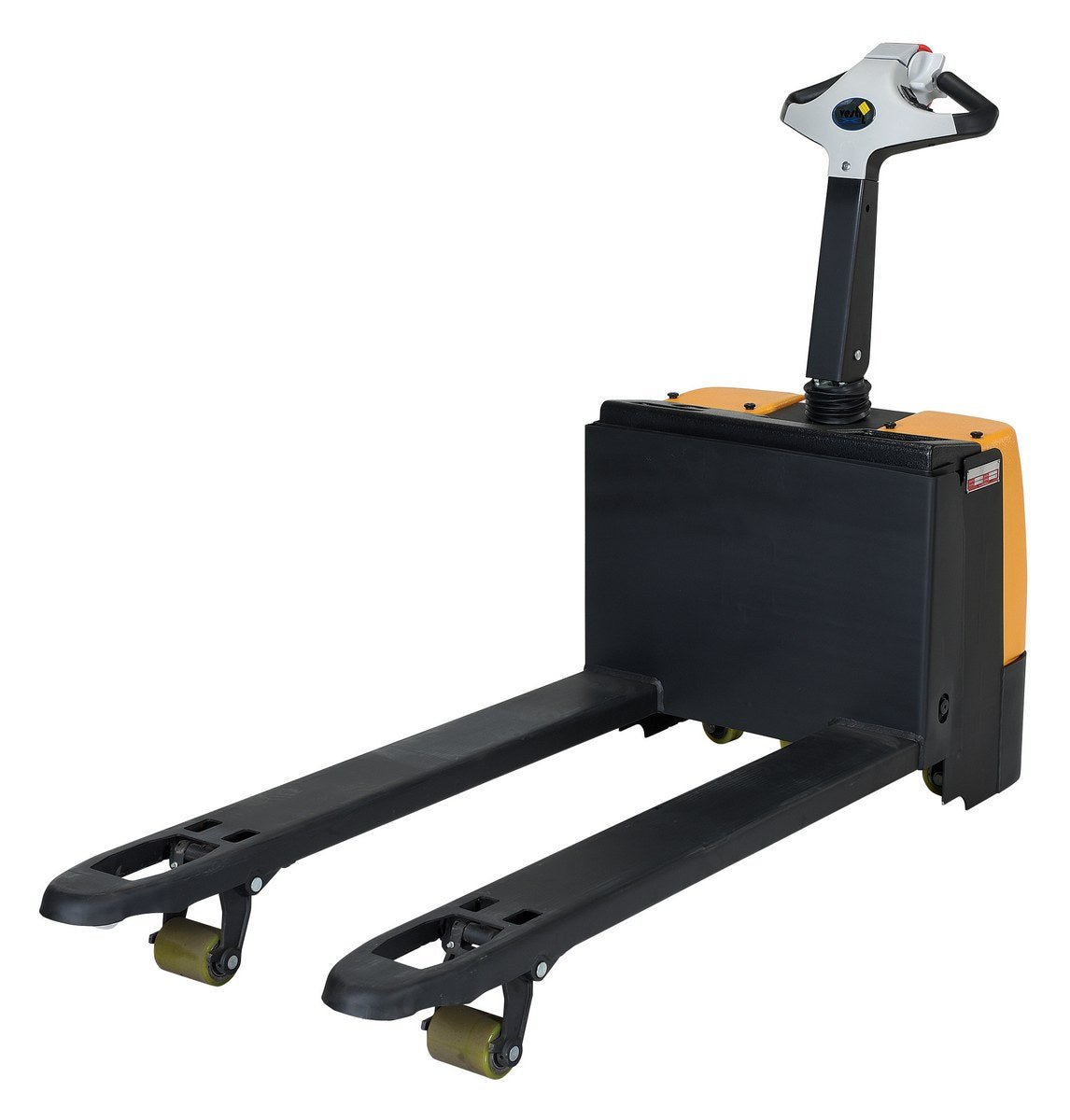

The Fully Powered Electric Pallet Truck offers effortless and rapid operation. With just a button - press, you can raise and lower loads. Ideal for maneuvering loads in warehouses and trailers, it features reinforced welded forks with adjustable tie - rods for long - lasting service. High - torque 24V DC drive and lift motors handle heavy - duty tasks with ease. The ergonomic handle has an easy - to - operate throttle for infinite adjustment of forward and reverse speeds, lift/lower controls, a unique safety - enhancing emergency reverse function, and a horn. An electromagnetic disc brake with an automatic dead - man feature activates when the user releases the handle.
The 3,000 and 3,300 - pound units use two 12V batteries, an integral battery charger, and a battery level gauge. They roll smoothly on poly - on - steel steer and load wheels, with a 0.7 KW drive and 1.3 KW lift motor. Get 3 - 4 hours of operation at full charge and 8 hours when used intermittently.
The 4,500 - pound unit uses four 6V batteries, an integral battery charger, a battery level gauge, and an emergency battery disconnect. It also rolls smoothly on poly - on - steel wheels, featuring a 1.2 KW drive and 1.3 KW lift motor. Enjoy 6 - 7 hours of operation at full charge and 8 hours when used intermittently.
The emergency reverse belly switch, when actuated, instantly reverses the direction and moves the unit forward until the switch is released or after 1.5 seconds. A built - in safety circuit disables the unit if the switch is activated for more than 1.5 seconds, and the unit must be reset to return to normal operation. This advanced safety device provides excellent operator protection. All measurements are approximate, and weights are approximate shipping weights.
Using your Fully Powered Electric Pallet Truck is a breeze. First, make sure the battery is charged. You can check the battery level gauge. For raising or lowering loads, simply press the relevant buttons on the ergonomic handle. To move the truck forward or backward, use the throttle on the handle and adjust the speed as you need.
When using the emergency reverse belly switch, be aware that it will move the truck forward for up to 1.5 seconds. If it's activated for more than 1.5 seconds, the unit will shut down, and you'll need to reset it.
For maintenance, regularly check the batteries. Charge the 3,000 and 3,300 - pound units' two 12V batteries or the 4,500 - pound unit's four 6V batteries as needed. Inspect the poly - on - steel wheels for any signs of wear. Also, check the reinforced welded forks and adjustable tie - rods for damage. Keep the truck clean and store it in a dry place when not in use.
