A reliable core drilling machine ideal for all installation holes in heating, air - conditioning, ventilation, electrical, and water systems up to 10 inches (250 mm).

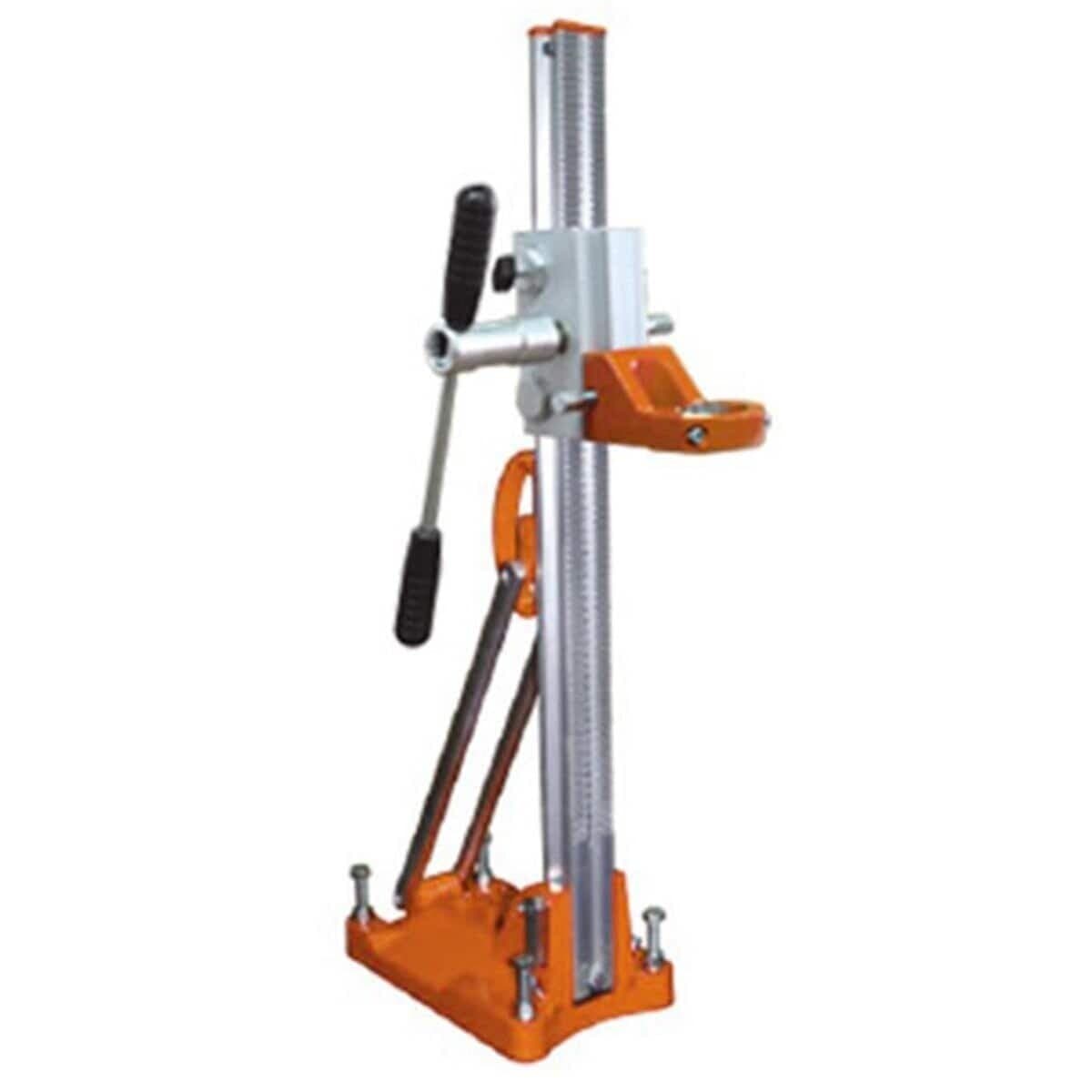

Drill stand only. This lightweight aluminum drill stand comes with a 2 - speed core drill motor and an anchor/vacuum base.
- Light and sturdy drill stand weighing 26.5lbs (12 kg)
- Travel length of 26' (650 mm)
- Maximum diameter of 10' (250 mm)

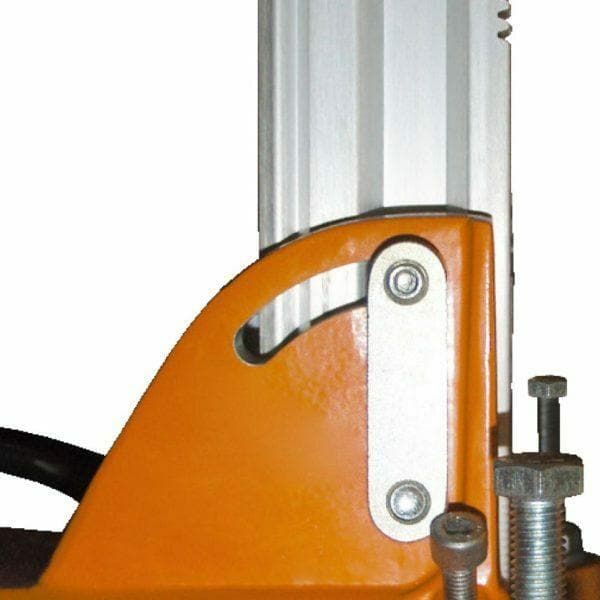

- Angle drilling device up to 45°
- Bubble levels for precise setup
- Can be operated by left - or right - handed users
- Laser pointer for accurate setup

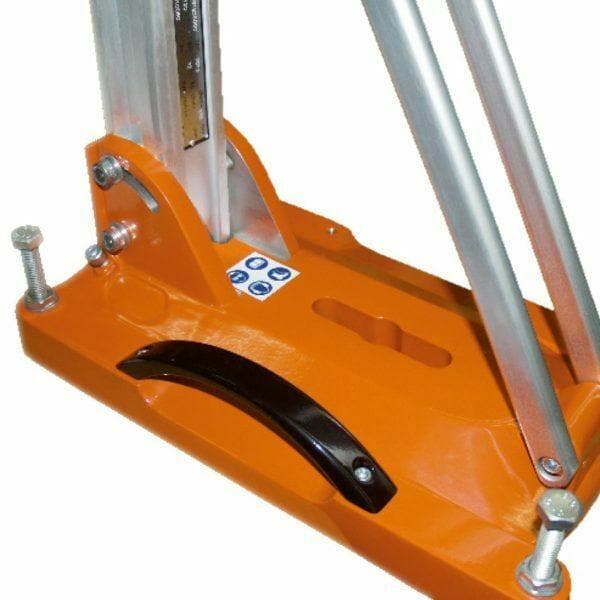

- Aluminum anchor/vacuum base
Specifications
| DS250S GBM27 |
| Motor | GBM27 |
| Voltage | 110V, 50 - 60 Hz |
| Power | 2,5 kW (1,75 kW) |
| RPM | 230/500/1030 min - 1 |
| Drilling Diameter | Ø 10' (250 mm) |
| Drill bit connection | 1¼' UNC |
| Water connection | Gardena |
| Order number | 0295 125 9100 |
Using the Golz DS250S Core Drilling Rig Stand is easy. First, choose a flat surface and set up the stand using the bubble levels and laser pointer for a precise setup. You can use either the anchor or vacuum base depending on your surface type. Connect the drill bit using the 1¼' UNC connection and the water source via the Gardena connection. The 2 - speed core drill motor gives you options for different drilling needs. When using, make sure to keep the drill at the right angle, and you can adjust it up to 45° with the angle drilling device. Remember to always check the voltage requirements. This machine works with 110V, 50 - 60 Hz. For maintenance, after each use, clean the drill stand and motor. Regularly check the drill bit for wear and tear and replace it when necessary. Store the stand in a dry place to prevent rusting. Whether you're left - or right - handed, you can comfortably operate this drill stand.
