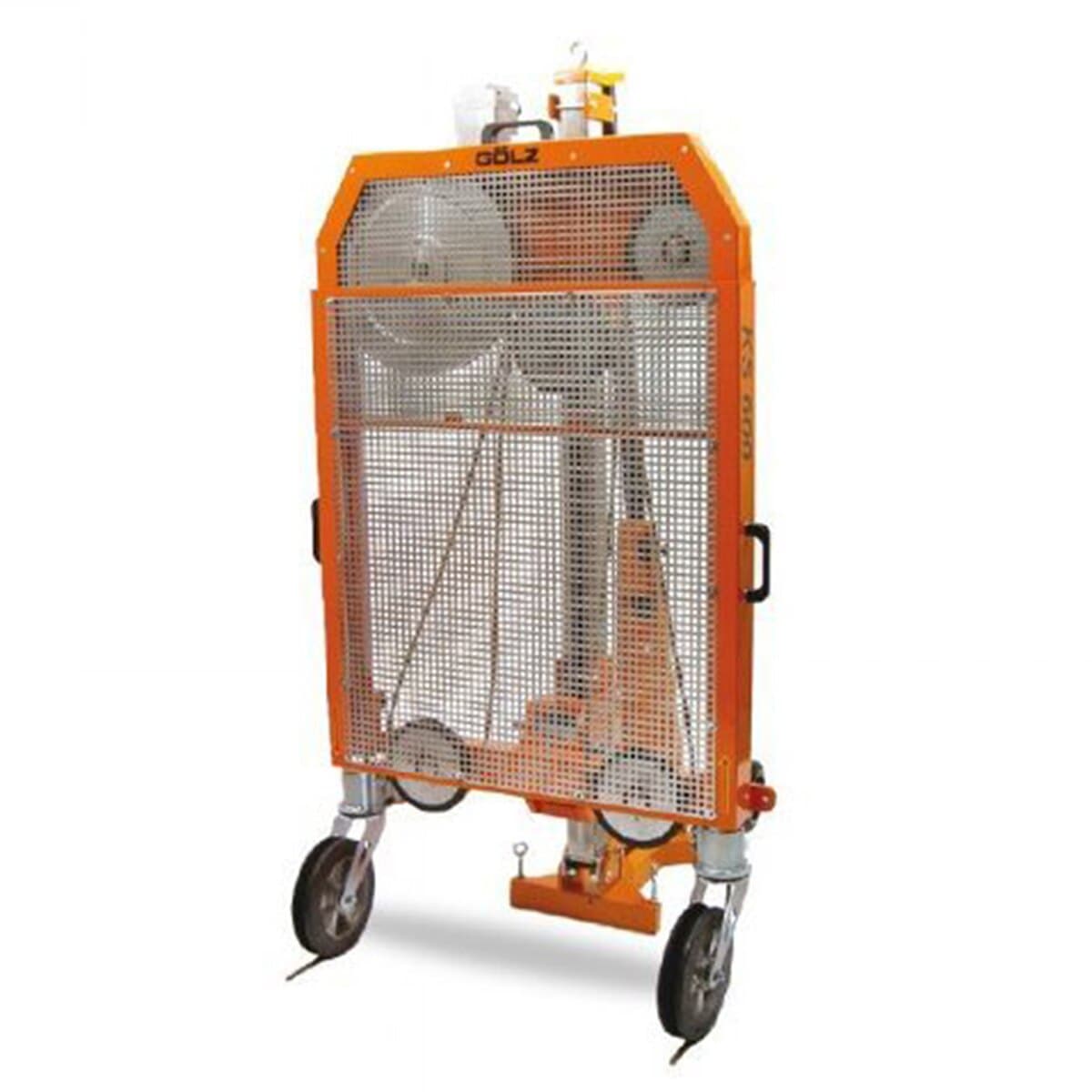

Golz KS600 Wire Saw

KS600 is a compact and high - performing wire saw ideal for construction structures. It offers both safe and clean dry and wet wire sawing operations.

It's the most efficient choice for wire sawing in reinforced concrete and brickwork. Based on the modular Golz system, it can be set up quickly and can be converted to a core drill rig in just a few minutes.

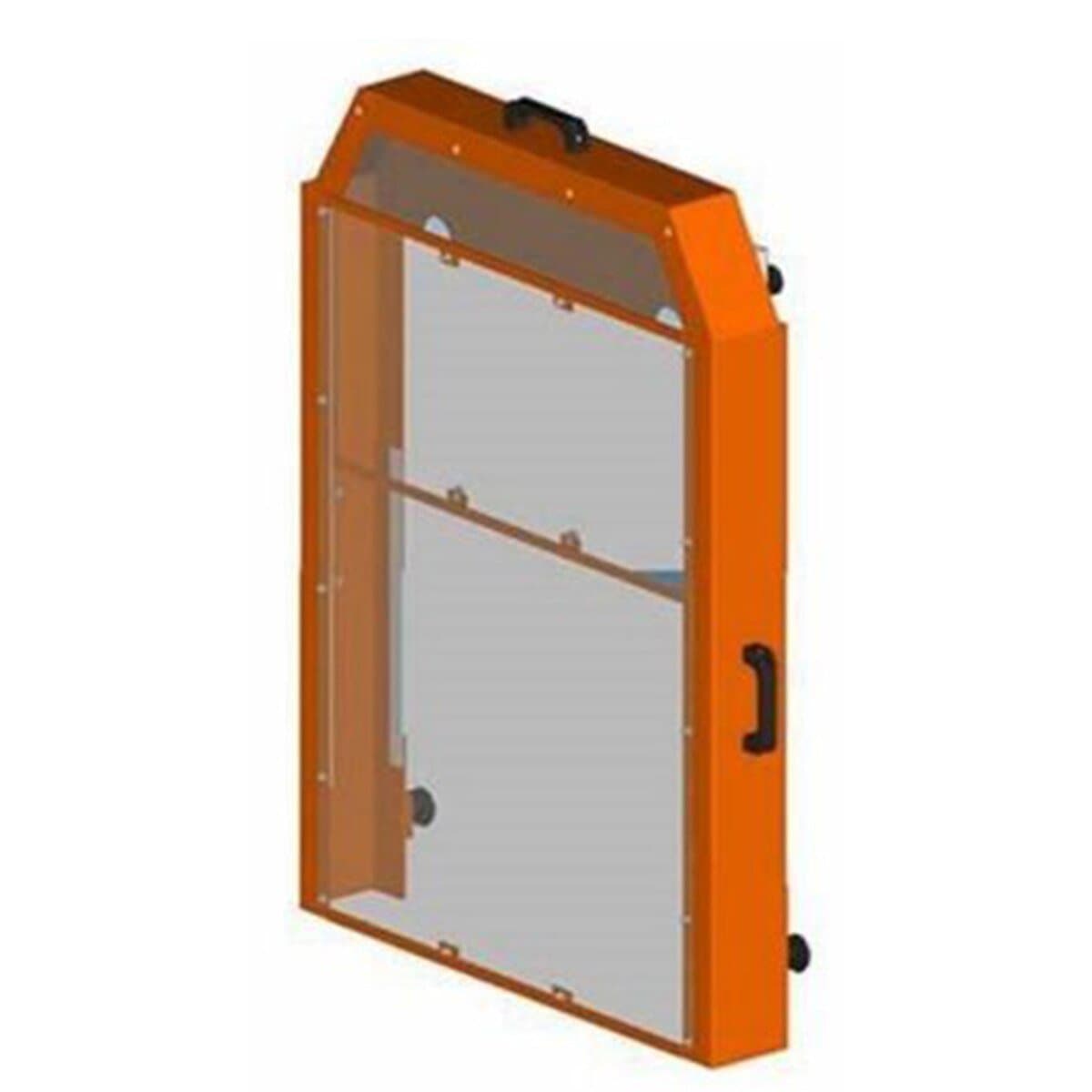

The wire saw is based on the KB500 core drill rig. With its modular quick - release system, it's easy to set up. The drive motor and feed motor can be attached simply using quick connectors. It has a 5.5 - meter wire storage. By directly attaching the wire saw to the cutting surface, it ensures quick, reliable, and safe working. The wire guard enables safe and clean operation, and the wire storage is optimized with a corner pulley.

Specifications

Drive	hydraulic
Power	30 l/min at 250 bar
Wire storage	5.50 meter
Wire - Ø	8 in. (200 mm)
Drive - Ø	16 in. (400 mm)
Dimensions (LxWxH)	26x34x72 in. (650x850x1820 mm)
Weight complete	282 lbs (128 kg)
Order number	0283 600 1000

Using the Golz KS600 wire saw is quite straightforward. First, thanks to its modular quick - release system, setting it up is easy. Just attach the drive motor and feed motor with the quick connectors. You can directly attach the wire saw to the cutting surface for quick and reliable work. Whether you need dry or wet wire sawing, it offers a safe and clean operation. When using it, make sure to check the wire storage. With a 5.5 - meter wire storage optimized by a corner pulley, you'll have enough wire for your job. As for maintenance, keep an eye on the hydraulic drive and power settings. If you need to convert it to a core drill rig, it only takes a few minutes. Remember to follow the safety guidelines and always use the wire guard for safe operation.
