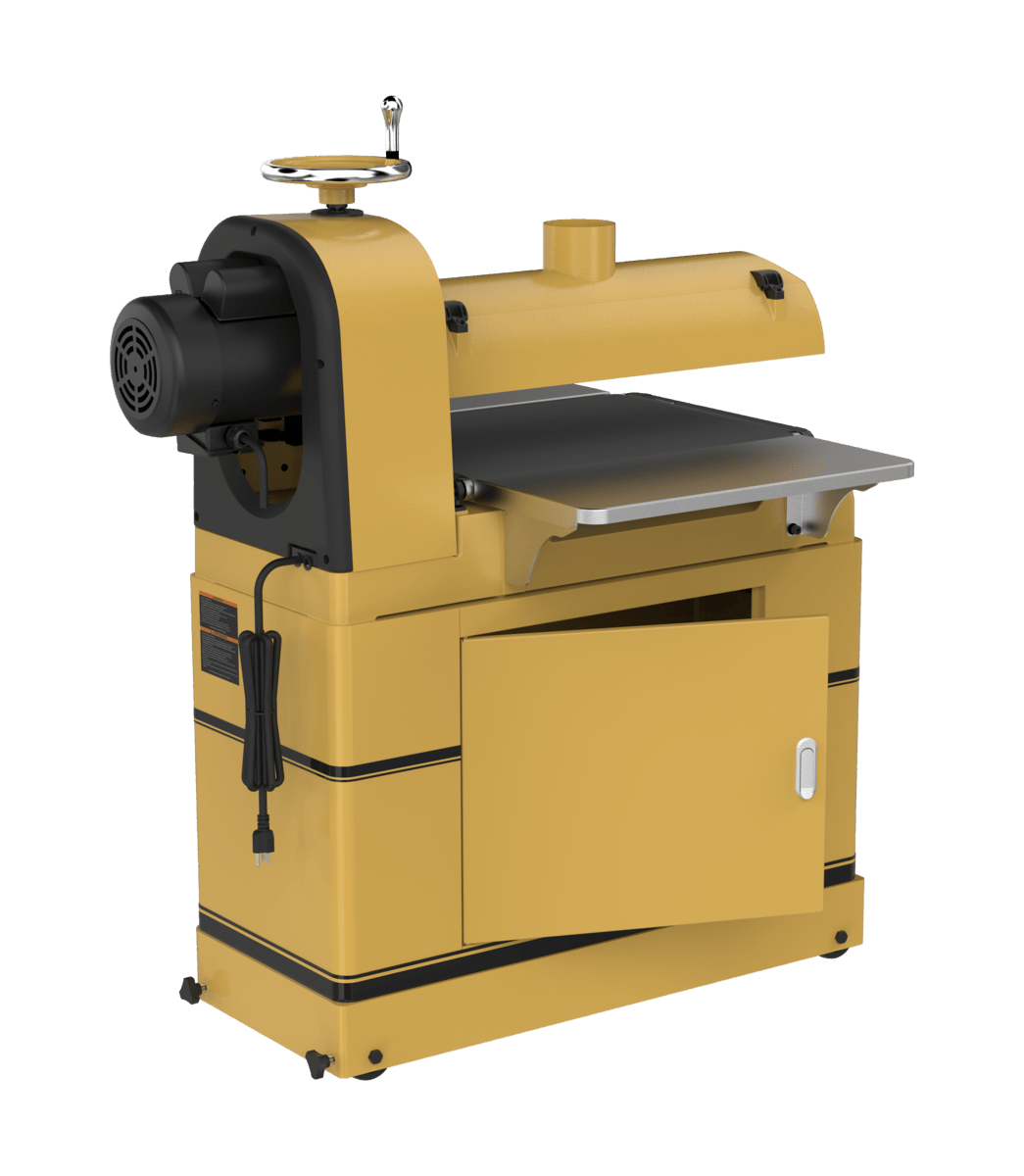

At Powermatic, we understand that woodworkers have high expectations for their machines. That's why, when engineering new products, we're constantly striving to boost woodworkers' capabilities and enhance their experience. Introducing the PM2244 Drum Sander - a world - class machine that will far exceed your expectations in terms of design, usability, and sophistication.
**Features:**
- Belt tracking reduces the need for manual adjustment.
- Closed stand with storage keeps abrasives neatly organized.
- Drum carriage offers long - lasting strength and consistent performance.
- Emergency stop allows for quick shutoff.
- Infeed/outfeed tables provide 37 - 1/2 inches of workpiece support.
- Integrated casters make it easy to move around the shop.

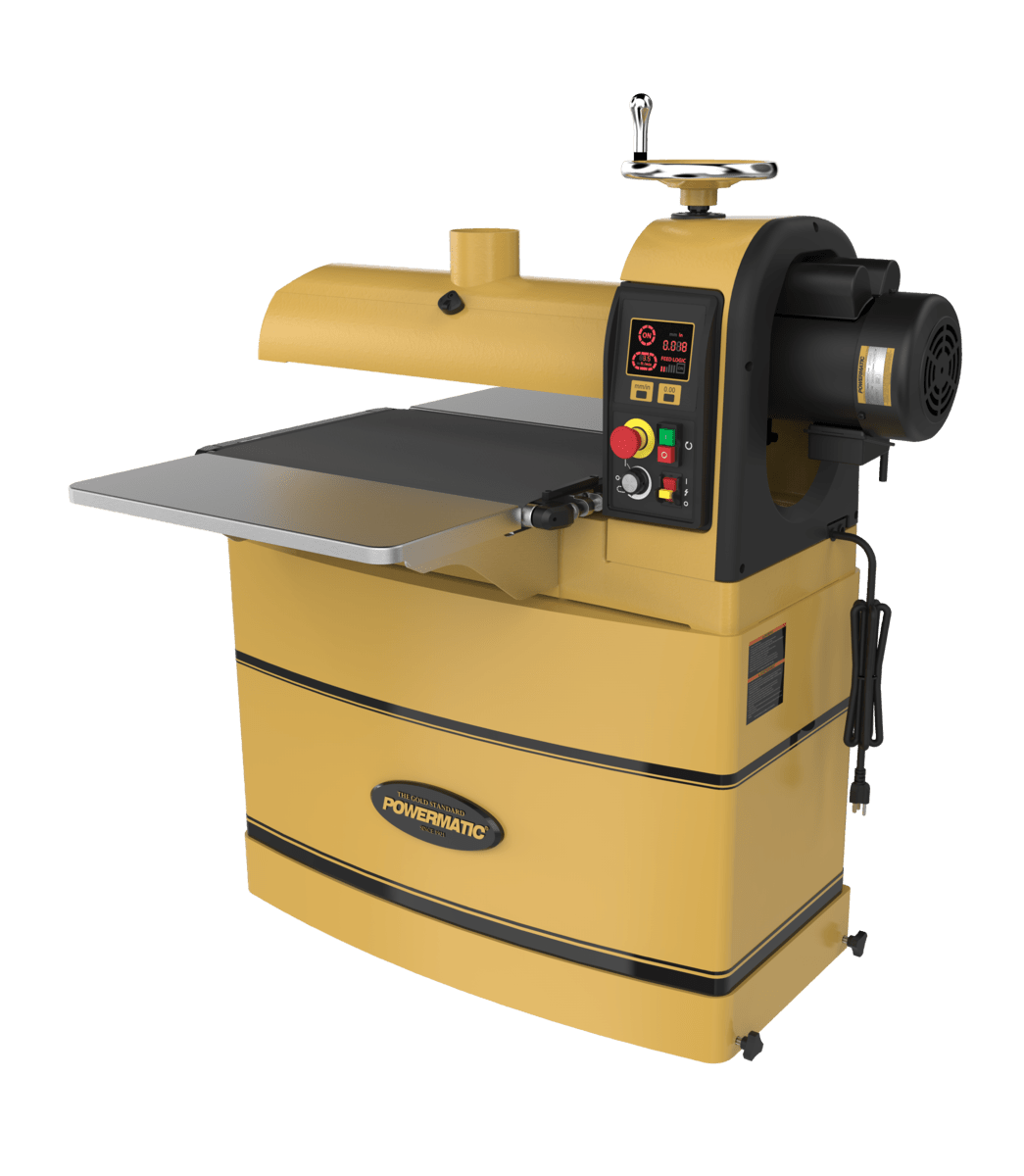

- LED Control Panel shows power, belt speed, and DRO.
- Large chrome handwheel enables smooth and simple drum height adjustment.
- Table parallelism is adjusted via a dial on the conveyor bed, no need to adjust the whole drum carriage.
- Feed logic system monitors drum motor load and regulates conveyor motor speed to prevent overload.
**Specifications:**
| Spec | Details |
|--|--|
| Stock Number | 1792244 |
| Conveyor Speed (FPM) | 0 to 10 |
| Drum Bearing Diameter (In.) | 5 |
| Drum Diameter (In.) | 5 |
| Drum Length (In.) | 22 |
| Drum Speed (RPM) | 1720 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Maximum Board Thickness (In.) | 4 |
| Maximum Board Width (In.) | 22' |
| Minimum Board Length (In.) | 2 - 3/8 |
| Minimum Board Thickness (In.) | 1/32 |
| Motor Amps | 14 |
| Motor Power (HP) | 1 - 3/4 |
| Number of Sanding Drums | 1 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Drum Sander |
| Weight (Lbs.) | 328 |
Using the PM2244 Drum Sander is easy. First, make sure it's plugged into a 20 - amp circuit as recommended. You can use the large chrome handwheel to adjust the drum height smoothly for different workpieces. Place your workpiece on the infeed table and let the conveyor do the work. The feed logic system will ensure the best speed without overloading the motor.
For safety, always use the emergency stop if something goes wrong. Also, be aware of the Prop 65 warning about cancer and reproductive harm. Keep your abrasives in the closed stand's storage for easy access and organization.
To maintain your sander, regularly check the belt tracking to avoid manual adjustment. Clean the dust collection system to meet the 800 CFM requirement. Check the table parallelism using the dial on the conveyor bed. If you need to move the sander around the shop, use the integrated casters. With proper use and maintenance, your PM2244 Drum Sander will serve you well for a long time.
