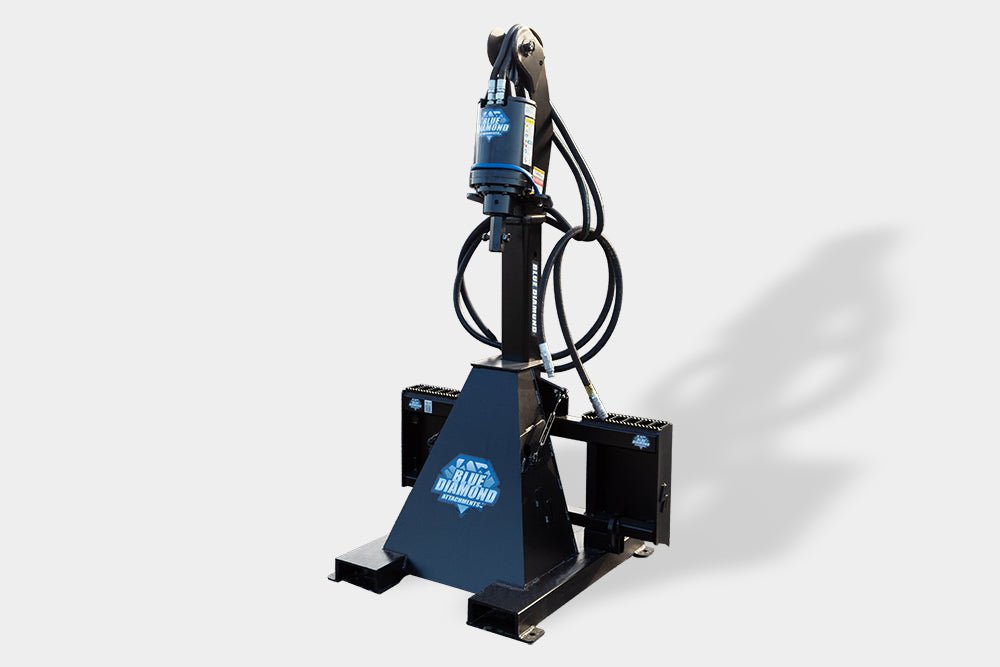

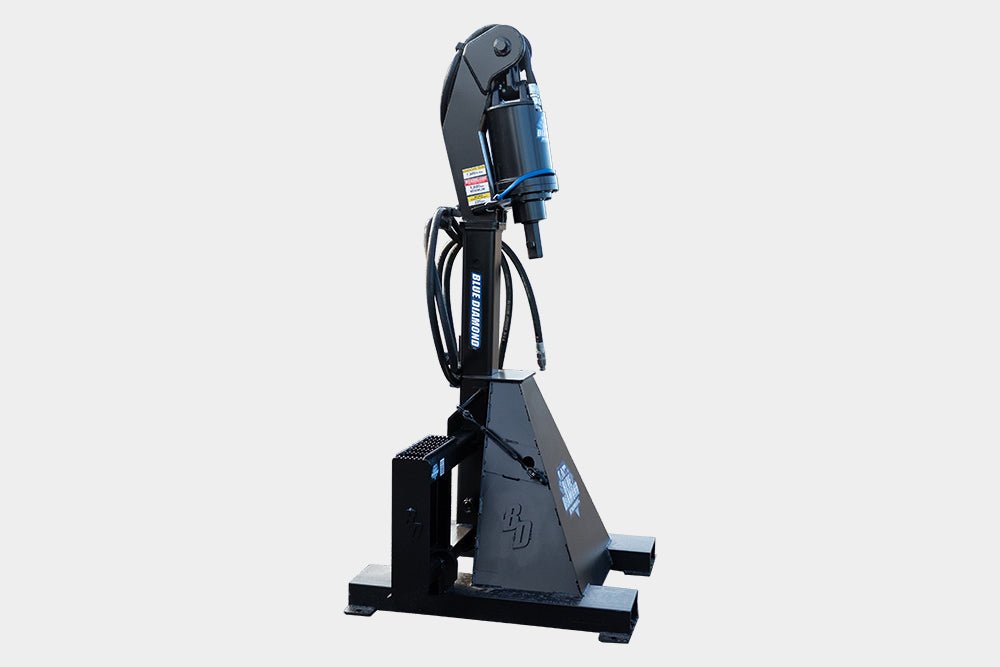

Blue Diamond® Attachments' piling and drilling mounts are a game - changer. They extend your reach, allowing for greater drilling depth or seamless helical pile installation. These top - notch telescopic extension mounts are crafted from the highest - quality steel with strict quality control. They have a retracted length of 78 inches and can be extended by 36 inches. Key features include a 78 - inch retracted length, 36 - inch extendability, a minimum Skid Steer rated operating capacity of 1800 lbs, a maximum Auger Drive torque of 7000 ft - lbs, a maximum Auger Bit weight of 220 lbs, an optional Transport Stand, and hose sets with a pressure gauge option. The telescopic auger mount comes with a manual and a spec sheet, and here are the part numbers, models, and weights: 105780 (Mount, 359 lbs), 105781 (Optional Transport Stand, 255 lbs), 205788 (14' Hose Set 1/2' Couplers, 20 lbs), 205789 (14' Hose Set 1/2' Couplers, 20 lbs), 205790 (14' Hose Set 1/2' Couplers w/Pressure Gauges, 20 lbs), 205791 (14' Hose Set 3/4' Couplers w/Pressure Gauges, 20 lbs).
Using the telescopic auger mount is easy. First, make sure your skid steer has a rated operating capacity of at least 1800 lbs. Attach the mount securely to your equipment. You can extend it by up to 36 inches for increased reach when needed. When using the auger drive, don't exceed the maximum torque of 7000 ft - lbs and the maximum auger bit weight of 220 lbs. For transportation, you can opt to use the transport stand. The hose sets come with an option for a pressure gauge, which can be handy for monitoring. As for maintenance, regularly check the steel parts for any signs of wear and tear. Keep the hoses in good condition and make sure all connections are tight. If you're using the pressure gauge, check it periodically to ensure it's working properly. Always refer to the telescopic auger mount manual for detailed instructions.
