Tubing Bender - RDB-100

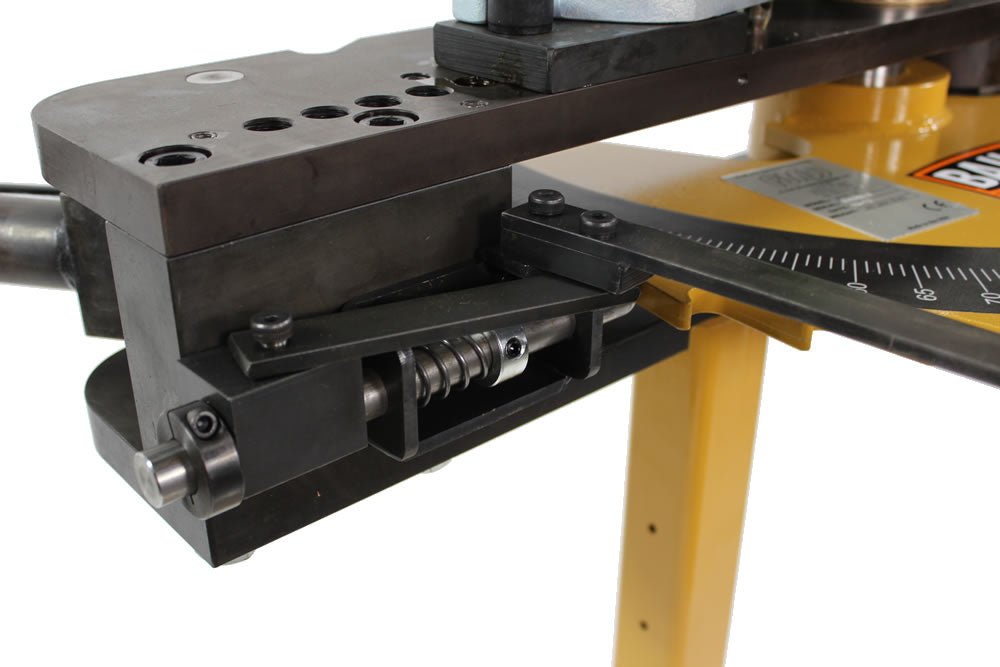

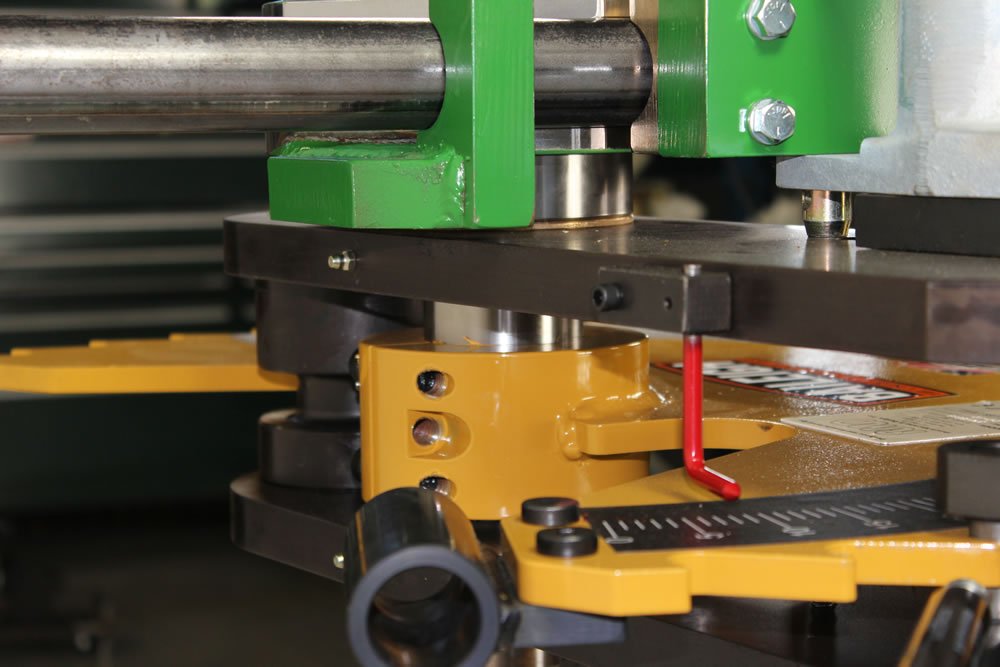

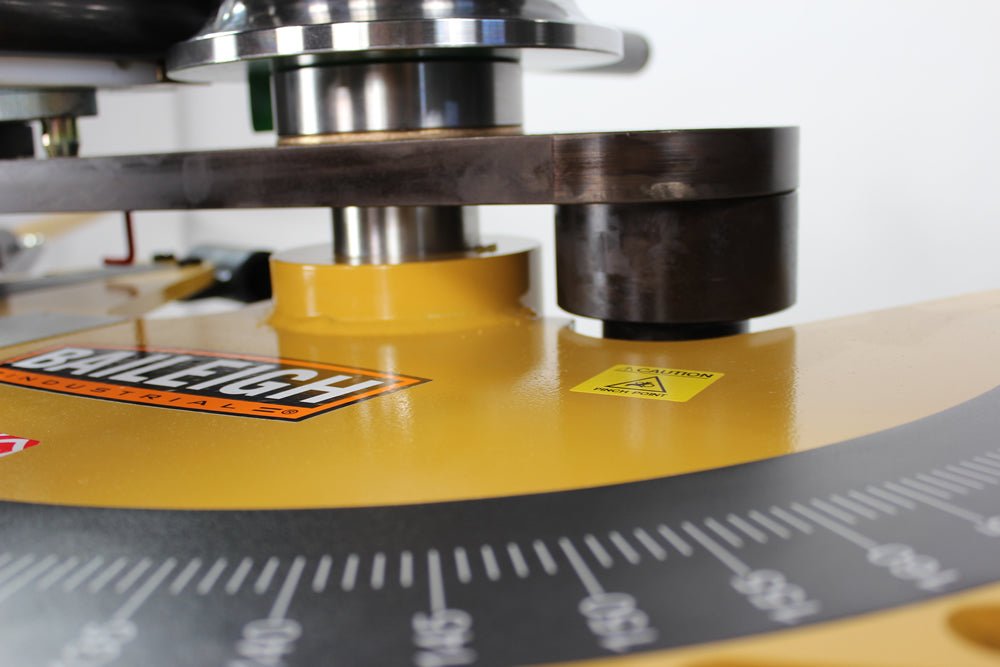

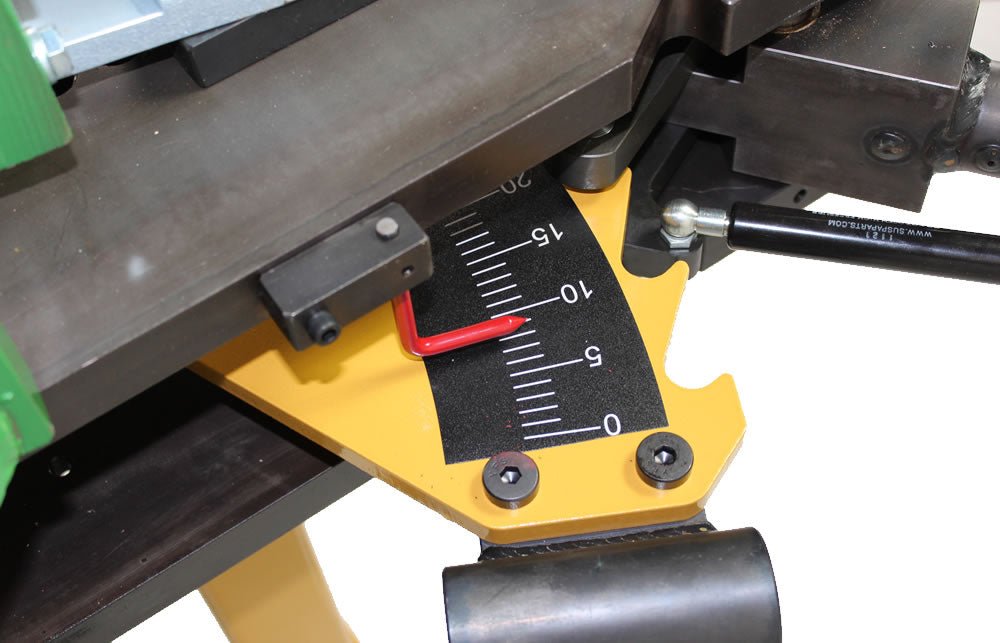

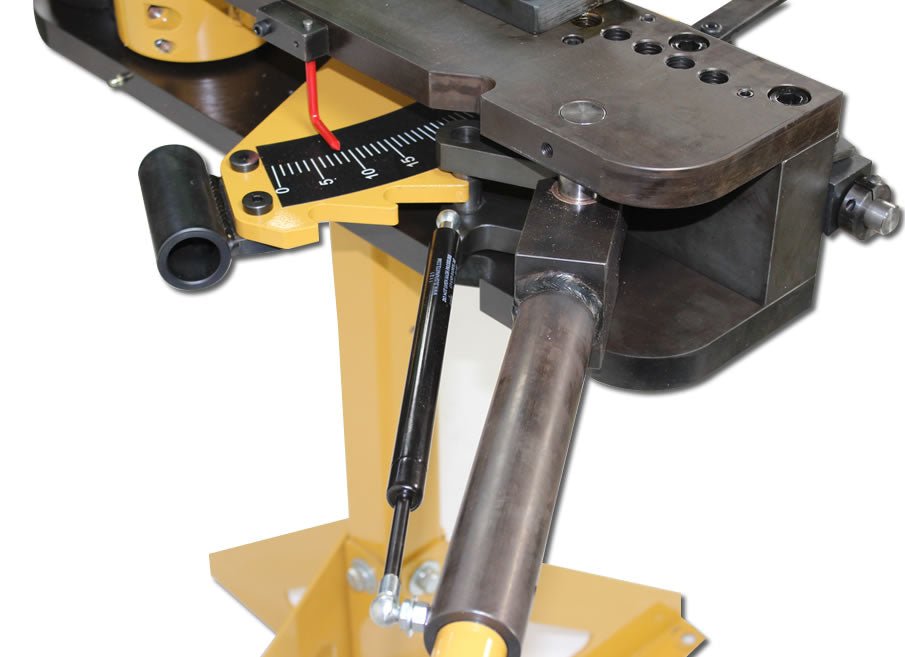

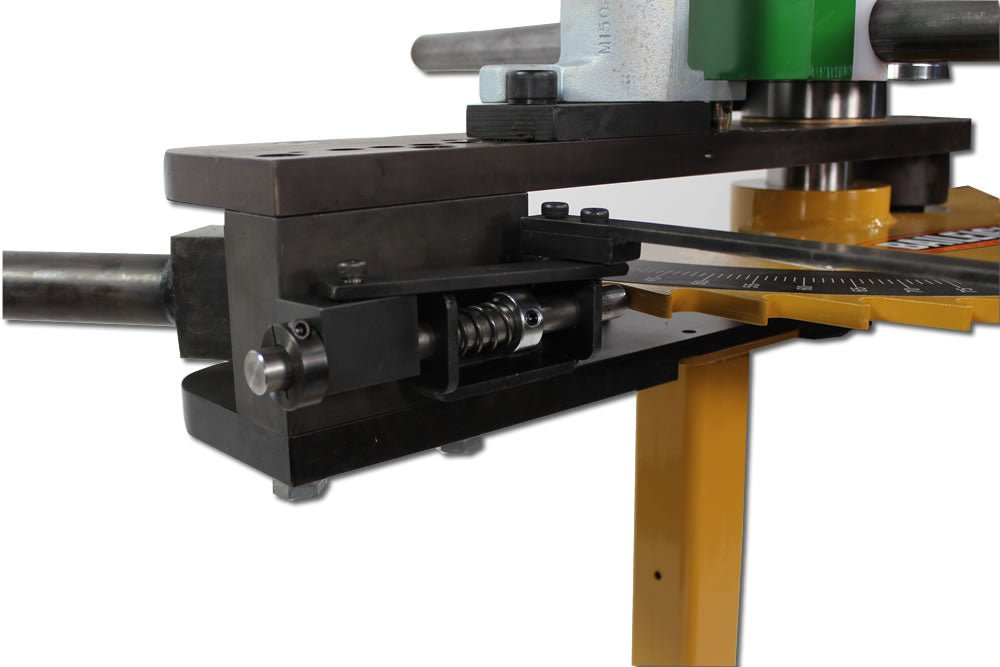

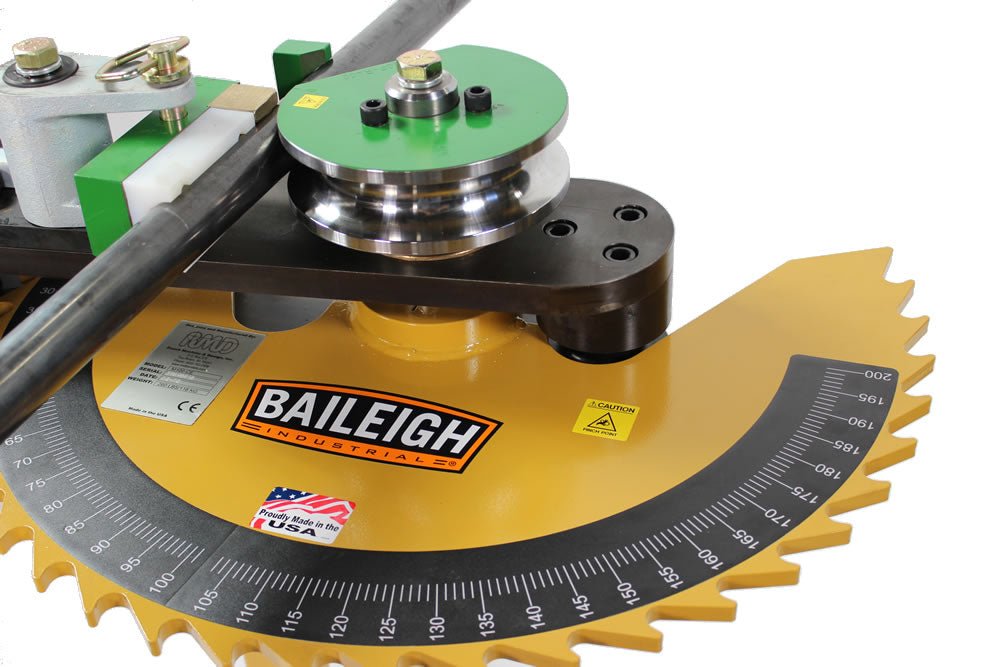

For fabricators dealing with lower production runs, this manual tubing bender guarantees professional-looking bends. It can bend up to 1.75” OD tubing with a max wall thickness of .095” and 1” schedule 40 pipe. The large-diameter indexing allows you to bend up to 206° without re-indexing and re-pinning, a feature that sets it apart from most market alternatives. The quick-release counter die system makes material loading and unloading a breeze. The tension springback mechanism holds position as the bend mechanism engages the next tooth on the index wheel. A degree scale shows your bend angle for quick reference. All tooling has a start-of-bend indicator line, enabling accurate and confident complex bends. The ratcheting bend system lets you switch to manual override for lighter-gauge materials. It ships mostly pre-assembled; just attach the handle and stand. It accepts hundreds of round and square tubing die sets as well as round pipe die sets. It comes with a stand, degree dial, and handle. Its steel plate construction ensures strength and precision. It's backed by a 1-year parts warranty and includes lifetime technical support. Recommended for projects using thin wall tubing. Item Number: RDB-100. Made in the United States. Note: Tooling not included, contact Baileigh at 920-684-4990 for correct sizing. All capacities are based on A53 grade A (mild steel) 48,000 psi tensile materials; heavy wall and high tensile materials may reduce machine capacity. Consult Baileigh Industrial to review material specifications. Shipping Dimensions: 48x45x26 inches. Specifications are subject to change without notice.

Using the RDB - 100 tubing bender is easy. First, when it arrives, it's mostly pre - assembled. Just attach the handle and the stand. Before you start bending, choose the right die set for your tubing or pipe. The bender can accept hundreds of different die sets for round and square tubing as well as round pipes. When bending, use the degree scale to quickly check your bend angle. The start - of - bend indicator line on the tooling helps you make precise complex bends. If you're working with lighter - gauge materials, you can use the manual override feature of the ratcheting bend system. When loading and unloading the material, the quick - release counter die system makes the process simple. As for maintenance, keep the bender clean and free of debris. Check the steel plate construction regularly for any signs of wear or damage. If you have any issues, you can contact our team for lifetime technical support. Remember, all capacities are based on A53 grade A (mild steel) 48,000 psi tensile materials. If you're using heavy wall or high tensile materials, it may reduce the machine's capacity. So, it's a good idea to consult Baileigh Industrial to review your material specifications. Also, tooling is not included, so call Baileigh at 920 - 684 - 4990 to get the correct sizing.
