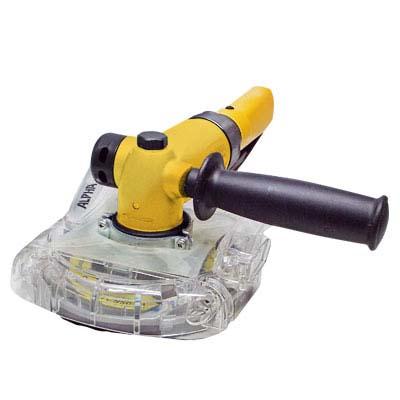

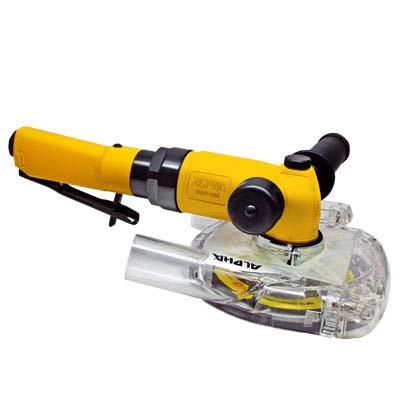

Introducing the Alpha® PSG-125 Grinding Kit, an all - in - one industrial grinder that's a game - changer for your sanding and grinding needs. This compact system uses 5' discs and offers near - dust - free sanding, grinding, and paint or coating removal. Its removable flat cover enables easy edge grinding, and the dust cover effectively traps particles. It's perfect for prepping concrete, metal, wood, and other surfaces. An optional water feed system is available to further reduce dust. Key features include its suitability for sanding, grinding, and paint/coating removal, a lightweight yet durable compact aluminum body for effortless use, a powerful 1.4 HP motor with adjustable speed, a reversible safety lever throttle, a removable cover for edge work, and a one - year tool warranty. Specifications are as follows: Model 5480 - 1302 (PSG - 125), 90 PSI air pressure, max air consumption of 33 CFM (934L/min), no - load speed of 12,000 RPM, weight of 4.6 lbs (2.1 kgs), length of 11 - 3/4' (298mm), 3/8' NPT air inlet, 5/8' - 11 spindle, max disc capacity of 5' x 1/4' x 7/8', and max 1.4 HP. The package comes with a PSG - 125 pneumatic grinder, Ecoguard G assembly/connector, lock nut with 7/8' arbor, flange, side handle, height adjustment spacer, 1/4' hex wrench, pin wrench, rubber hose connector, stainless steel hose band, and 8oz (237ml) rust inhibitor oil (AIR - 008). Upgrade your grinding tasks with this versatile, powerful, and efficient kit.

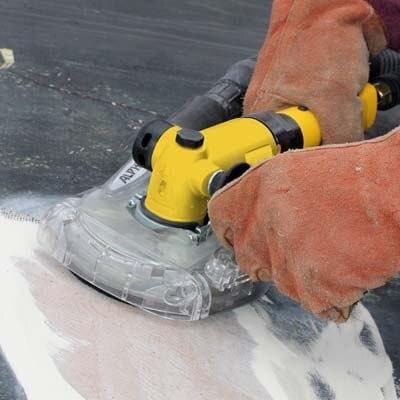

Using the PSG - 125 Grinding Kit is easy. First, connect the air inlet to a suitable air source with the right air pressure of 90 PSI. Attach the disc to the spindle and make sure it's securely fastened with the lock nut. Adjust the speed according to the material you're working on, like concrete or wood. For edge grinding, simply remove the flat cover. When using it, keep in mind to wear proper safety gear, such as goggles and a dust mask, especially if you're not using the optional water feed system. Avoid overloading the motor and always operate the tool within its specified speed and air consumption limits. For maintenance, after each use, clean the grinder to remove any dust or debris. Wipe it down with a dry cloth. Regularly lubricate the moving parts with the included rust inhibitor oil to prevent rust and ensure smooth operation. Check the hoses and connectors for any signs of wear or damage and replace them if necessary. Keep the tool in a dry place when not in use, and refer to the manual for detailed warranty information.
