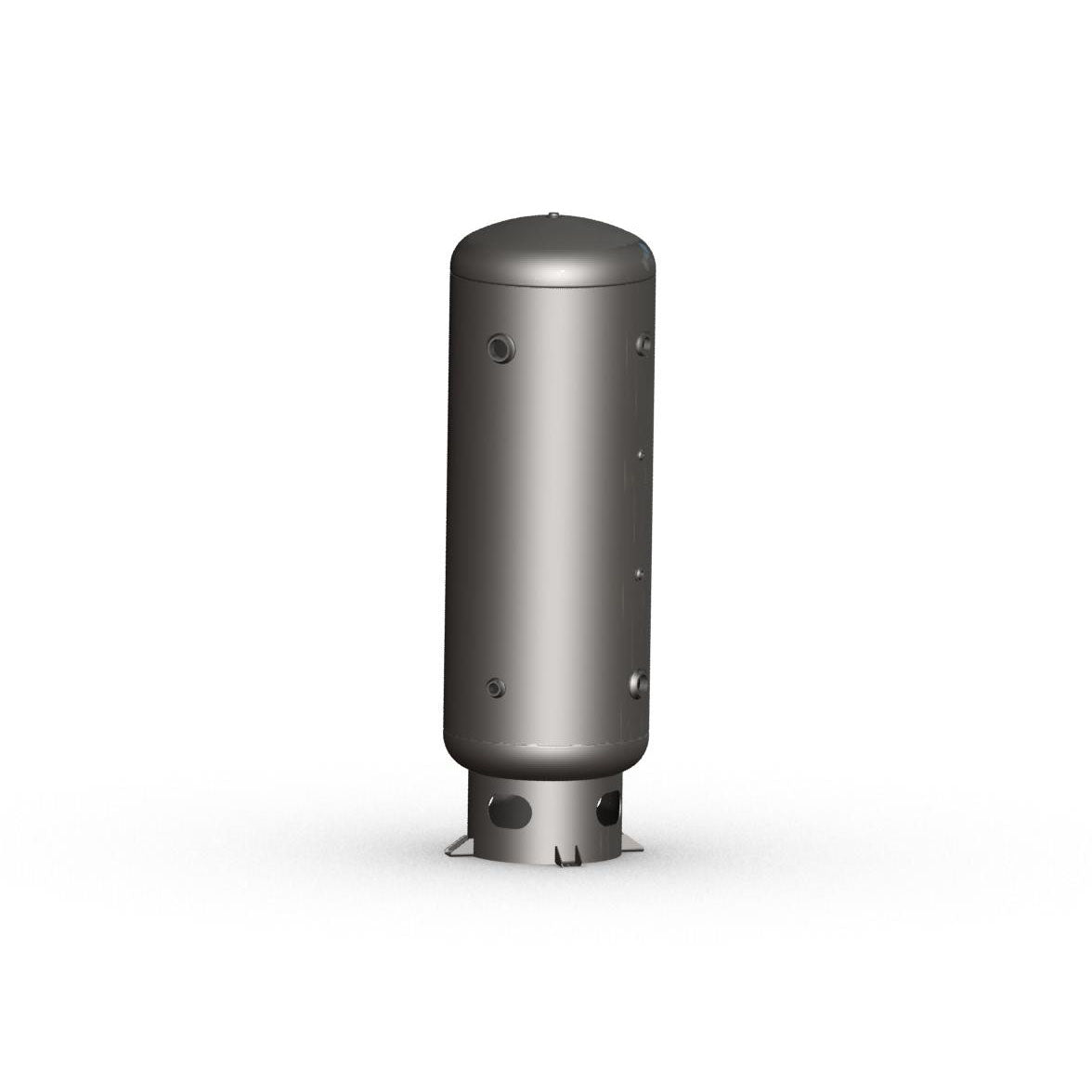

200ARV200 - 200 Gallon Vertical Air Receiver Tank

Due to the product's weight, order this 200 Gallon Vertical Air Receiver Tank online or call 800 - 342 - 3876. It's ASME coded with a 200 psi working pressure. Only has an exterior primer coat. The tank is 30 inches in diameter and 72 inches tall. With the base ring, it's 80 inches long and weighs 525 pounds. Interior volume is 27 cubic feet. Check the spec sheet for opening sizes and locations.

To use this 200 - gallon vertical air receiver tank, first make sure it's placed on a flat and stable surface. Connect your air compressor to the tank according to the manufacturer's instructions. Before starting the compressor, double - check all the connections to avoid air leaks. When the tank is in use, keep an eye on the pressure gauge to ensure it stays within the 200 psi working pressure limit. Don't over - pressurize the tank as it can be dangerous. For maintenance, regularly inspect the exterior for any signs of rust or damage. If you notice the primer coat is starting to wear off, you may want to touch it up. Periodically drain any moisture that accumulates in the tank to prevent corrosion. And always refer to the specification sheet for details about the tank's openings and other features.
