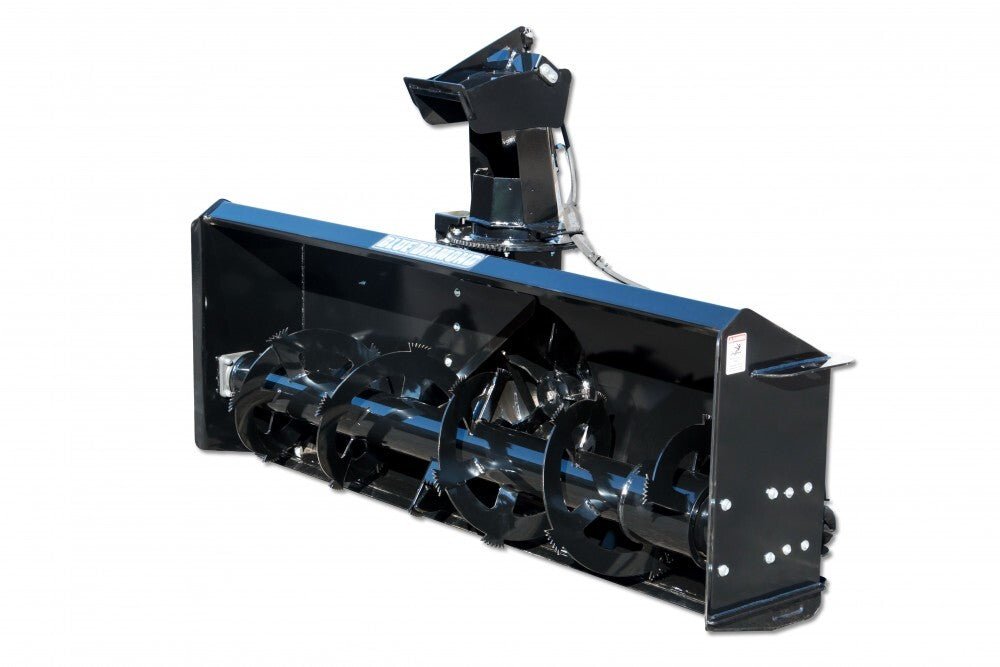

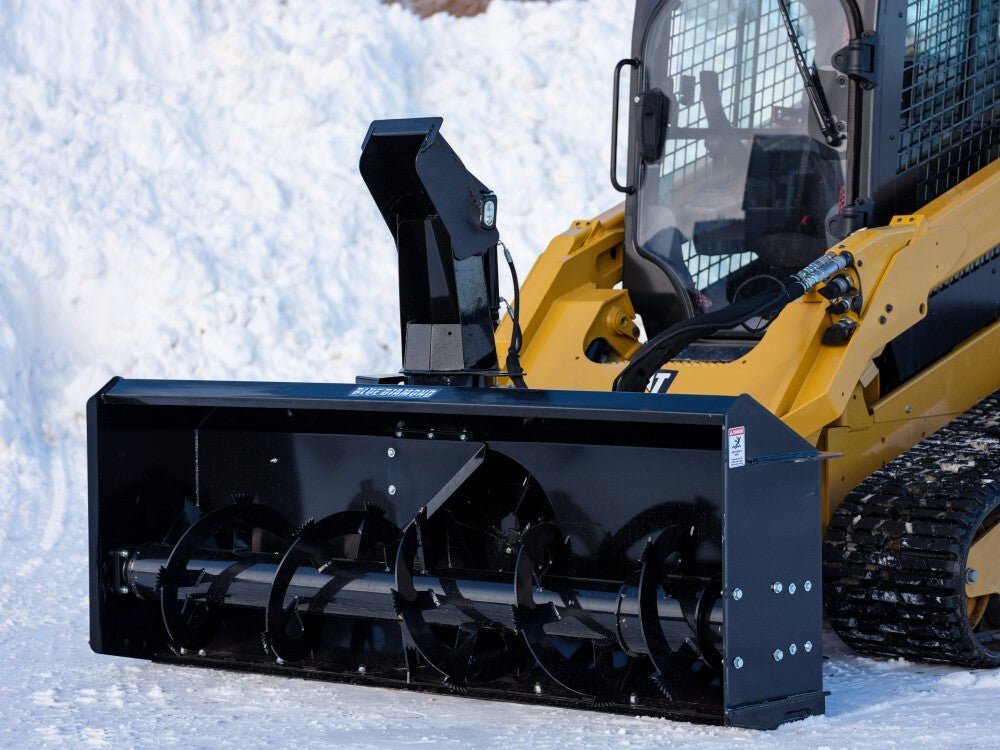

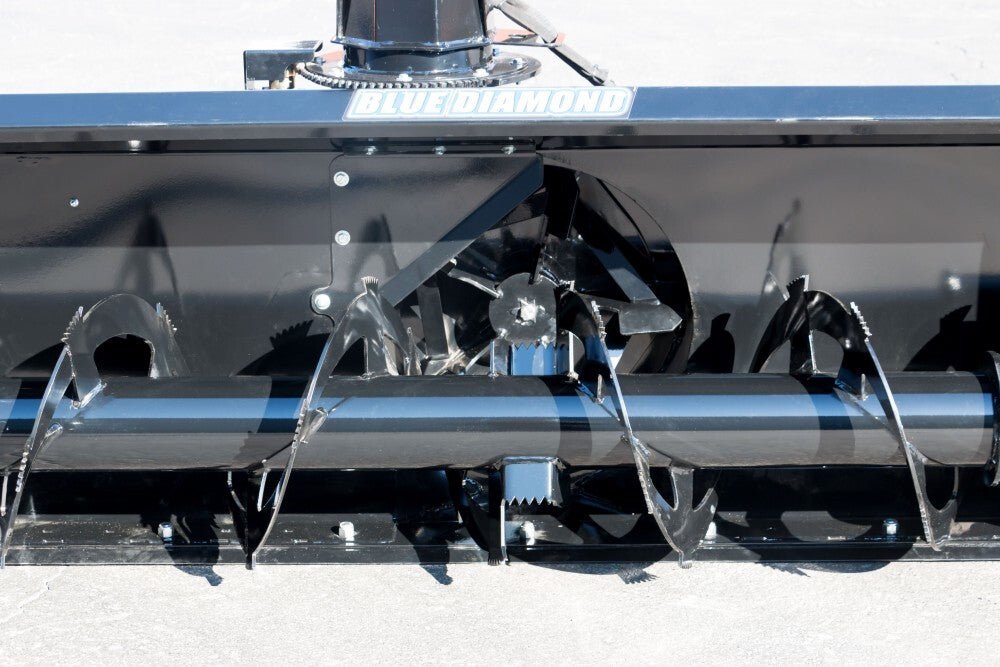

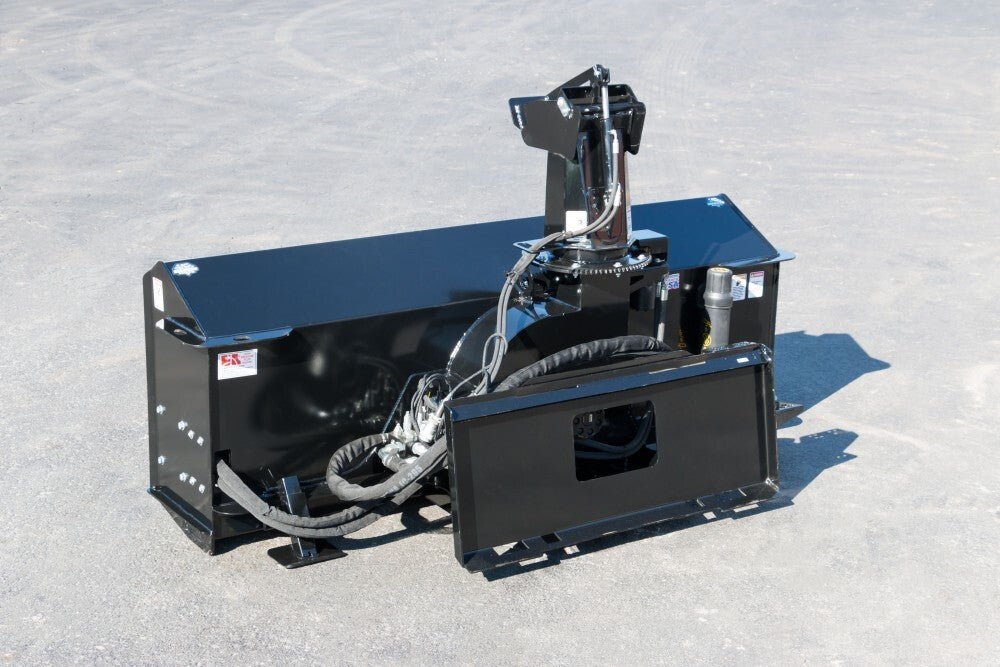

The Blue Diamond® Heavy - Duty Skid Steer Snow Blower is built to last for years. Its high - pressure bypass relief system gets rid of the need for shear pins during sudden stops. You can choose from various widths and motor packages to find the perfect snow blower that matches your skid steer's capacity. This snow blower features an aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting, a 4 - blade fan with 22″ diameter and 6 1/2″ depth. It has no shear pins, using a high - pressure bypass relief system, and no chains, with direct - drive auger and fan. The 270° hydraulic rotary chute has a 7” opening, and there's a hydraulic chute deflector. Adjustable hardened steel skid shoes, 7 - gauge steel fan housing, 10 - gauge steel blower shell, 1/4″ end plates, high - strength corner bracing, heavy - duty polyurethane idler wheels, and a bolt - on grader cutting edge are also included. There are detailed specifications for different models in terms of part number, best flow, cut width, cut height, overall width, overall height, and weight.
Using this Blue Diamond snow blower is easy. First, make sure your skid steer has the right flow rate as per the model's requirements. Attach the snow blower to your skid steer securely. When you start the machine, the auger will collect the snow and the fan will blow it out through the chute. You can adjust the chute's direction with the hydraulic controls. For the best performance, use it on flat surfaces and keep the skid shoes adjusted to the right height. When it comes to maintenance, check the fan housing and blower shell regularly for any signs of wear or damage. Keep the auger and fan clean from snow and ice build - up. Lubricate the moving parts as recommended. Also, make sure to store it in a dry place when not in use to prevent rust.
