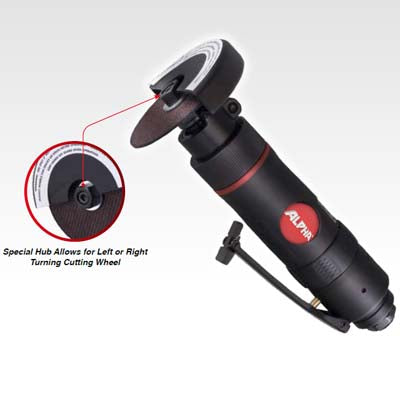

Cut-off tools are essential for metal fabricators and automotive restoration shops. Alpha® presents the COTR-03 Reversible Cut-Off Tool. This 8-1/16" long tool features a special hub enabling left or right turning of the cutting wheel. Easily change the wheel's direction via the collar to direct sparks and debris away from you. The rear exhaust design ensures a comfortable operation. With a powerful 0.85 HP motor, it boosts the performance of the Ultracut ABM series blade. Key features include a special hub for reversible action, easy directional change via collar, a safety throttle lever, rear exhaust, a 0.85 HP/0.63 KW motor, and a one-year warranty. Specifications: Free Speed - 20,000 RPM, Cutting Disc Dimensions - 3" / 75mm, Air Inlet - 1/4" NPT, Hose Size ID - 3/8" / 10mm, Air Consumption - 4 CFM (113L/min), Length - 8-1/16" / 204mm, Weight - 2.0 lbs / 0.9 kgs, Noise Level - 83 dB(A), Recommended Air Pressure - 90 PSI (6.2 Bar). FAQs: Use a 3 hp or larger compressor as it may consume up to 4 CFM. It can't be used for flush cutting due to direct drive design. It comes with a standard aluminum oxide abrasive cut-off wheel for metal. Use it at the jobsite if compressed air is available. Add daily oil to the designated oil port after work. There's no dust shroud currently available.
Using the Alpha® COTR-03 Cut-Off Tool is straightforward. First, make sure you have a 3 hp or larger compressor as it may consume up to 4 CFM. Connect the tool to the compressor using the appropriate hose size (3/8" / 10mm). Adjust the wheel's direction using the collar to direct sparks and debris away from you. Hold the tool firmly and use the safety throttle lever to start the operation. Remember, you can't use it for flush cutting because of its direct drive design. After each use, add oil to the designated oil port at the end of the tool to lubricate the motor. This will keep the motor in good condition and extend the tool's lifespan. Also, keep the tool clean and store it in a dry place. There's no dust shroud available currently, so take extra care in dusty environments.
