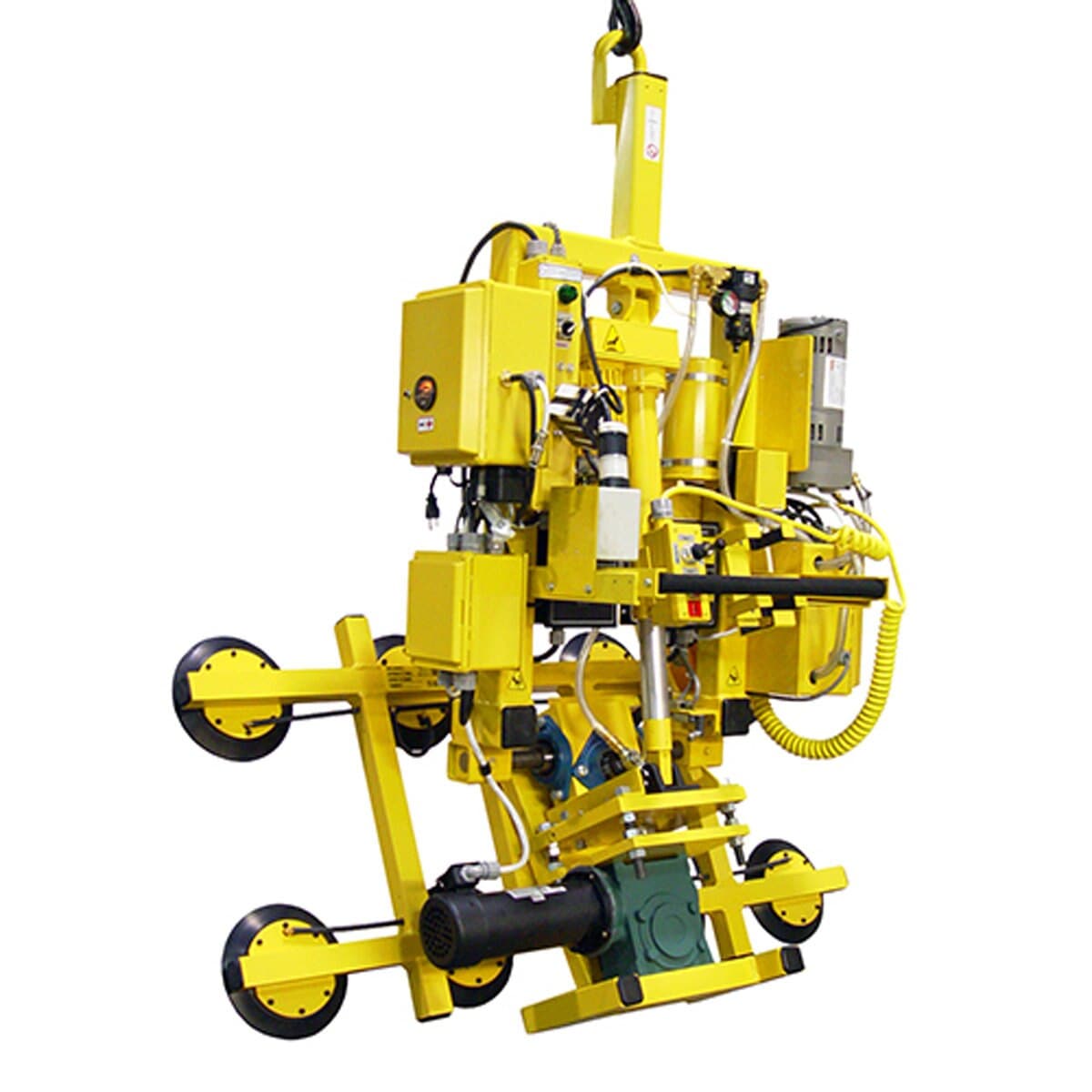

Power Rotator/Tilter 1000 (AC) - Customizable Vacuum Lifters
The DC version is available only by special order.
With full 360° powered rotation and 90° tilt, this Powr - Grip® vacuum lifter makes handling heavy materials on the production line a breeze.
Rotator/Tilter Specifications
The vacuum lifter comes with optional High - Duty Tilt, Vacuum Loss Warning Buzzer, and DC Back - Up System.
Standard Pad Spread: 29 - 1/4' x 59 - 1/4' [740 x 1502 mm]
Number / Size of Vacuum Pads: 8 pads with a 9' [23 cm] diameter
Maximum Load Capacity: 1000 lbs [455 kg]
Weight of Lifter: 600 lbs [273 kg]
Standard Operating Power: 120 volts AC, 60 hertz, 16 amps
Apply / Release Times: 4 seconds / 3 seconds (approx)
Load Movement: Power rotation, 360° edgewise with adjustable speed control; Power tilt, 90° between upright and flat
Maximum / Minimum Rotation Speed: Full turn, 7 seconds / 30 seconds (approx)
Time for 90° Tilt: 13 seconds (approx)
Tilt Duty: 41 tilts per hour
Standard Features: Green lift light, Movable control pendant, Vacuum gauge, Vacuum reserve tank, Vacuum line filter, Spring - mounted vacuum pads, Twist - lock electrical plug, Blow - off for quick release
WARNING Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov
Using the Power Rotator/Tilter 1000 (AC) is straightforward. First, make sure it's properly connected to a 120 - volt AC, 60 - hertz, 16 - amp power source. Place the vacuum pads on the heavy material you want to lift. The vacuum will engage in about 4 seconds, and you'll see the green lift light turn on. You can then use the movable control pendant to rotate the load 360° with adjustable speed or tilt it 90°. When you're done, the load will release in about 3 seconds. Be aware that the DC version is only available by special order. Also, take note of the warning about potential cancer and reproductive harm. For maintenance, regularly check the vacuum line filter and the spring - mounted vacuum pads. Ensure the twist - lock electrical plug is always in good condition. If you've added the optional High - Duty Tilt, Vacuum Loss Warning Buzzer, or DC Back - Up System, make sure to test them periodically to ensure they're working properly.
