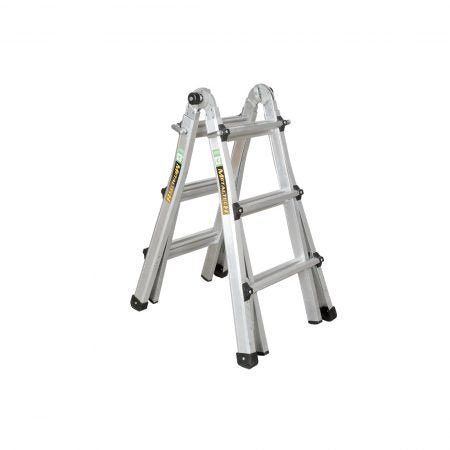

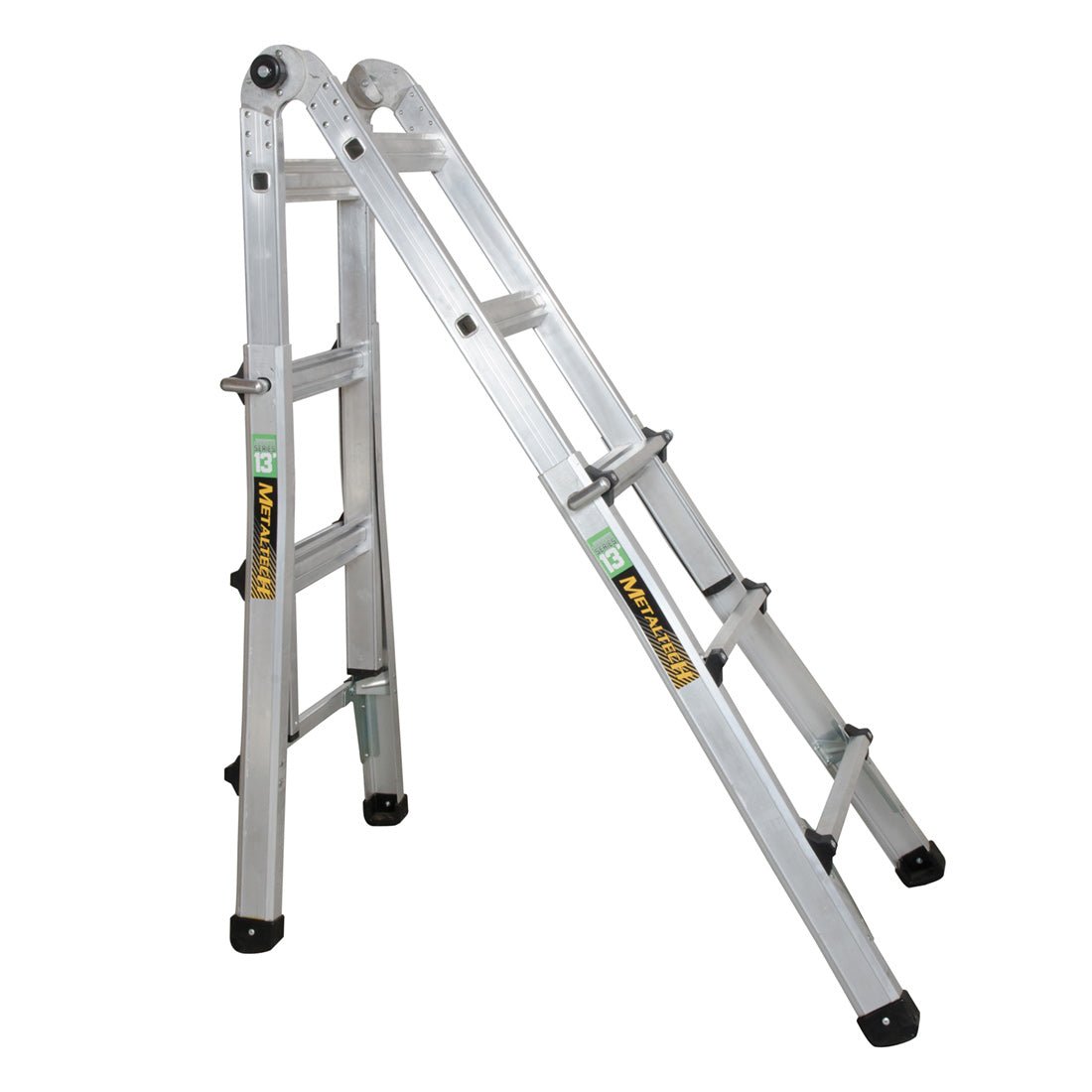

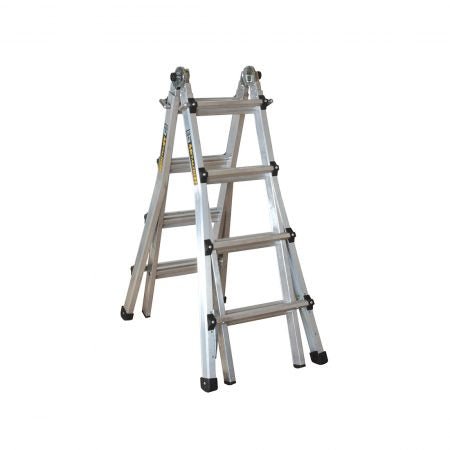

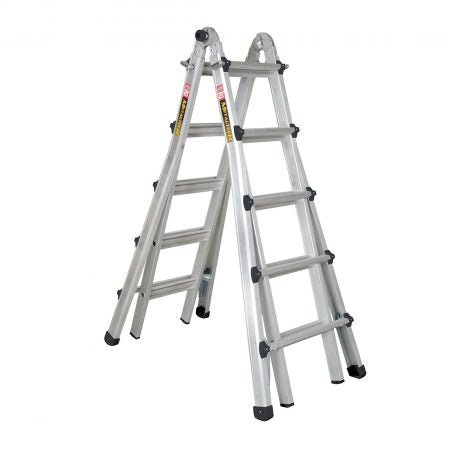

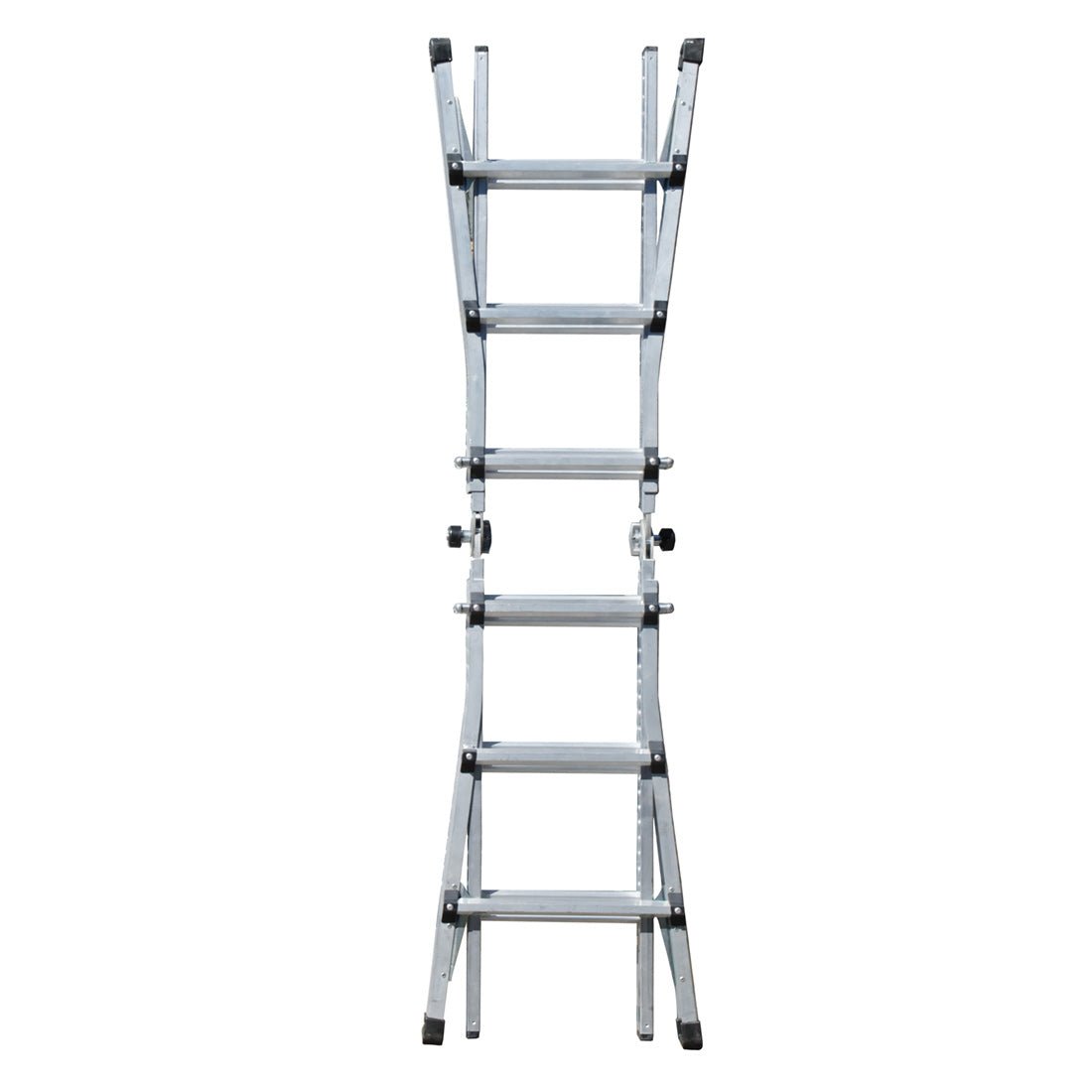

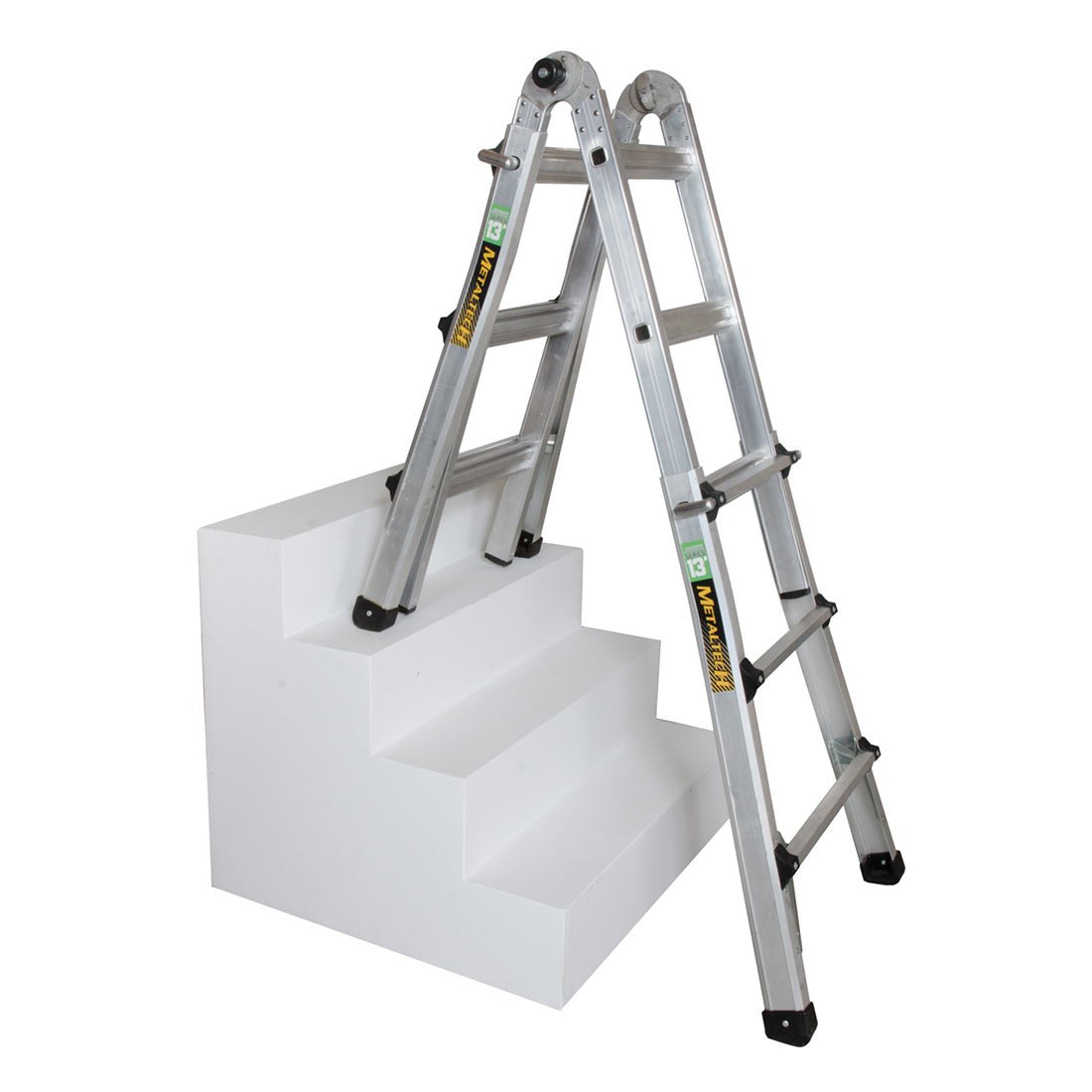

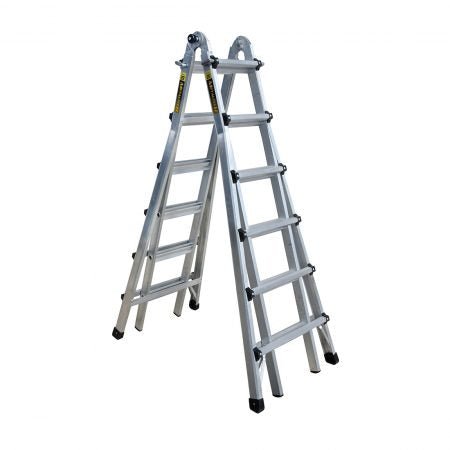

This amazing telescoping ladder can be used as an extension ladder, step ladder, stairway ladder, or 90º wall ladder. It comes in four different sizes: 13', 17', 21', and 25'. All ladders are made of lightweight yet strong aluminum and have a load capacity of 300 lb (136 kg). Here are the details for each size:
13’ Ladder:
- Closed Dimensions: 22.25 X 7.75 X 42.75 in. (56.5 X 19.7 X 108.6 cm)
- Weight: 27.6 lb (12.5 kg)
- Ladder Height: 13 ft (4 m)
- Maximum Reach: 14 ft. 4 in. (4.4 m)*
- Number Of Positions: 19

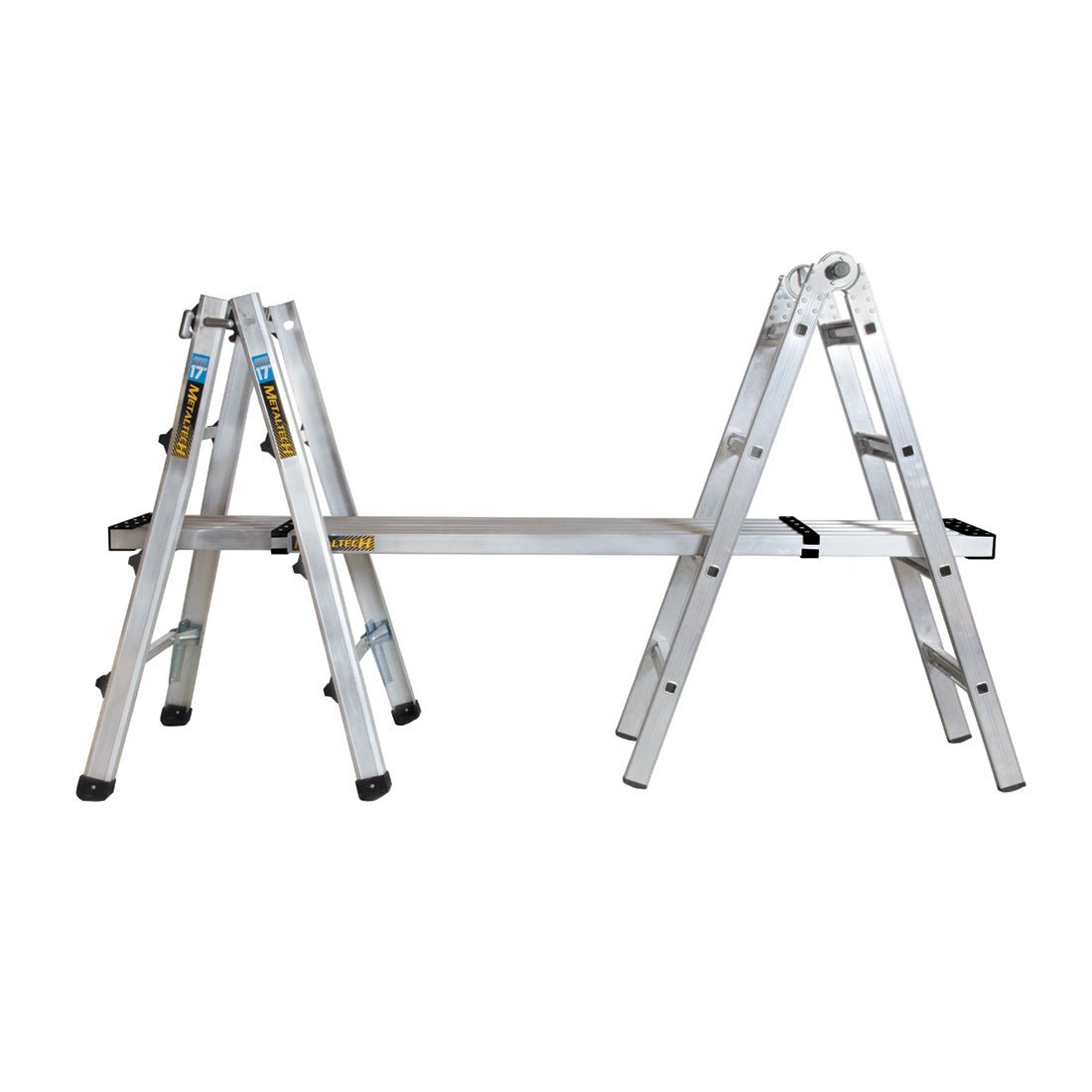

- Highest Standing Level: Stepladder 2 ft. 11 in. (0.89 m), Extension Ladder 7 ft 9 In. (2.4 m), Scaffold Supports 1 ft. 11 In. (0.58 m)
- Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
17’ Ladder:
- Closed Dimensions: 23.5 x 8 x 54.5 in. (59.7 x 20.3 x 138.4 cm)
- Weight: 34.5 lb (15.6 kg)
- Ladder Height: 17 ft (5.2 m)
- Maximum Reach: 18 ft 1 in. (5.5 m)*
- Number Of Positions: 28
- Highest Standing Level: Stepladder 4 ft 9 in. (1.4 m), Extension Ladder 11 ft 7 in. (3.5 m), Scaffold Supports 2 ft 11 in. (0.89 m)
- Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
21’ Ladder:
- Closed Dimensions: 26.75 x 8.75 x 66.5 in. (67.9 x 22.2 x 168.9 cm)
- Weight: 42.3 lb (19.2 kg)
- Ladder Height: 21 ft (6.4 m)
- Maximum Reach: 22 ft (6.7 m)*
- Number Of Positions: 38
- Highest Standing Level: Stepladder 6ft 9in. (2.1m), Extension Ladder 15 ft 5 in. (3.5 m), Scaffold Supports 3ft 10 in. (1.2 m)
- Standard: ANSI TYPE IA, CSA GRADE 1A AND OSHA
25’ Ladder:
- Closed Dimensions: 29.5 x 8 x 78.5 in. (74.9 x 20.3 x 199.4 cm)
- Weight: 53.1 lb (24.1 kg)
- Ladder Height: 25 ft (7.6 m)*
- Maximum Reach: 26 ft (7.9 m)
- Number Of Positions: 49
- Highest Standing Level: Stepladder 8 ft 7 in. (2.6 m), Extension Ladder 20 ft (6.1 m), Scaffold Supports 4 ft 9 in. (1.4 m)
- Standard: ANSI TYPE IA, OSHA AND CSA US
*Calculated with a 5’9” (1.75 m) person with a vertical 12” (30 cm) reach.
Using your telescoping multi - position ladder is easy. First, decide which type of ladder you need for your task - extension, step, stairway, or 90º wall ladder. Unfold the ladder carefully according to the type you've chosen. Make sure the ladder is on a stable and flat surface before you climb. When using it as an extension ladder, lock the sections properly to ensure safety.
Here are some important safety tips. Always follow the load capacity of 300 lb (136 kg). Don't stand higher than the recommended highest standing level for each position. Check the ladder for any damage before each use. If you notice any cracks or loose parts, don't use the ladder.
For maintenance, keep the ladder clean. After use, wipe it down with a dry cloth. Store it in a dry place to prevent rusting. If the ladder gets dirty, you can use a mild soap and water solution to clean it, but make sure to dry it thoroughly. With proper use and maintenance, your ladder will serve you well for a long time.
