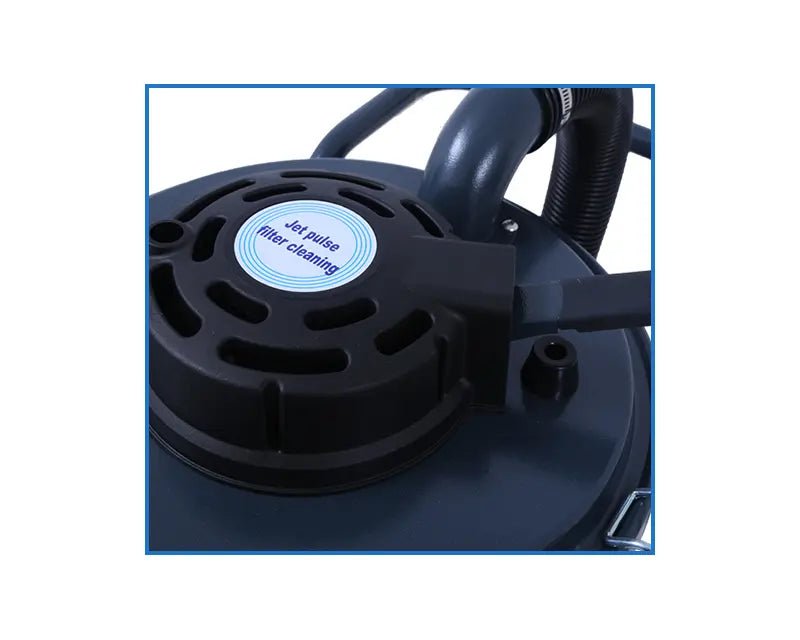

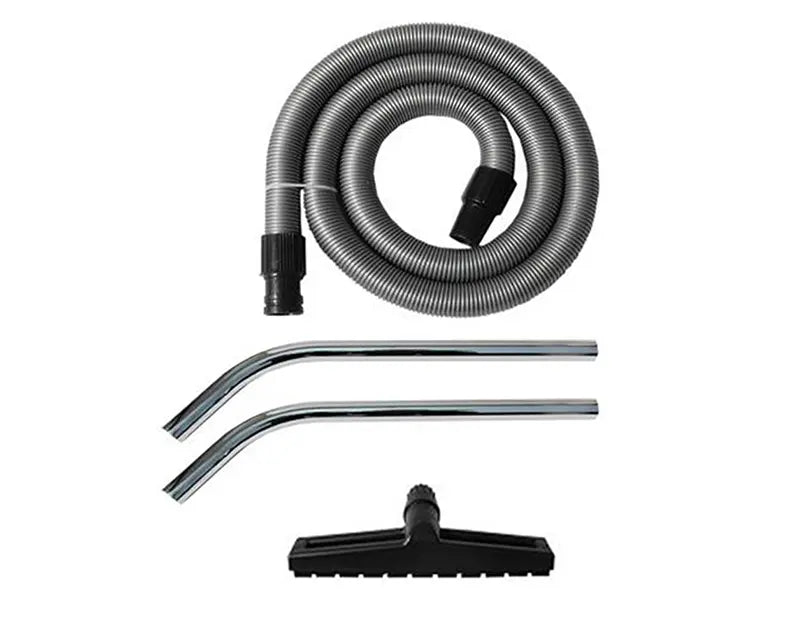

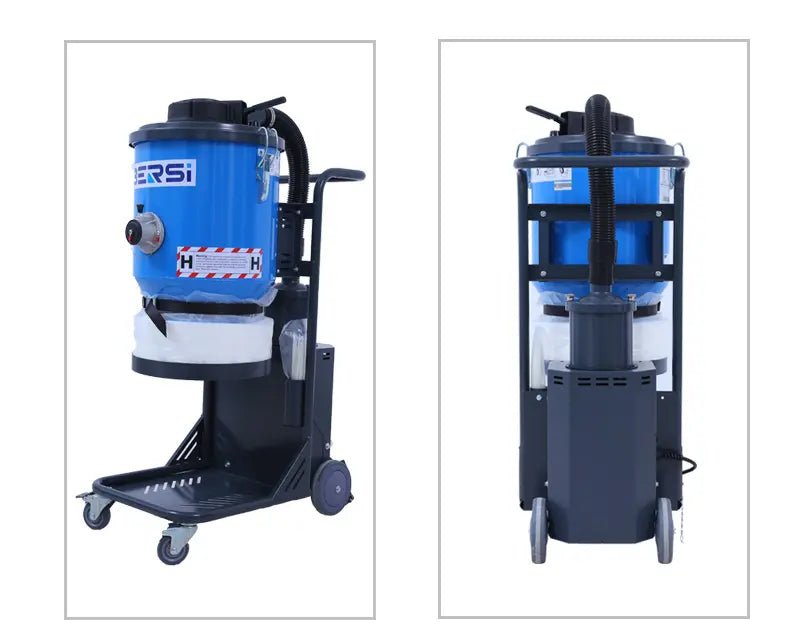

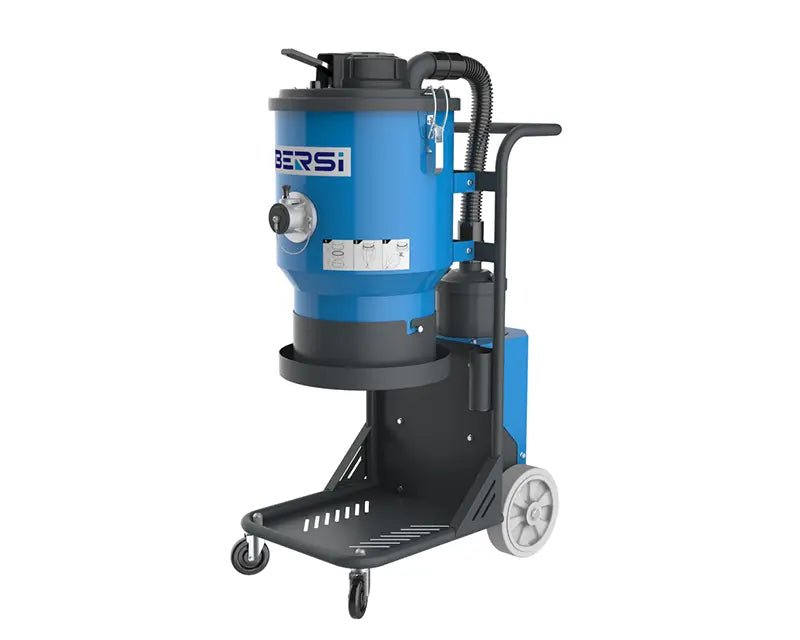

The TS1000 is an excellent single-phase, one-motor concrete dust collector. It comes with a conical pre-filter and a high-quality H13 HEPA filter. The main filter has a 1.7m² filter surface, and each HEPA filter is independently tested and certified. This dust extractor can efficiently separate fine dust, with a 99.99% efficiency at 0.3μm, making your workspace clean and safe. It's perfect for small grinders and handheld power tools. The package includes a 38mm*5m hose, a 38mm wand, a floor tool, and a 20m continuous folding bag for dust-free handling and disposal. Here are its technical details: Voltage is 1Ph/120V/60Hz, current is 9A, water lift is 100 inches, cfm is 118, suction inlet is 2 inches. It has an F8 conical filter and a HEPA 13 filter, and uses jet pulse filter cleaning. Standard tools are a 1.5-inch hose, an S wand, and a floor brush. The net weight is 66 lbs and the gross weight is 99 lbs.
Using the TS1000 dust extractor is easy. First, connect the 38mm*5m hose to the suction inlet and attach the appropriate tool like the wand or floor brush. Plug it into a 120V power source. When you start your small grinder or handheld power tool, turn on the dust extractor to start collecting dust. Make sure to use the continuous folding bag for dust collection to keep the process dust-free. As for maintenance, regularly check the filters. The jet pulse filter cleaning system helps keep the filters clean, but you may need to inspect them occasionally. If the filters are very dirty, follow the manufacturer's instructions to clean or replace them. Also, be careful when handling the extractor due to its weight. Always unplug it before any maintenance work.
