Description

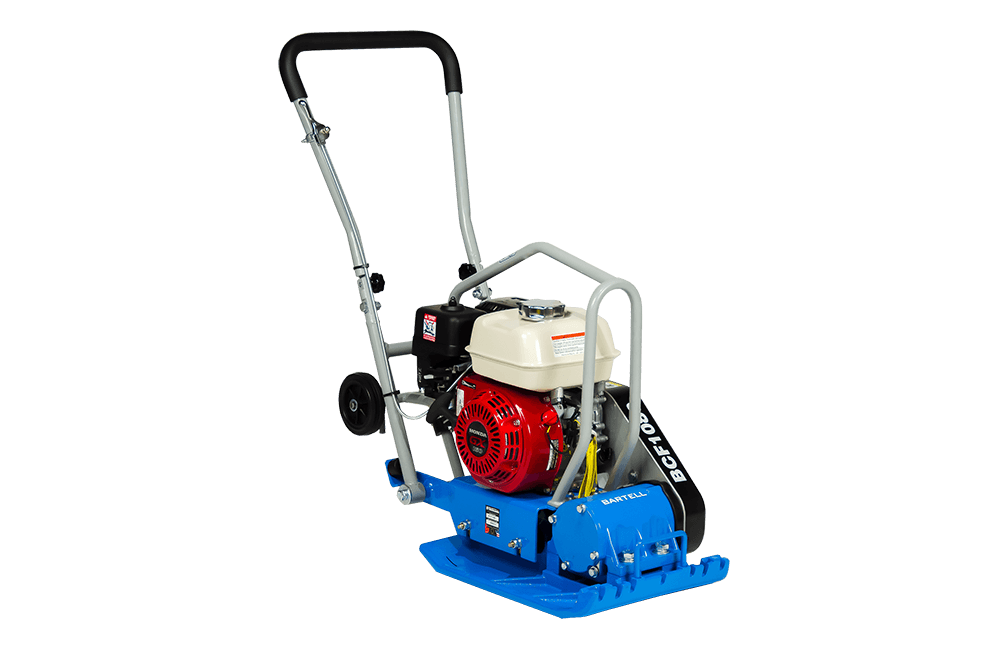

The Bartell BCF 1080 is the smallest compactor in our range, ideal for light-compaction jobs. Its compact size allows for easy movement around the job site. Our forward plates are innovative, powerful, and low-maintenance. Key features include robust throttle controls for convenient operation, retractable wheel kits for effortless equipment transportation, lifting bales for moving in difficult terrains, a straight-edge plate design for compaction close to edges, sealed belt guards to keep rocks out and ensure proper cooling, and water tanks (standard on BCF1570 and BCF2150 models) to prevent asphalt sticking. Technical specs: Powered by a Honda GX160 engine with 4.8hp (3.6kW) output, it has a compaction force of 2381 lbf, 10.5 kN, 1080 kgf, a max travel speed of 85'/min (25m/min), width of 16' (406mm), height of 23' (584mm), length of 28' (711mm), weight of 132lbs (60kg), a plate size of 14' x 22', and a steel base material.
Using the Bartell BCF 1080 Plate Compactor is easy. First, make sure the engine is properly fueled and the controls are in the right position. Start the engine following the Honda GX160 engine's startup instructions. Use the throttle controls to adjust the speed and operation of the compactor. When moving the compactor to the job site, you can use the retractable wheel kits by flipping them down. If the site is hard to reach by wheel, use the lifting bales. For edge compaction, take advantage of the straight - edge plate design. If you're using the BCF1570 or BCF2150 models, fill the water tank to prevent asphalt from sticking. Remember to keep the sealed belt guards clean to avoid any belt - related issues. Regularly check the engine oil, air filter, and spark plug as part of maintenance. Also, make sure to store the compactor in a dry place when not in use.
