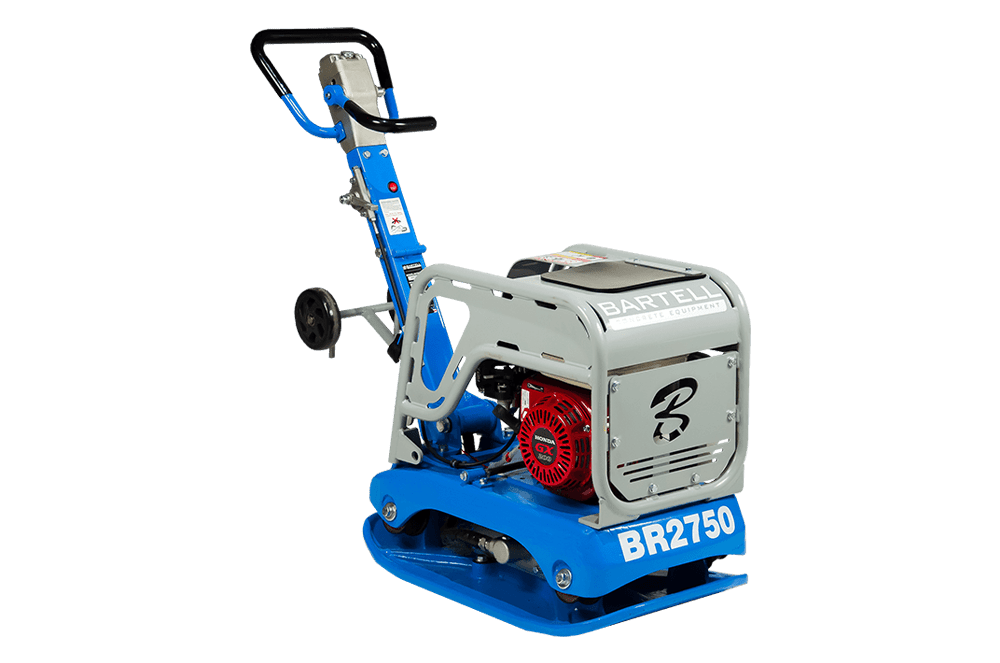

BR2750 Reversible Compactor

The Bartell BR2750 Reversible Plate Compactor is a top - notch choice for various compaction tasks. With its versatility and ideal size, it can handle different job requirements. It features a high - quality construction that ensures durability. The hydraulic reversing mechanism offers flexible maneuverability, enabling forward, backward, and precise spot compaction. The cast aluminum throttle lever is professional, strong, and long - lasting for tamping. The new closed - style frame provides enhanced protection for the engine and guide hook. The cast aluminum belt cover extends the lifespan of the clutch and engine. Ductile iron bases add to the strength and durability of the machine. There are also optional extension plates and urethane mat options. The engine is a Honda GX200 with a power output of 5.5 Hp (4.1 Kw). It has a width of 17 inches (430 mm), a height of 36 inches (920 mm), a length of 45 inches (1130 mm), and weighs 353 lbs (160 kg). It delivers a compaction force of 6070 lbf, 27 kN, 2753 kgf and has a max travel speed of 82 ft/min, 25 m/min.

Using the Bartell BR2750 Reversible Plate Compactor is easy. First, make sure the engine is fueled up with the right type of gasoline. Start the engine following the Honda GX200's starting instructions. Once it's running, you can use the hydraulic reversing mechanism to move the compactor forward or backward as needed for your compaction job. For precise compaction in specific spots, use the same mechanism to position the machine accurately. When using the compactor, wear appropriate safety gear like safety glasses and ear protection. Don't operate it on uneven or unstable ground to avoid tipping. After each use, clean the machine to remove any dirt or debris. Check the belt cover and throttle lever for any signs of wear. Regularly change the engine oil as recommended by Honda for the GX200 engine. If you choose to use the optional extension plates or urethane mats, make sure they are properly attached before starting the machine.
