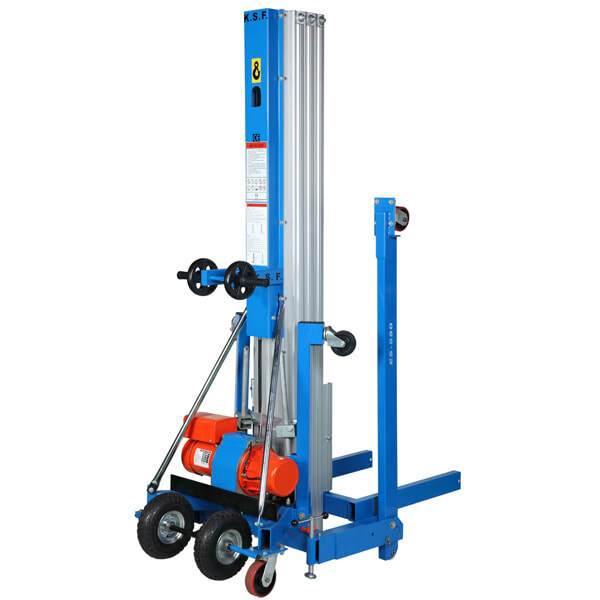

Cargo Lifter ES-550 | ES-700 | ES-850

The Cargo Lifter series offers electric - powered material lifters with optional attachments, perfect for various material handling tasks.

The Cargo Lifter series, along with its optional attachments, is ideal for HVAC and electrical contractors, industrial maintenance, steel frame erection, and facilities maintenance. It's easy for one person to move and operate. With folding legs, it can be easily maneuvered on - site and set up quickly. These lifters have an impressive 660 - lb load capacity and feature an anti - fall system on the mast to protect the operator from over - extending. The package includes straight forks, and the pipe cradling fork is optional.

Model	ES - 550	ES - 700	ES - 850
Basic Height	217 cm (85')	217 cm (85')	217 cm (85')
Lifting Height (Forks Up)	498 cm (16'4')	664 cm (23'5')	816 cm (26'9')
Lifting Height (Forks Down)	553 cm (18'2')	716 cm (23'6')	871 cm (29'7')
Load Capacity - 15' from boom	300 kg (660 LBS)	300 kg (660 LBS)	300 kg (660 LBS)
Load Capacity - 27' from boom	250 kg (551 LBS)	200 kg (440 LBS)	200 kg (440 LBS)
Fork Dimensions	64 x 56 cm (25' x 22')	64 x 56 cm (25' x 22')	64 x 56 cm (25' x 22')
Ground Clearance (Forks Up)	0 cm (0')	0 cm (0')	0 cm (0')
Ground Clearance (Forks Down)	58 cm (23')	58 cm (23')	58 cm (23')
Machine Weight	198 kg (437 LBS)	219 kg (482 LBS)	240 kg (529 LBS)
Basic Dimensions (Stowed)	90 x 76 cm (35' x 30')	90 x 76 cm (35' x 30')	90 x 76 cm (35' x 30')
Basic Dimensions (Operating)	216 x 170 cm (85' x 67')	216 x 170 cm (85' x 67')	216 x 170 cm (85' x 67')
Shipping Size	117 x 78 x 231 cm (46' x 30' x 90')	117 x 78 x 231 cm (46' x 30' x 90')	117 x 78 x 231 cm (46' x 30' x 90')

Using the Cargo Lifter is a breeze. First, unfold the legs and set up the machine on a flat and stable surface. Then, attach the straight forks that come with the package. If you need to handle pipes, you can attach the optional pipe cradling fork. To lift materials, simply operate the controls to raise the forks to the desired height. Remember, the maximum load capacity is 660 lbs, so don't overload it. When the mast is extended, the anti - fall system will protect you from over - extending. After use, fold the legs and store the lifter in a dry place. Regularly check the mast for any signs of wear and tear, and keep the forks clean. Also, make sure the electrical components are in good condition to ensure safe and efficient operation.
