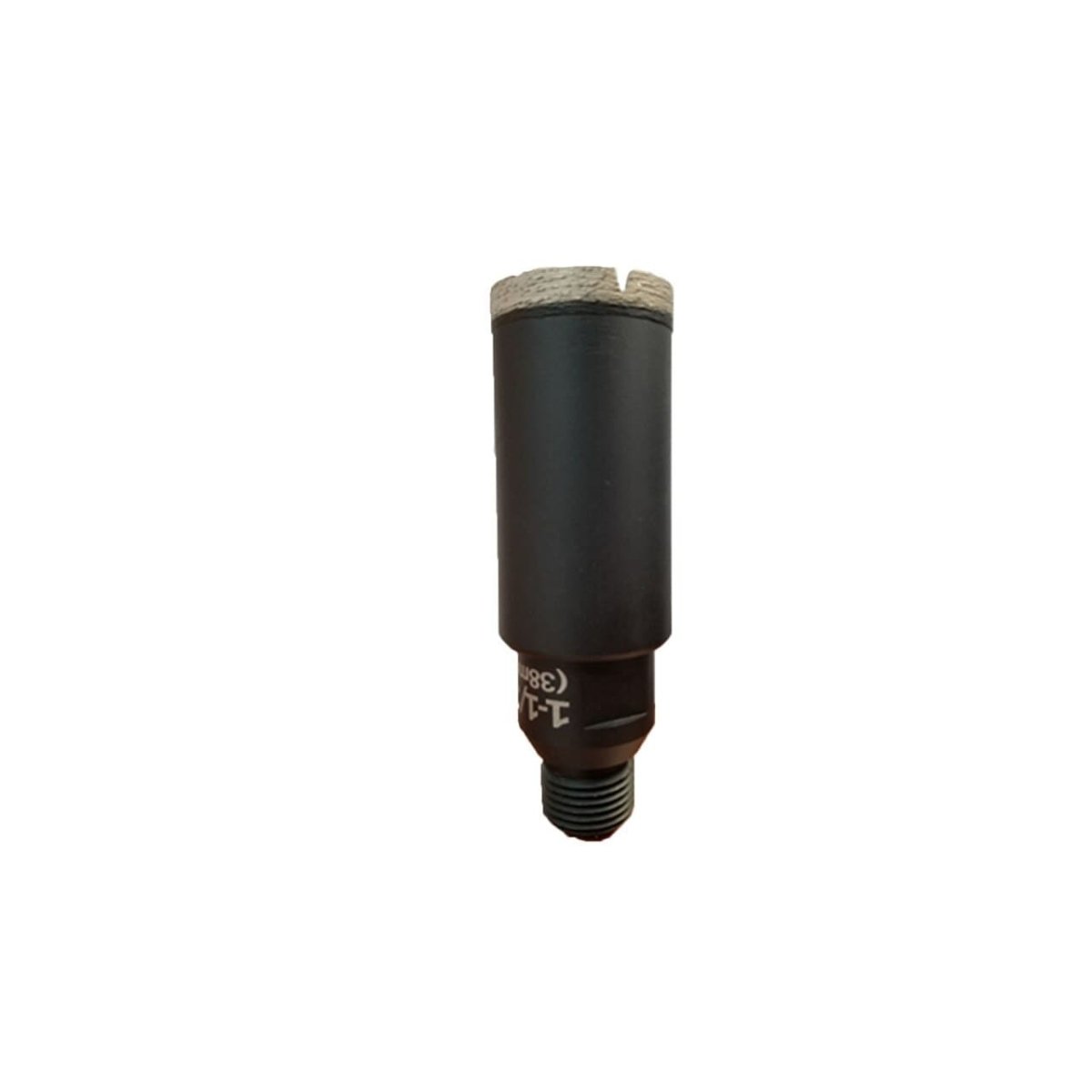

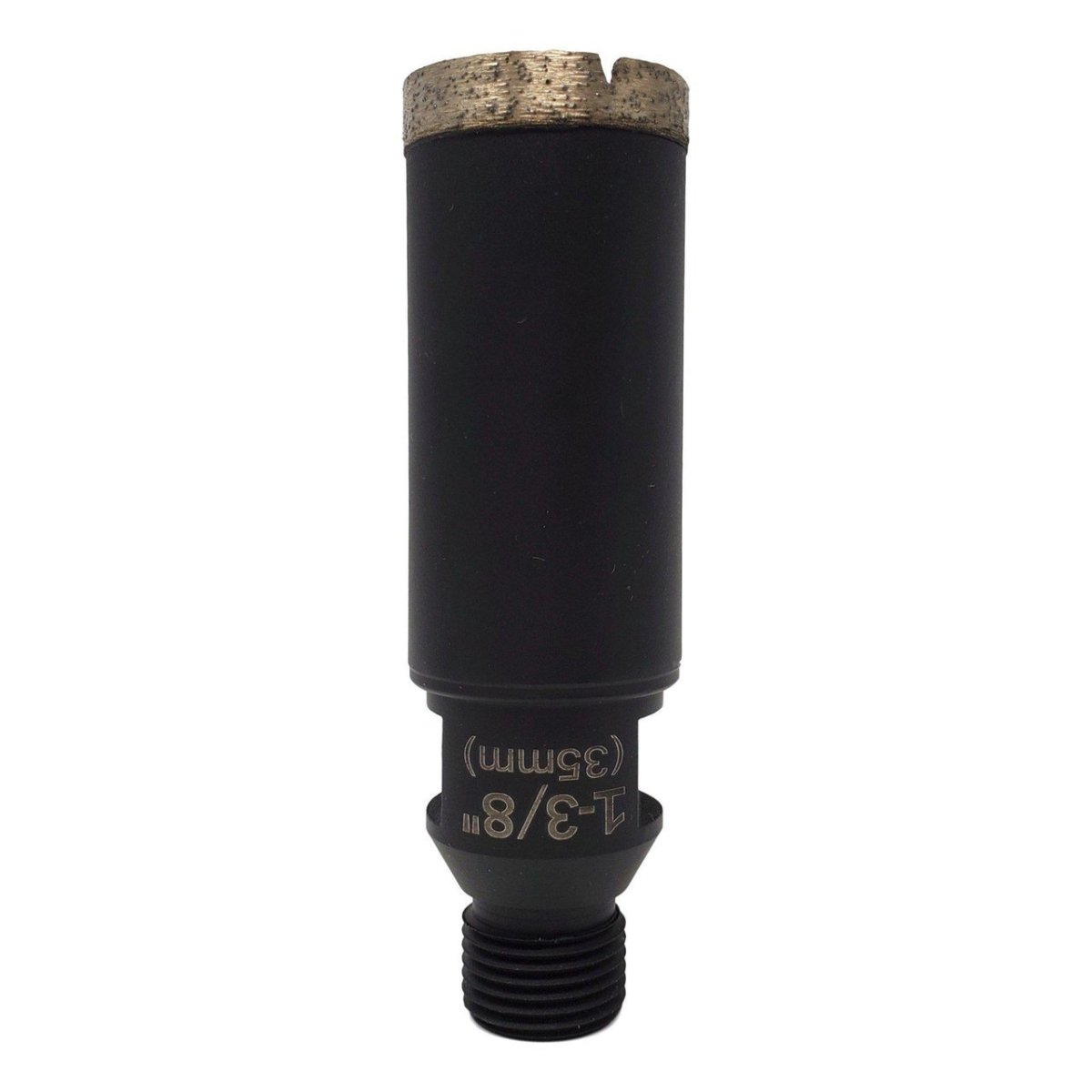

CNC Thin Wall Core Drill Bit

Top - notch CNC thin - wall core drill bit designed for natural and engineered stone. It offers precise drilling performance.

Check out the detailed specifications below:

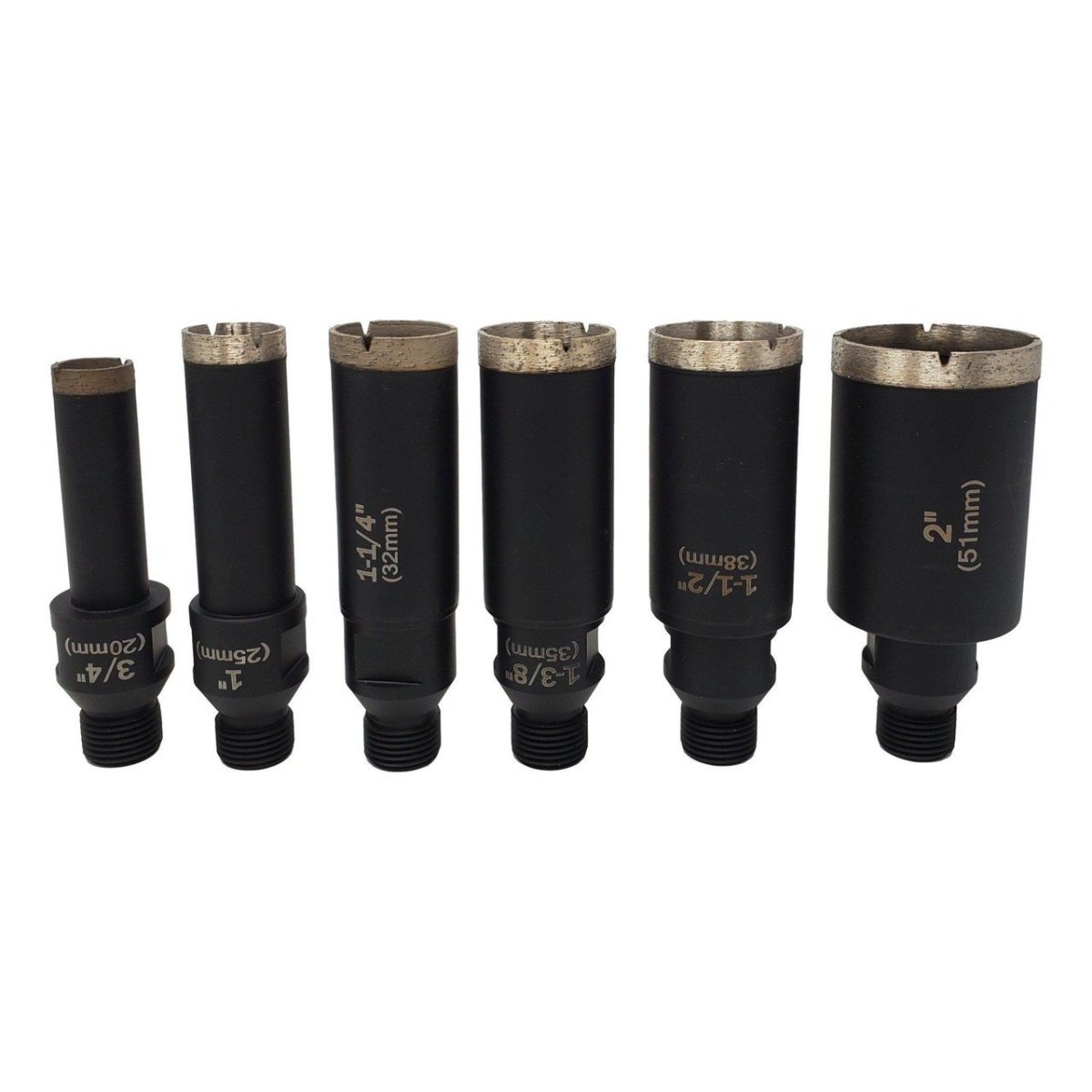

Model	Diameter	Width	Thickness	Grit Grade
DBH20	3/4'(20mm)	8mm	1.5mm	Standard
DBH25	1'(25mm)	8mm	1.5mm	Standard
DBH32	1 - 1/4'(32mm)	8mm	1.5mm	Standard
DBH35	1 - 3/8'(35mm)	8mm	1.5mm	Standard
DBH38	1 - 1/2'(38mm)	8mm	1.5mm	Standard
DBH51	2'(51mm)	8mm	1.5mm	Standard

Using this CNC thin - wall core drill bit is easy. First, choose the right model according to the diameter you need. Then, attach it to your CNC machine properly. When drilling, make sure to keep a steady hand and let the drill do its job at a suitable speed. As for precautions, always wear safety goggles to protect your eyes from debris. Don't apply too much pressure during drilling as it may damage the drill bit. For maintenance, after each use, clean the drill bit with a brush to remove any stone dust. Store it in a dry place to prevent rusting. With proper use and care, this drill bit will serve you well for a long time.
